Bright Tangerine KASBAH Atman Universal Shoulder Rig & Handle Kit (BUD 2-Axis VCT-14)

Product #120983 | SKU B6000.0012 | Bright Tangerine
In Stock with Supplier Usually ships in 1 - 2 weeks what does this mean?
Our Price $3,649 AUD
In Stock with Supplier Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $4.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • Low-Profile VCT-14 Shoulder Rig
  • Two-Axis Sliding Shoulder Pad
  • VCT Mounting Kit & Universal BUD Plate
  • 15/19mm Studio Handgrip Kit
  • Pair of 15mm Titanium Support Rods

Description

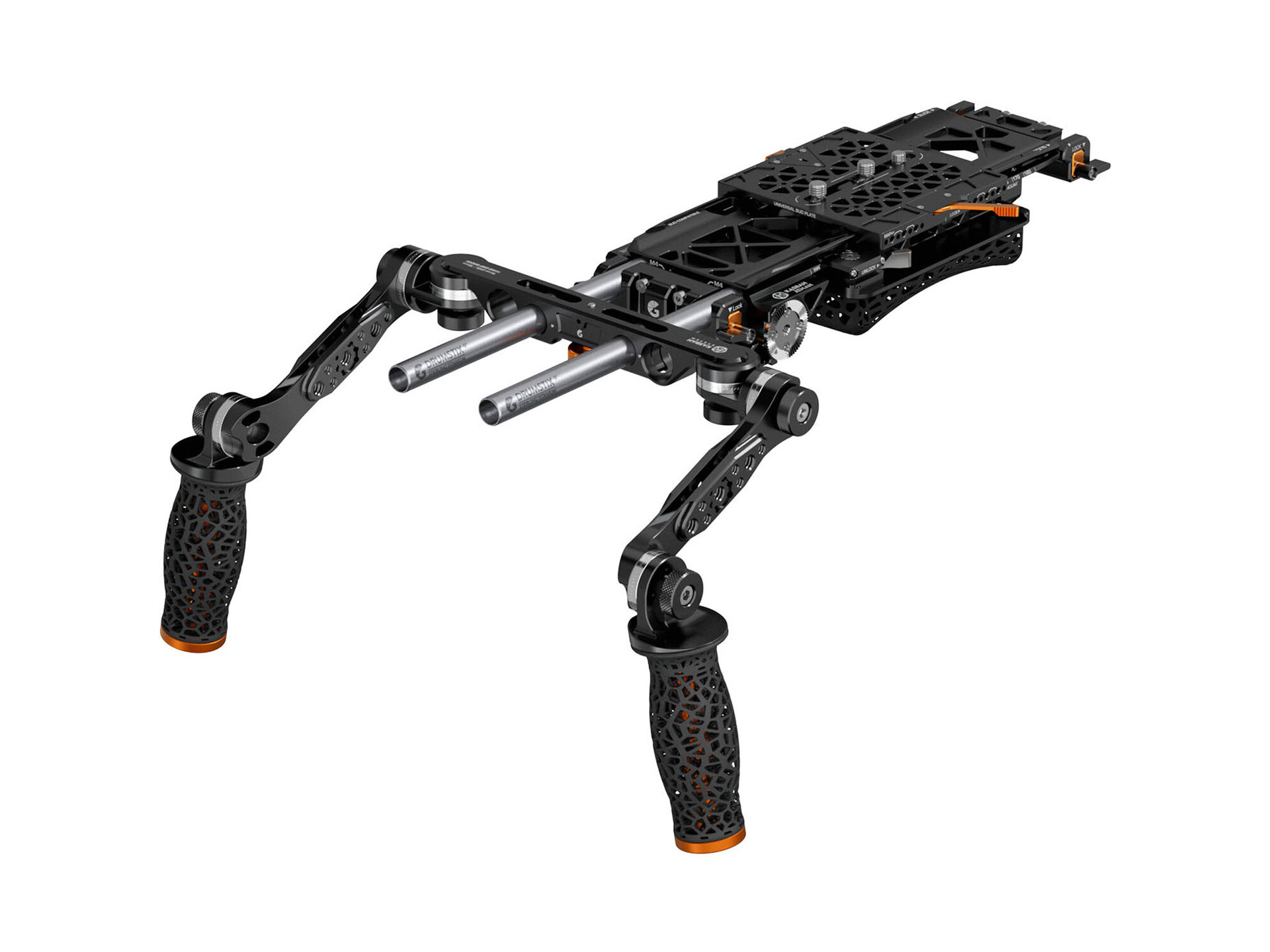

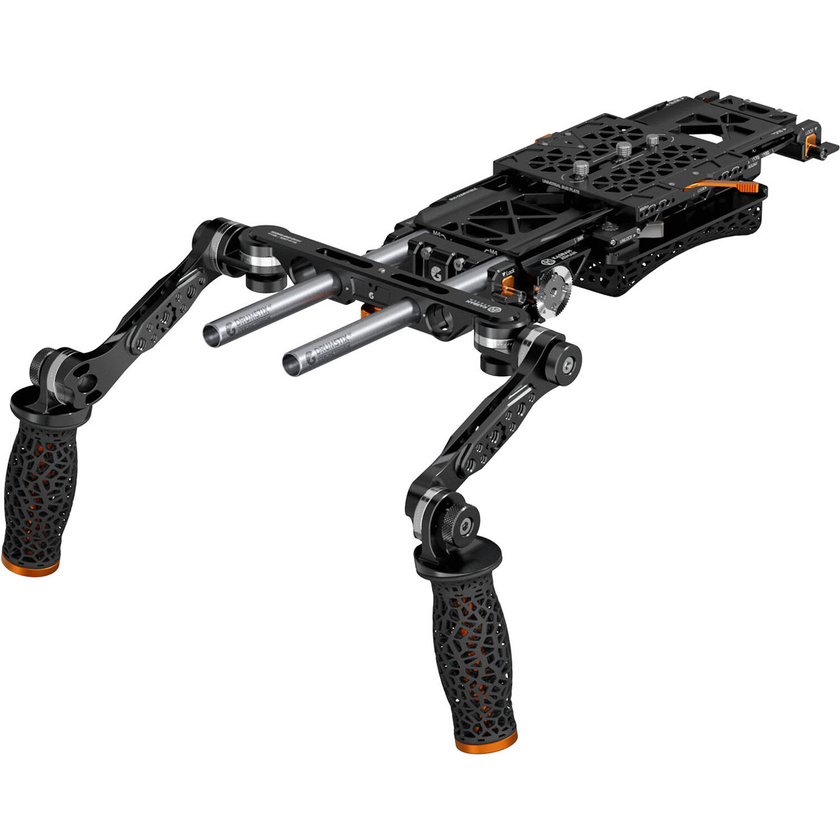

The Bright Tangerine KASBAH Atman Universal Shoulder Rig & Handle Kit (BUD 2-Axis VCT-14) is a comprehensive universal shoulder rig kit. This kit includes a KASBAH shoulder rig frame with a sliding Shoulder Pad and articulating Hand Grips on a 15mm bracket, along with a rear 15mm rod mount and Universal BUD Plate.

  • Dual-Axis Travel – The Two-Axis Kit allows you to slide the shoulder pad forwards and backwards.
  • Unique Resin Matrix – The material in the shoulder pad and handgrips is comfortable and breathable.
  • VCT-14 Compatible – The integrated VCT-14 tripod mount allows you to quickly mount the entire shoulder rig.
  • Universal – The KASBAH Ātman can be used with any camera system.
  • 15mm LWS Design – The rig includes height-adjustable brackets at the front and back for 15mm support rods.

Specifications

Bright Tangerine KASBAH Ātman Shoulder Rig Frame
Support Type Baseplate, Shoulder Support
Grip Type No
Camera Compatibility ARRI ALEXA 35, ARRI ALEXA Mini, ARRI ALEXA Mini LF
Rod Standard 15 mm LWS / 60 mm Spacing
Battery Plate Type No
Accessory Mounting 2x&nbspM4 Female Thread
Tripod Mounting No
Rod Ports 2x 15 mm Rod Port
Shoe Mounting No
Rosettes 2x ARRI Rosette w/ M6 Female Thread
Dimensions 11.8 x 4.5 x 1.7" / 30 x 11.4 x 4.4 cm
Weight 15.7 oz / 446 g
Bright Tangerine Wide Two-Axis Pad for KASBAH Ātman Shoulder Rig
Compatibility Bright Tangerine KASBAH Ātman Shoulder Rig Frame
Mounting 1x KASBAH Quick Release
Colour Black
Dimensions 5.1 x 1.6 x 1.6" / 13 x 4 x 4 cm
Weight 6.7 oz / 190 g
Bright Tangerine KASBAH Shoulder Rig VCT Mounting Set
Compatibility Bright Tangerine Ātman Shoulder Rig Frame
Mounting 5x Mounting Screw
Colour Black / Silver
Material of Construction Stainless Steel
Dimensions 3.1 x 2.5 x 1.9" / 7.9 x 6.3 x 4.7 cm
Weight 7.1 oz / 200 g
Bright Tangerine KASBAH Rear 15mm LWS Dual-Rod Mount
Colour Black
Mounting Accessory Mount: 2x Built-In M4 Male Screw
Rod Standard 15 mm LWS / 60 mm Spacing
Rod Ports 2x 15 mm Rod Port
Dimensions 3.9 x 3.9 x 3.9" / 10 x 10 x 10 cm
Weight 3.5 oz / 100 g
Bright Tangerine Universal BUD Plate
Compatibility Universal
Mounting 1x Dovetail
2x 3/8"-16 Screw
1x 1/4"-20 Screw
Colour Black
Material of Construction CNC Aluminium
Dimensions 5.7 x 4.3 x 0.8" / 14.5 x 11 x 2 cm
Weight 5.3 oz / 150 g
Bright Tangerine KASBAH 15mm LWS/19mm Studio Handle Kit
Rotation Yes
Built-In Controls No
Attachment Method Attaches via 4x Rod Ports
Compatibility Attaches onto Cinema Camera/DSLR/Mirrorless Support
Rod Standard 15 mm LWS / 60 mm Spacing, 19 mm Studio / 104 mm Spacing
Rod Ports 4x 19 mm Rod Port
Accessory Mounting Multiple Anti-Twist 1/4"-20 Thread
Multiple ARRI Anti-Twist 3/8"-16 Thread
Shoe Mounting No
Rail Mounting No
Materials Aluminium, Rubber, Steel
Rods (9", Pair)
Diameter 15 mm
Length 9" / 22.86 cm
Material Titanium
Thread Type No
Number of Rods 2
Weight 1.59 oz / 45 g

In The Box

  • Bright Tangerine KASBAH Ātman Shoulder Rig Frame
  • Bright Tangerine Wide Two-Axis Pad for KASBAH Ātman Shoulder Rig
  • Bright Tangerine KASBAH Shoulder Rig VCT Mounting Set
  • Bright Tangerine KASBAH Rear 15mm LWS Dual-Rod Mount
  • Bright Tangerine Universal BUD Plate
  • Bright Tangerine KASBAH 15mm LWS/19mm Studio Handle Kit
  • Bright Tangerine Drumstix 15mm Sterling Titanium Support Rods (9", Pair)
