Drive two 8K displays or up to four high-resolution displays or projectors—up to 5K60—from a single Matrox Luma A310 Graphics Card. Designed and built for reliability, stability, and ease of deployment, these fanless low-profile, single slot PCI Express® 4.0 x8 boards with four Mini DisplayPort™ 2.1 connectors deliver superior graphics performance for today’s 5K HDR applications. The LUMA A310 graphic cards are ideal for multi-screen desktops, workstations, and digital signage players in commercial and critical environments. Matrox LUMA Series is powered by Intel® Arc™ graphics.

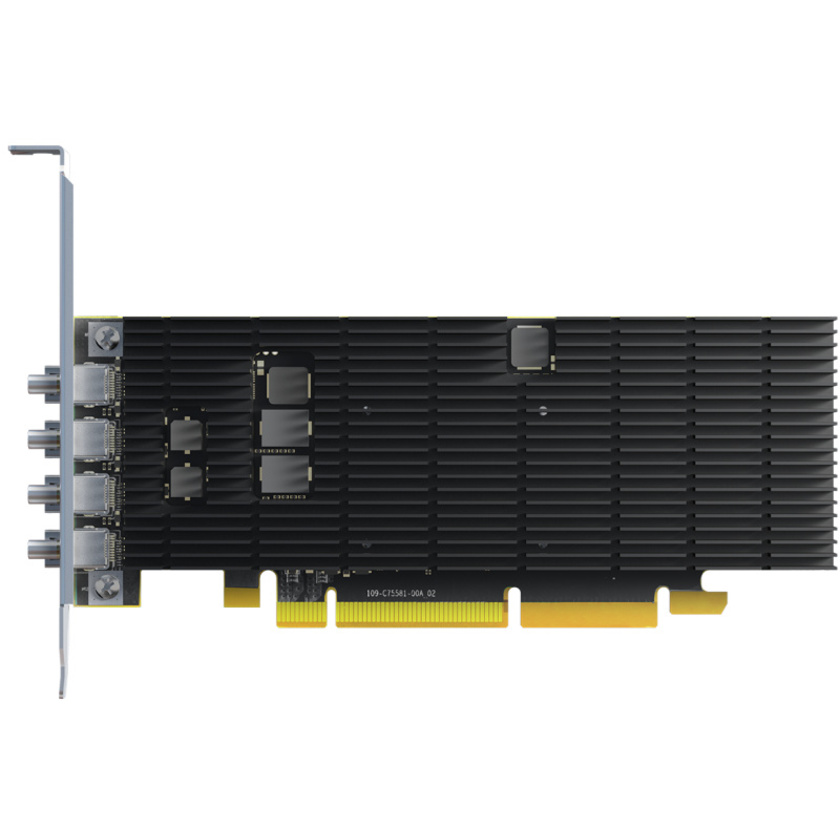

Matrox Luma A310 Graphics Card
This product is no longer available
Features
- 8Kp60 HDR support
- 5K resolution support
- Quad output
- HDCP compliant
- Low-profile form factor
Description
Specifications
| Bus type | PCIe 4.0 x16 (x8 electrical) |
| Number of video outputs | 4 |
| Video output connectors | 4x Mini DisplayPort (secure) |
| DisplayPort specification | 2.1 UHBR10 |
| Maximum number of cards in a system | 4 |
| Maximum resolution | 2x 8K60/5K120 or 4x 5K60 HDR 12b |
| Bit depth and color space | Up to 36 bpp (Bits per Pixel) YCbCR 4:4:4 YCbCR 4:2:0 RGB |
| Memory | 4GB GDDR6 |
| GPU | Intel® ArcTM A310 |
| Multi-stream audio | High-definition audio streams on four digital ports simultaneously |
| DisplayPort features | VESA DSC 1.2a and Adaptive Sync |
| HDCP compliance | 2.3 |
| Supported graphics API | DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI and OpenVINO |
| Hardware video encode/decode | H264/H265/AV1/VP9 |
| Cooling | Passive |
| Power consumption | 30W |
| Operating temperature | 0 to 45 oC (32 to 113 oF) |
| Form factor | Low Profile Single Slot |
| Dimensions | Length: 16.76 cm (6.6") Height: 6.86 cm (2.7") |
| Bracket | Standard Height (Mounted) Low Profile (in the box) |
In The Box
- Matrox Luma A310 Graphics Card
Reviews
(no ratings yet)Details
- Product: Matrox Luma A310 Graphics Card
- Manufacturer: Matrox
- Model: LUMA-A310
- SKU: LUMA-A310
- RM Product #: 111022
