The AC Infinity CloudPlate T1-N Rack Cooling Fan System Kit is an intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up one rack units of space (1U). Each aluminum frame is anodised with a light-brush finish, then the corners CNC-machined and edges chamfered for a high-end professional appearance. This model holds six custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE and RoHS. This complete kit includes the 1U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.

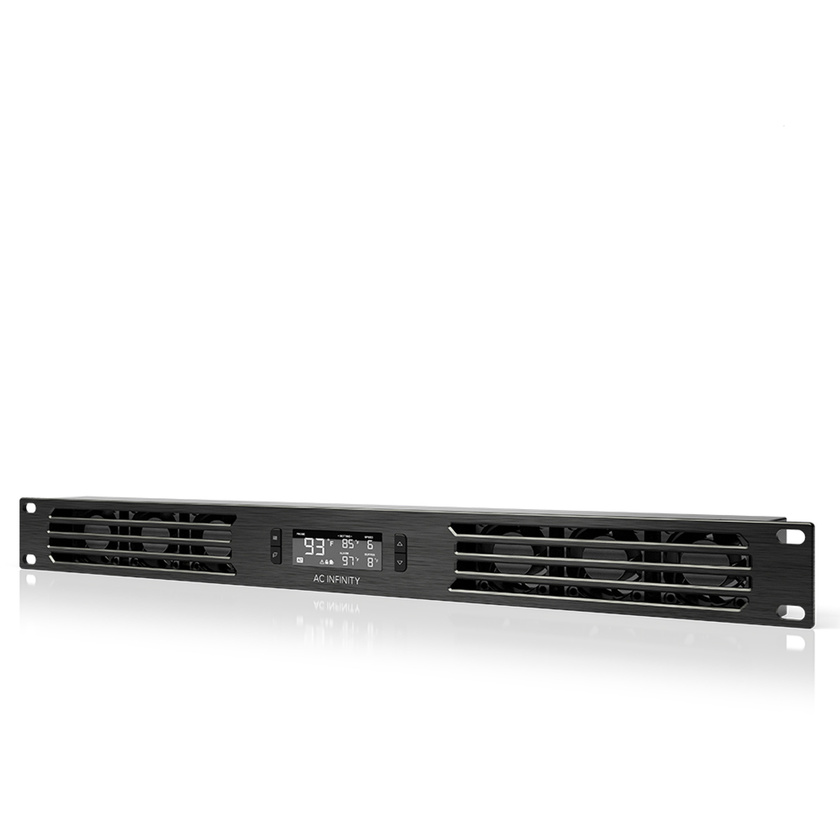

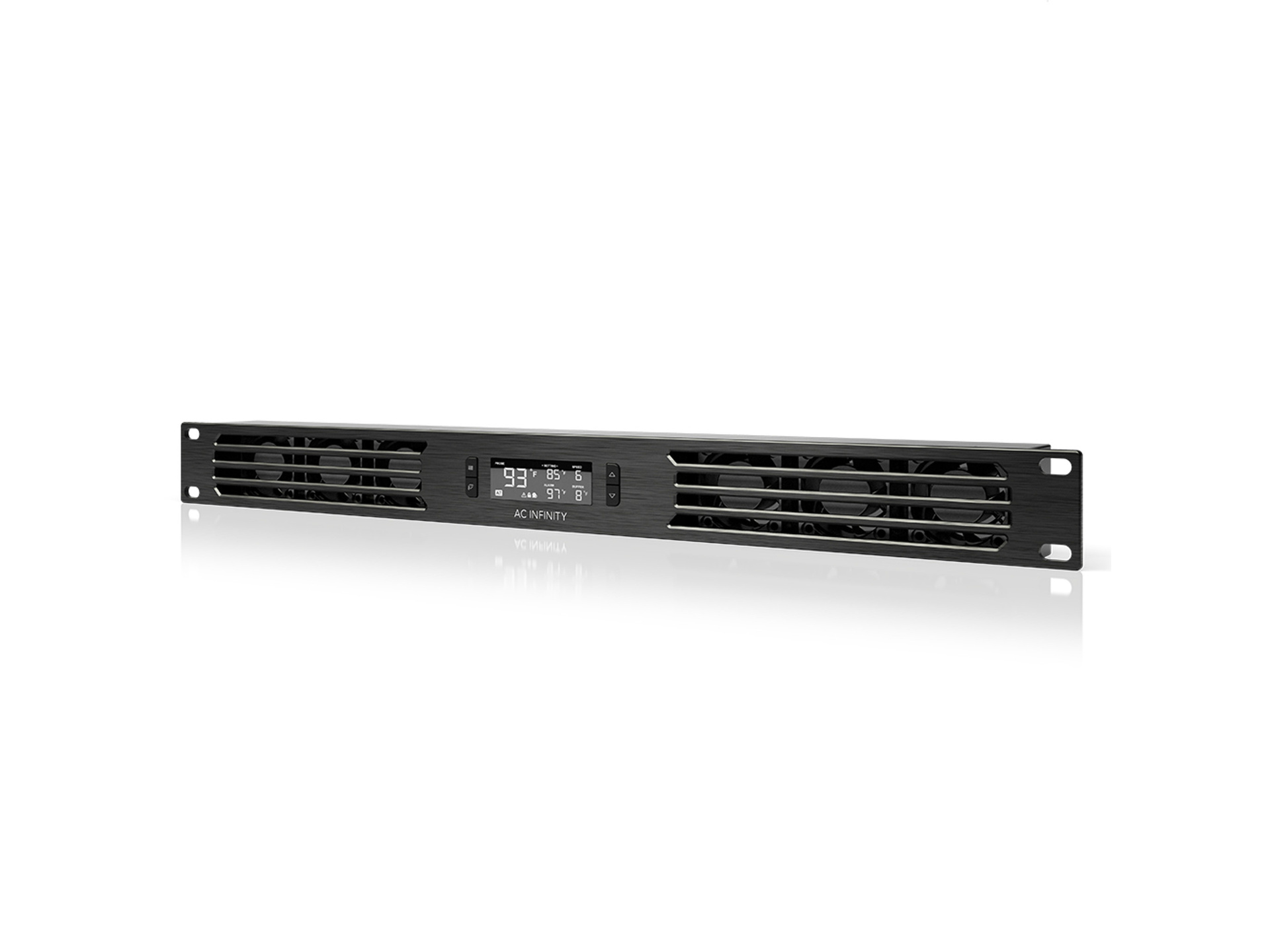

AC Infinity CloudPlate T1-N Rack Cooling Fan System Kit (Intake)
This product is no longer available
Features
- Combats overheating, performance issues
- Programmable thermostat controller
- Automated speed control
- Premium anodised aluminum construction
- 1U rack size
Description
Specifications
| Total Dimensions | 19.0 x 1.75 x 1.5 in. (48.2 x 4.4 x 3.8 cm) |
| Rack Mount Size | One Rack Unit (1U) |
| Screw Hole Size | Ø 6.1 x 9.0 mm Obround |
| Hole to Hole Distance | 46.4 x 3.175 cm |
| Display Size | 4.7 x 1.9 cm |
| Design | Intake |
| Total Airflow | 20 to 60 CFM |
| Total Noise | 8 to 28 dBA |
| Static Pressure | 2.56 mm-H2O |
| Operating Voltage | 12V DC |
| Power | 8 W |
| Current | 0.67 A |
| Wall Adapter Input | 100 to 240V AC |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 158°F |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
In The Box
- AC Infinity CloudPlate T1-N Rack Cooling Fan System Kit
Reviews
(no ratings yet)Details
- Product: AC Infinity CloudPlate T1-N Rack Cooling Fan System Kit (Intake)
- Manufacturer: AC Infinity
- Model: AI-CPT1KT
- SKU: AI-CPT1-NKT
- RM Product #: 113934
