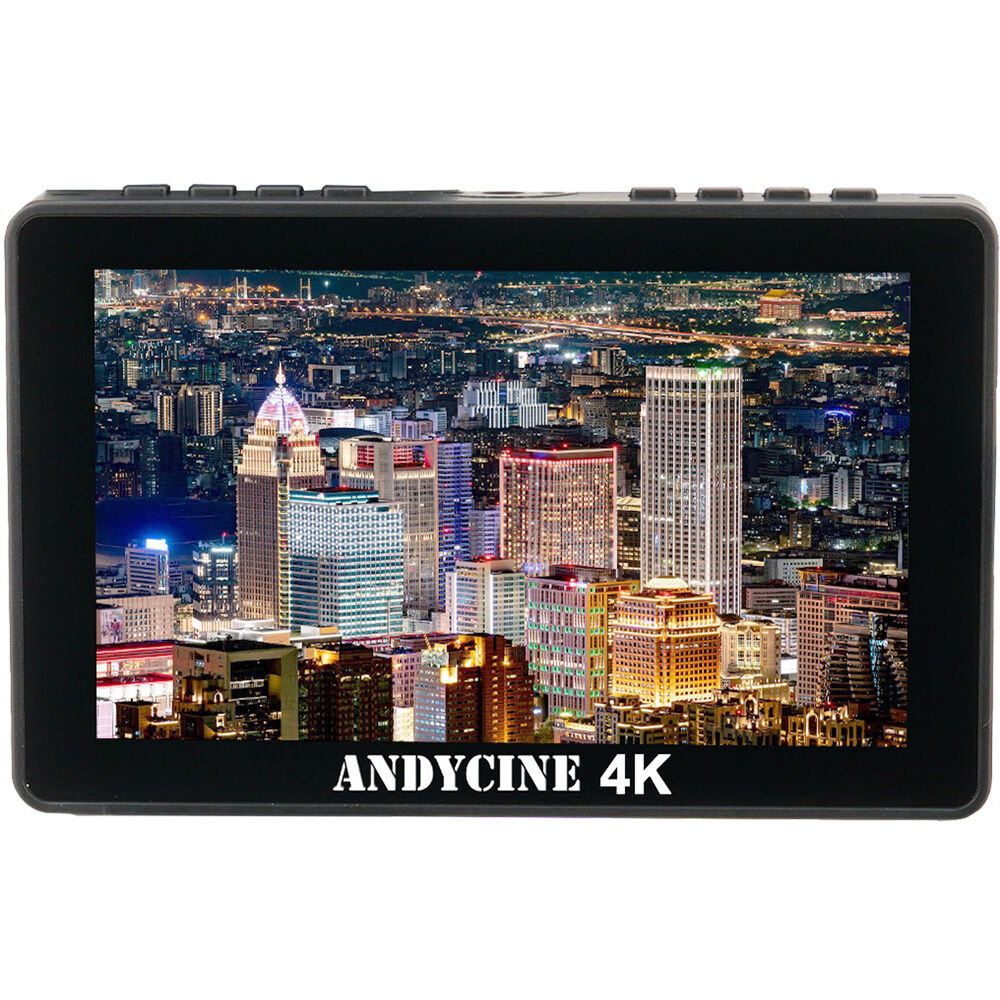

ANDYCINE A6 Pro 5.5" Touchscreen HDMI Monitor with L-Series/Hollyland Mars RX Install Kit

Product #103987 | SKU A6 PRO | Andycine
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 5.5" HDMI 1920 x 1080 Touchscreen
  • 3D LUT Import via SD Card
  • Instal Kit for Hollyland Mars Receiver
  • Supports up to DCI 4K Video Input
  • 1000:1 Contrast, 500 cd/m² Brightness
  • Includes L-Series Battery Plate

Description

4K HDMI Input & Loop Output

The ANDYCINE A6 Pro 5.5" Touchscreen HDMI Monitor with L-Series/Hollyland Mars RX Install Kit has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It has the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

360° Rotation Convenient Mounting - Tilt Arm

The Andycine A6 PRO monitor comes with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

Flexible Install Both on Camera and Gimbal

The A6 PRO features standard 1/4" mount points (top, bottom, right, middle back) for attaching to cameras and rigs. Not only can you install it with the tilt arm, but also you can mount it onto a handheld stabiliser, or securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

Key Features
  • 5.5" HDMI 1920 x 1080 Touchscreen
  • 3D LUT Import via SD Card
  • Instal Kit for Hollyland Mars Receiver
  • Supports up to DCI 4K Video Input
  • 1000:1 Contrast, 500 cd/m² Brightness
  • Includes L-Series Battery Plate

Specifications

Display
Panel Type IPS-Type LCD
Display Size 5.5" / 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 160° (80/80)
Vertical: 160° (80/80)
Touchscreen Yes
Maximum Brightness 500 cd/m2
Contrast Ratio 1000:1
Dot Pitch 0.0639 x 0.0213 mm
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
HDR Compatibility None
Pixels Per Inch (ppi) 440 ppi
Colour Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Cheque Field, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Zebra
Video I/O 1 x HDMI Input
1 x HDMI Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel (12 VDC) Input
1 x Barrel (8.4 VDC) Output
1 x USB-C (5 VDC) Input
Other I/O 1 x USB-B 2.0 Input
Media/Memory Card Slot None
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i
Gamma Curve Rec709
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series (Interchangeable Mount)
Power Consumption 9 W
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature 12 to 87°F / -20 to 55°C
Storage Temperature -22 to 140°F / -30 to 60°C
General
Dimensions 5.8 x 3.7 x 0.8" / 148 x 93 x 20 mm, Excluding Battery Plate
5.8 x 3.7 x 1.3" / 148 x 93 x 34.2 mm, Including Battery Plate
Weight 0.5 lb / 245 g

In The Box

  • ANDYCINE A6 Pro 5.5" Touchscreen HDMI Monitor with L-Series/Hollyland Mars RX Install Kit
  • Micro-HDMI Cable
  • Sun Hood
  • Sun Hood Frame
  • Tilt Arm
  • USB Type-A to Type-C Adapter

Reviews

0.0 (no ratings yet)

Details

  • Product: ANDYCINE A6 Pro 5.5" Touchscreen HDMI Monitor with L-Series/Hollyland Mars RX Install Kit
  • Manufacturer: Andycine
  • Model: A6 PRO
  • SKU: A6 PRO
  • RM Product #: 103987
  • Screen Size: 5.5"
  • Screen Resolution: 1920 x 1080
