This compact, easy to use BOYA BY-M1LV-D Compact Wireless Microphone System provides vloggers, TikTok and YouTube personalities, and mobile journalists with a compact, wireless microphone system that delivers for hands-free recording at a line-of-sight distance of up to 100m. The system includes a clip-on transmitter with integrated microphone, a windshield, and a smartphone-compatible receiver with a Lightning connector.

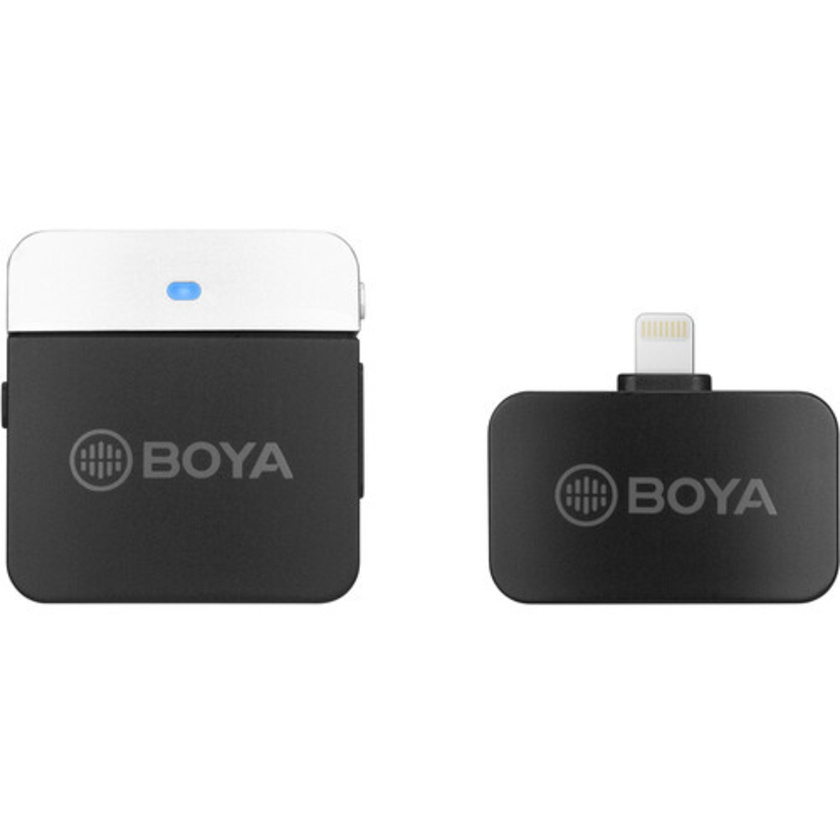

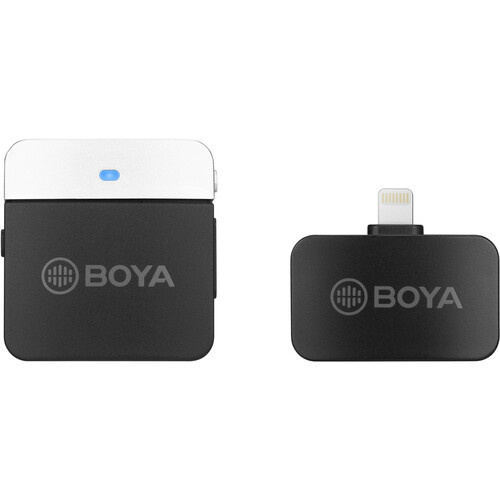

BOYA BY-M1LV-D Compact Wireless Microphone System with Lightning Connector for iOS Devices (2.4 GHz)
This product is no longer available
Features
- For Vlogging, YouTube, and Journalism
- For 1-Person Shoot with Lightning Device
- Miniature Clip-On Transmitter/Microphone
- Miniature Plug-In Receiver
- Easy Plug-and-Play Operation
- 6-Hour Built-In Rechargeable Battery
Description
Specifications
| System | |
| Wireless Technology | Digital UHF (2.4 GHz) |
| Included Transmitters | 1 x Clip-On with Microphone |
| Diversity | Non-Diversity |
| Max Operating Range | 100 m |
| Max Transmitters per Band | 1 |
| Built-In Recorder | No |
| Timecode Support | No |
| Control App Support | No |
| OS Compatibility | iOS |
| Encryption | None |
| Modulation | GFSK, SNR ≤70 dB |
| Receiver | |
| Receiver Type | Mobile Device-Mount |
| Antenna | PIFA |
| Number of Audio Channels | 1 |
| Audio I/O | None |
| Network I/O | None |
| USB/Lightning Connectivity | 1 x Lightning Male (Audio, Bus Power) |
| Power Requirements | Bus Power (Lightning) |
| Display & Indicators | 1 x LED (Sync) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 55°C |
| Dimensions | 38.2 x 23 x 14 mm |
| Weight | 10 g |
| Transmitter | |
| Transmitter Type | Clip-On with Microphone |
| RF Output Power | 3 mW |
| Audio I/O | 1 x 3.5 mm TRS Female Output |
| Pad | None |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Signal Processing | None |
| Frequency Response | 50 Hz to 8.5 kHz |
| Antenna | Internal |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 1 x Built-In Rechargeable (Included) |
| Approx. Battery Life | 6 Hours (Lithium Rechargeable) |
| USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
| Display & Indicators | 1 x LED (Battery Status, Multifunction, Mute, Recharging, Sync) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 55°C |
| Dimensions | 40 x 38.2 x 14 mm |
| Weight | 18 g |
| Microphone | |
| Microphone Type | Integrated |
| Sound Field | Mono |
| Polar Pattern | Omnidirectional |
| SNR | 70 dB |
| Equivalent Noise Level | 21.8 dB A-Weighted |
| Maximum SPL | 110 dB SPL |
| THD | None |
| Sensitivity | -39 dB |
In The Box
- BOYA BY-M1LV-D Compact Wireless Microphone System with Lightning Connector for iOS Devices (2.4 GHz)
- BY-M1LV-D-RX Receiver
- BY-M1LV-TX Transmitter
- Wind Shield for Transmitter/Microphone
- USB Type-C Cable
- Pair Pin
Reviews
(no ratings yet)Details
- Product: BOYA BY-M1LV-D Compact Wireless Microphone System with Lightning Connector for iOS Devices (2.4 GHz)
- Manufacturer: BOYA
- Model: BY-M1LV-D
- SKU: BY-M1LV-D
- RM Product #: 98262
- Warranty: 1 year manufacturer warranty
