The Belkin Thunderbolt 3 Dock Core brings the speed, high-definition and performance of Thunderbolt technology to Mac and Windows laptops. With all the power and versatility of Thunderbolt 3, plus ports to connect multiple peripherals to a Thunderbolt laptop, this dock is a streamlined way to create an expanded, high-performing desktop through a single tethered cable.

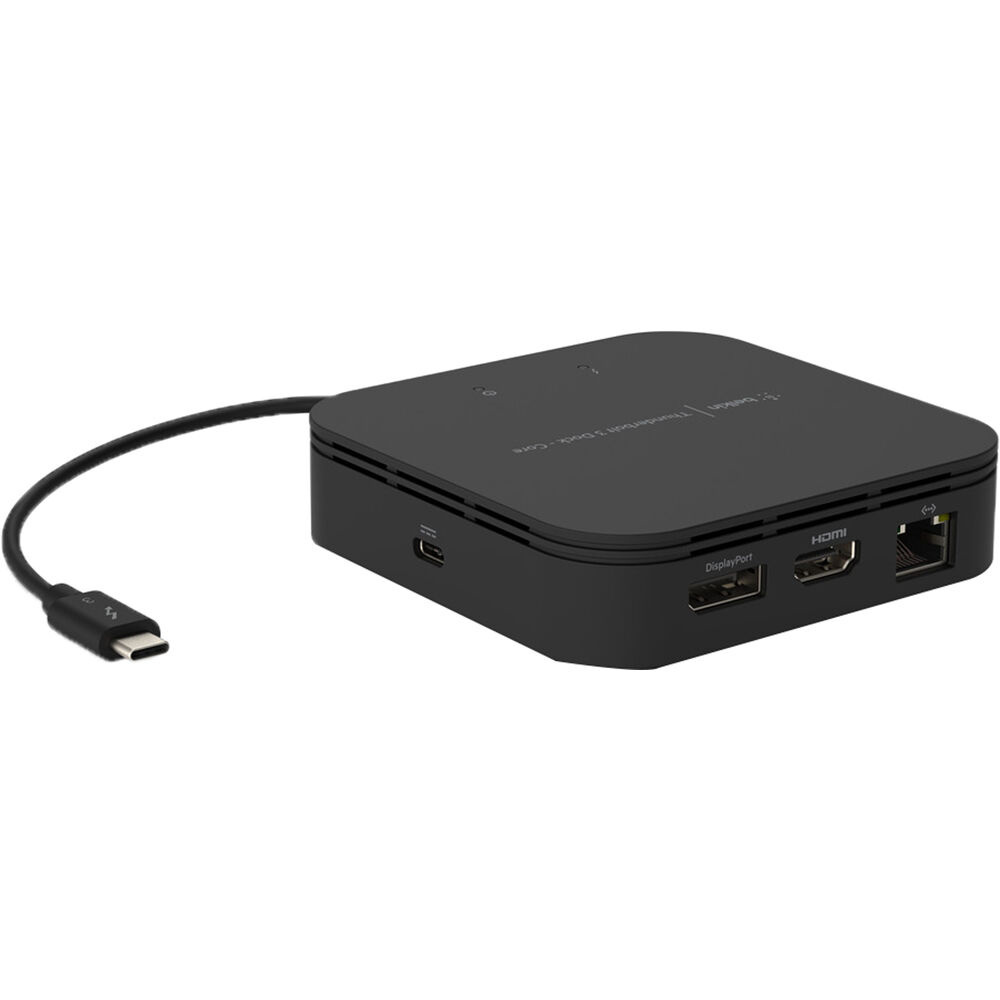

Belkin Thunderbolt 3 Dock Core
This product is no longer available
Features
- Thunderbolt 3 Host Connector
- 1 x USB 3.2 Gen 2 + 1 x USB 2.0 Type-A
- 1 x DisplayPort 1.4 + 1 x HDMI 2.0 Ports
- Gigabit Ethernet Port + 3.5mm Audio Port
- Supports 7680 x 4320 Resolution @ 30Hz
Description
Specifications
| Connections | |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 2.0 Type-A 1 x USB (Charging Only) Type-C |
| Thunderbolt | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| FireWire | None |
| Display | 1 x DisplayPort 1.4 (Female) 1 x HDMI 2.0 (Female) |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo |
| Memory Card Slots | None |
| Host Connections | |
| System Connection | 1 x Thunderbolt 3 Type-C Male |
| Connection Type | Integrated Cable |
| Interface Max Data Rate | 40 Gb/s |
| General | |
| Number of Displays Supported | 2 |
| Maximum Resolution Supported | 7680 x 4320 at 30 Hz (Single Display) 3840 x 1440 at 60 Hz (Dual Display) |
| Operating System Support | Windows, macOS/OS X |
| UASP Support | No |
| Monitor Stand Support | No |
| Power | |
| Power Source | AC Adapter, Bus Powered |
| Power Port | USB Type-C |
| Physical | |
| Cable Length | 20 cm |
| Lock Slot | No |
| Dimensions | 100 x 100 x 30 mm |
| Weight | 213.8 g |
In The Box
- Belkin Thunderbolt 3 Dock Core
Reviews
(no ratings yet)Details
- Product: Belkin Thunderbolt 3 Dock Core
- Manufacturer: Belkin
- Model: 4953743
- SKU: 4953743
- RM Product #: 97522
- Cable Connector: HDMI Female
- Cable Connector: DisplayPort Female
- Cable Connector: USB-C Male
- Cable Connector: USB-C Female
