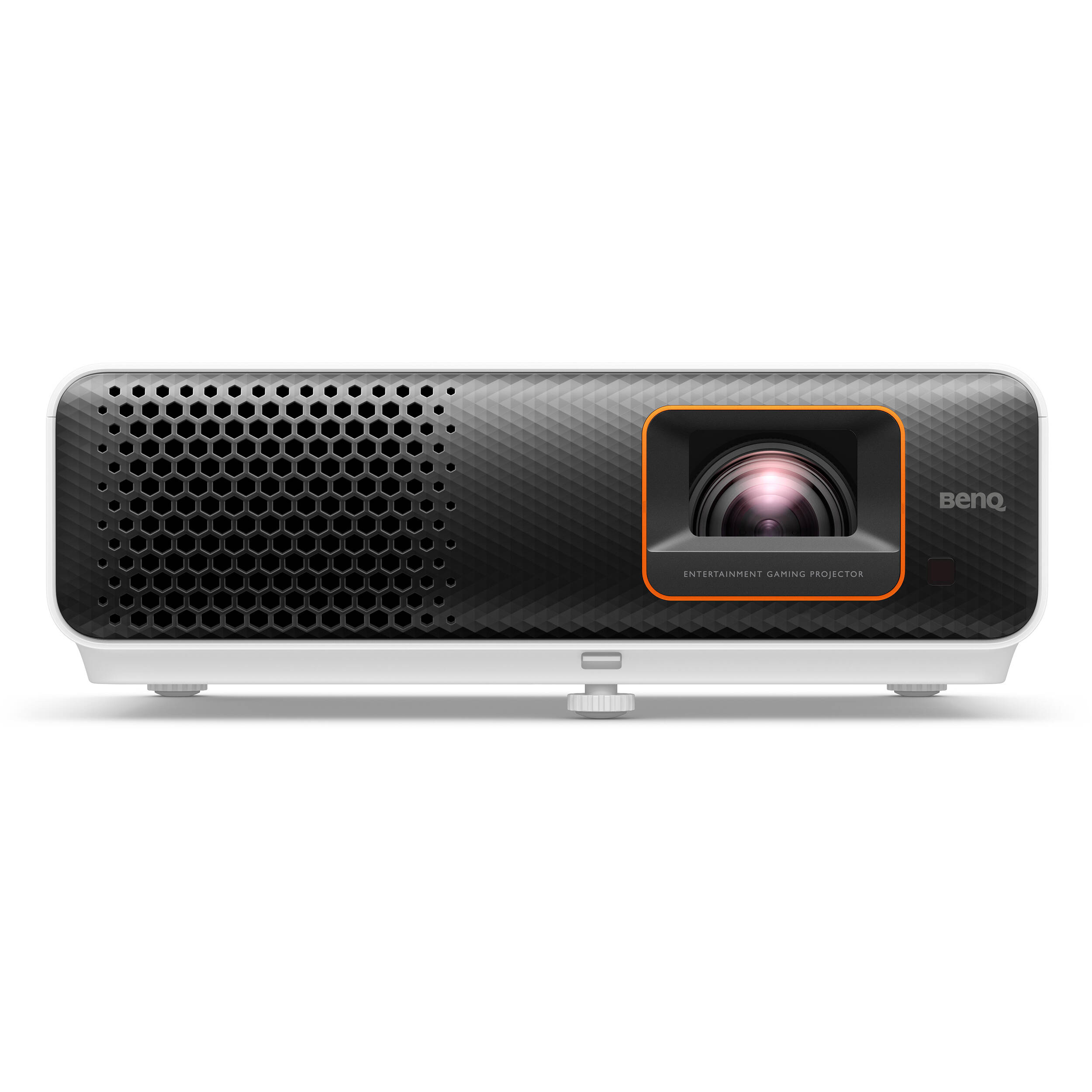

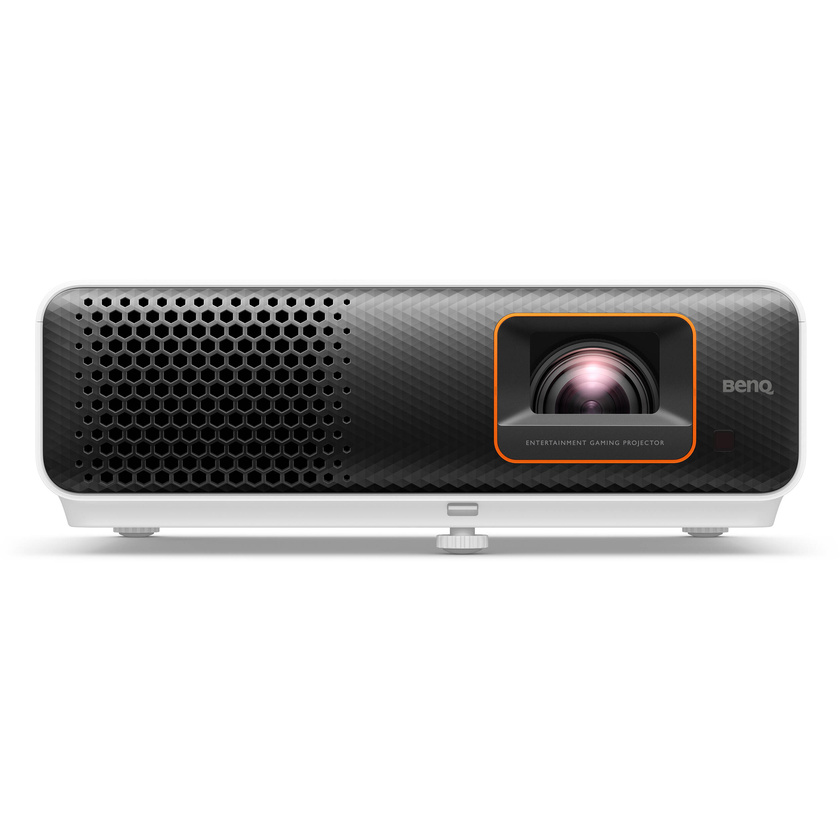

BenQ TH690ST 2300-Lumen Full HD Short-Throw LED DLP Gaming Projector

Product #107712 | SKU TH690ST | BenQ
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Brightness of 2300 Lumens
  • Full HD (1920 x 1080) Native Resolution
  • 1.2x Zoom & 0.69-0.83:1 Throw Ratio
  • 4-LED Light Source
  • 120 Hz Refresh Rate & 8.3 ms Latency
  • Project a 100" Image from 4.9' Away

Description

World-leading input lag smoothly complements spontaneous gaming modes and precision-tuned audio to immerse you in complete control to win any gaming genre with the BenQ TH690ST 2300-Lumen Full HD Short-Throw LED DLP Gaming Projector. Treat your eyes to the brilliance of Full HD 1080p visuals, with amazing detail clarity and sharpness for a better home cinematic experience.

Requiring minimal distance to project big-screen images in tight spaces, short throw projection also frees up useable floor space without casting shadows onto the screen. The projector is HDR compatible and brings out rich DCI-P3 in-game color and 98% Rec.709 color coverage performance. Enjoy richer, more lifelike colours, as if you're in the game world, on the race track, or at the battlefield. The treVolo 5Wx2 chambered speakers with powerful sounds, balancing treble, mid, and bass sounds for a rich listening experience.

Game Mode empowers you to tweak the images for the best display in dark or bright environments, delivering pure clarity and detail for full immersion into the game vibe. The 2D keystone eliminates trapezoid effects when projecting from various room locations for ease and convenience. BenQ lets you game on your terms. Whether it’s a Sony PS5/PS4, Nintendo Switch, or Xbox Series X, dual HDMI 2.0b universal connectivity has you covered. (HDMI 2.0b is 4K@60Hz / 1080p@120Hz compatible for gaming)

Specifications

Image Display
Display System DLP
Native Chip Resolution 1920 x 1080 (Full HD)
Supported Resolutions Minimum: VGA - 640 x 480
Maximum: 4K UHD - 3840 x 2160 @ 60 Hz
Maximum Brightness 2300 Lumens (ANSI)
Offset 102.5%
Aspect Ratio Native: 16:9
Dynamic Contrast Ratio 500,000:1
DLP Link 3D Yes
Colour Depth 10-Bit (1.07 Billion Colours)
Scan Horizontal: 15 to 135 kHz
Vertical: 23 to 120 Hz
Latency 8.3 to 33.4 ms
Lens
Lens f/2.6 - 2.78 (f = 10.2 - 12.24 mm)
Throw Ratio 0.69 to 0.83:1 (100" Screen Size @ 4.9' / 1.5 m)
Features
Keystone Correction Auto-Vertical: ± 30°
Auto-Horizontal: ± 30°
Supported HDR Input Formats HDR10, Hybrid Log Gamma
Digital Zoom 1.2x
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Built-In Speaker Yes (Stereo)
Speaker Power 10W
Remote Yes
Input/Output Connectors
Inputs/Outputs 2 x HDMI 2.0b Audio, Video Input
1 x TOSLINK Audio Output
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x USB-A 2.0 Power, Service Input/Output
1 x DE-9/DB-9 (RS-232) Service Input
HDCP Support , Version 2.2
Hardware
Mobile App Compatible No
*As of September, 2022: Cheque with manufacturer for the most up-to-date compatibility
Bluetooth None
General
Light Source Multi-LED
Expected Lamp Life Medium Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise Medium Brightness: 33 dB
Low Brightness: 28 dB
Security Cable Lock Slot
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 140 W
Standby Mode (Lamp Off): < 0.5 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (W x H x D) 14.4 x 9.6 x 4.6" / 366.0 x 244.0 x 118.0 mm
Weight 7.9 lb / 3.6 kg

In The Box

  • BenQ TH690ST 2300-Lumen Full HD Short-Throw LED DLP Gaming Projector
  • Remote Control with Batteries
  • Power Cord (5.9')

Reviews

0.0 (no ratings yet)

Details

  • Product: BenQ TH690ST 2300-Lumen Full HD Short-Throw LED DLP Gaming Projector
  • Manufacturer: BenQ
  • Model: TH690ST
  • SKU: TH690ST
  • RM Product #: 107712
  • Screen Resolution: 1920 x 1080
