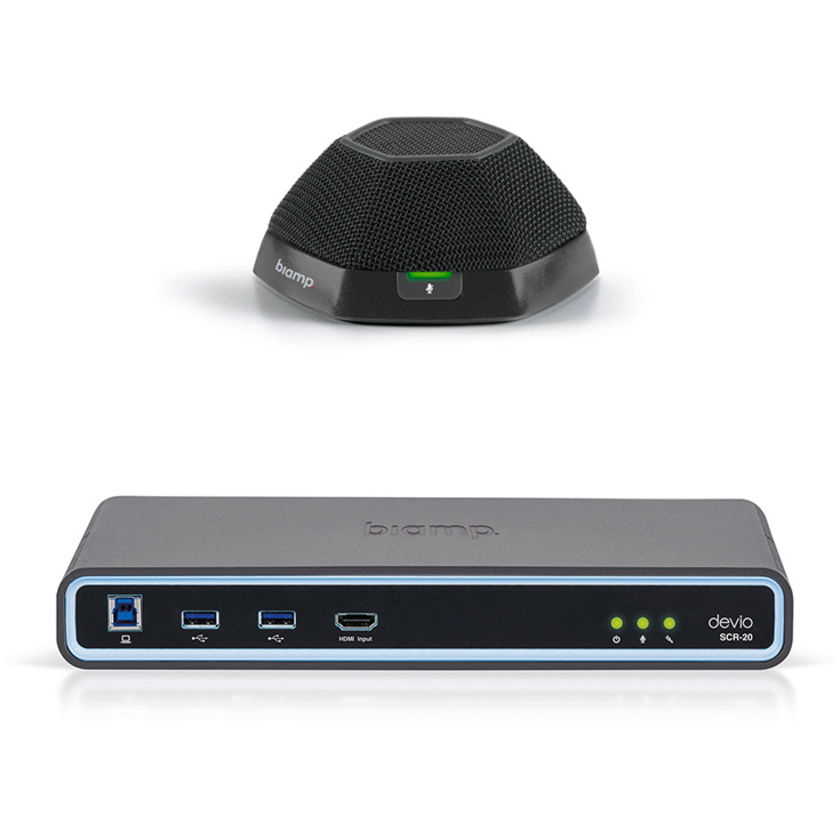

Biamp Devio SCR-20 & DTM-1 Tabletop Conferencing Bundle

Product #107744 | SKU BIA-DEVSCR20T | Biamp
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Supports both Windows and Mac PCs
  • Beamtracking technology
  • Three 120-degree zones
  • Three LED mute status indicators
  • Three capacitive touch mute buttons
  • Two selectable directivity modes

Description

Devio SCR-20

The Devio SCR-20 is a conferencing hub that provides users with exceptional AV experiences when using web-based conferencing systems. Intended for huddle rooms or small conference rooms, the SCR-20 uses Beamtracking™ microphones and professional grade DSP to optimize the audio quality, allowing far-end conference participants to experience the conversation naturally. The Devio SCR-20 supports a variety of room designs for computer-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Skype for Business/Microsoft Teams, Zoom, BlueJeans, Google Hangouts™/Google Meet, and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.

Devio DTM-1

The DTM-1 tabletop microphone includes Beamtracking™ technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The DTM-1 microphone actively tracks and intelligently mixes conversations from around the table, allowing farend conference participants to experience the conversation naturally. The DTM-1 ships with a mounting plate for securing it to a table, and a second DTM-1 microphone can be added to the meeting room if needed.

Specifications

Devio SCR-20
Network Connection RJ-45 with Ethernet cable (Cat 5e and above)
Front Panel Indicators Mic Status Indicator (Green/Red LED)
Room Tuning Indicator (Green/Red LED)
Power Indicator (Green/Red LED)
Power 24V DC 60W
Video
Supported Resolutions 640 x 480p (60 Hz)
720 x 480p (60 Hz)
720 x 576p (50 Hz)
1280 x 720p (50/60 Hz)
1920 x 1080p (50/60 Hz)
3840 x 2160p (30 Hz)
Physical Interface HDMI
HDCP Support 1.4
HDMI Audio Formats 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit
Analog Audio Output (RCA)
Frequency Response (20 Hz - 20 kHz, FS) +0/-0.25 dB
THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS) < 0.005%
Dynamic Range (THD+N < 0.005%) 107 dB, A-Weighted
Output Impedance (unbalanced) 100Ω
Maximum Output +8.5 dBu
Sampling Rate 48 kHz
D/A Converters 24-bit
SNMP See support website for the full list of attributes
Amplifier
Number of Channels 1
Continuous Power Output (THD+N < 0.025%) 20 W into Rated Load Impedance
Frequency Response (20 Hz - 20 kHz) +0.2/-0.5 dB
THD+N (1 kHz, 20 kHz bandwidth, 1 W) < 0.03%
Dynamic Range (THD+N < 0.5%) 100 dB, A-Weighted
Minimum Operational Load 4Ω Intermodulation distortion
(SMPTE, 60 Hz/7 kHz, 4:1, 1W) < 0.07%
USB
Bit Depth 24-bit
Sample Rate 48 kHz
Device Charging **Up to 5 W
Overall Dimensions
Height 1.8 inches (46 mm)
Width 11.2 inches (284 mm)
Depth 6.9 inches (175 mm)
Weight 2.0 lbs (0.9 kg)
Environmental
Ambient Operating Temperature Range 32-104° F (0-40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-6,600 ft (0-2000 m) MSL
Devio DTM-1 Microphone
Microphone Technology 8-Element Digital Array
Frequency Response (150 Hz - 16 kHz) ± 3 dB
Polar Pattern Active Beamformed
Sensitivity (94 dB SPL, 1 kHz) > 70 dB, A-Weighted
Maximum SPL (at 0.5% THD) 106 dB SPL
Dynamic Range (THD+N < 10%) 92 dB, A-Weighted
Automatic Noise Suppression 4 modes: Off, Low (Default), Medium, High
Selectable Directivity Modes 2 modes: Middle of Table (360°) or End of Table (120°)
Mute Switching 3 Capacitive Touch Buttons
Indicators Mute Indicator (Green/Red LED)
Digital Interface Custom/Proprietary
Connectors Two RJ-45: one between DTM-1 and Devio SCR-20/SCR-25, the other between DTM-1 and additional DTM-1
Power Requirements < 1 W, phantom powered from SCR-20/SCR-25
Max Distance Between Devices 49 feet (15 meters) from SCR-20/SCR-25 to DTM-1; 49 feet (15 meters) for daisy-chained connections between DTM-1 microphones
Overall Dimension s
Height 2.2 inches (56 mm)
Width 5.1 inches (130 mm)
Depth 4.8 inches (121 mm)
Weight 0.6 lbs (0.27 kg)
Environmental
Ambient Operating Temperature Range 32-104° F (0-40° C)
Humidity 0-95% relative humidity (non-condensing)
Altitude 0-6,600 ft (0-2000 m) MSL

In The Box

  • Biamp Devio SCR-20 Conferencing Hub
  • Biamp Devio DTM-1 Tabletop Conferencing Bundle
