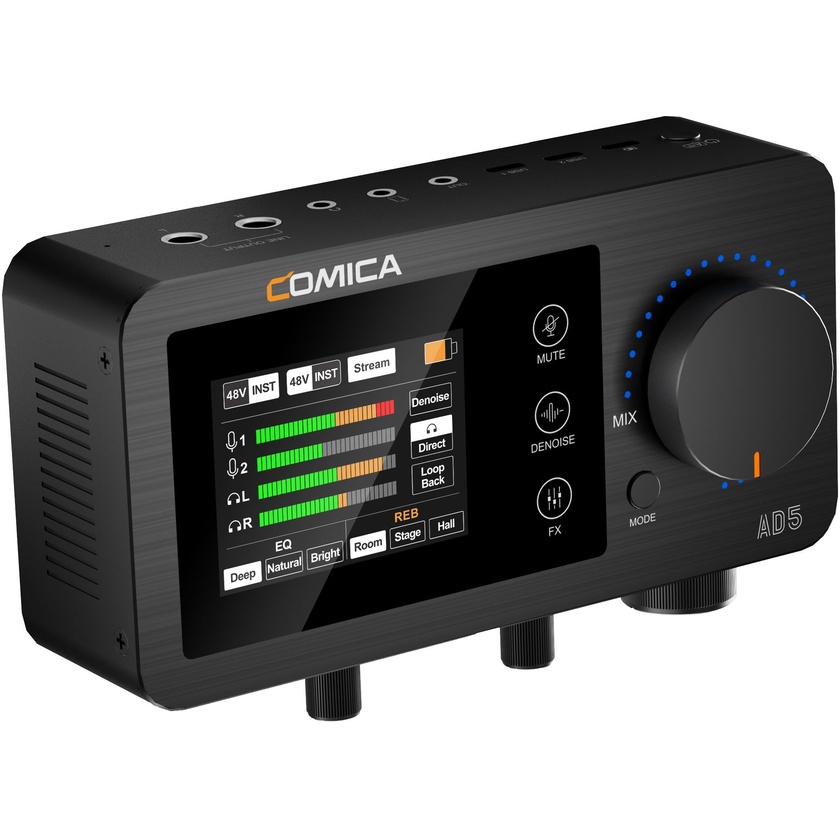

Comica Audio LinkFlex AD5 Audio Interface
Features
- 48KHz/24bit recording
- Built-in DSP Chip
- 115db high dynamic range
- AD/DA Conversion
- Dual Monitoring and Recording Modes
- Lithium-Ion Battery for Portability
Description
With 48KHZ/24bit recording, built-in DSP chip with 115db dynamic range, and class-leading AD/DA conversion, the Comica Audio LinkFlex AD5 Audio Interface comes jam packed with features to improve your audio recording across the board.
Diverse Interfaces and Multiple Knobs
Dual XLR/6.35mm interfaces support 48V phantom power and Hi-Z instruments such as an electric or bass guitar. Four control knobs are designed to adjust your preamp gain, monitoring volume and output gain independently. Furthermore, up to 65dB gain range makes it compatible with a wide array of microphones.
Dual Modes
The AD5 includes two modes- streaming and recording. In streaming mode, the interface outputs mono audio through the dual 6.35mm jacks. In recording mode, it outputs stereo audio through the two 3.5mm monitoring jacks. These modes can be switched between with the press of a button. The AD5 also includes both direct and input dual monitoring.
Dual USB, Loopback, and FX Functions
Dual USB-C interfaces support connecting two computers/mobile devices simultaneously, which is perfect for live streaming and podcasting with multiple devices. A loopback function can capture audio from these devices, and then transmit them to your preferred recording/streaming platform, allowing the combination of audio from both application sources and audio input devices.
Touch to Unlock Powerful Performance
An HD LCD screen on the top of the AD5 enables users to view the dynamics of their recordings in real time, With the touch of a button, you can enable/disable denoise, mute, and EQ/Reverb modes, allowing for greater control over your audio before it transmits to your device.
The AD5 includes a built-in rechargeable lithium-ion battery, which provides up to 6 hours of use between charges. This is perfect for those needing a great audio solution on the go.
Specifications
Input Interface | 2 x XLR/6.35mm |
Digital Interface | 2 x USB-C |
Analog Interface | 2 x 3.5mm |
Line Output Interface | 2 x 6.35mm |
Monitoring Interface | 2 x 3.5mm |
Preamp Gain | +65dB |
Dynamic Range | +115dB |
Sampling Rate | 48kHz |
Bit Depth | 24bit |
Battery | Polymer Lithium Battery 3000mAh 3.7V |
Operating Time | 6 Hours |
Charging Port | USB-C 5V2A |
Net Weight | 470g |
Dimension | 170 x 85 x 61mm |
Working Temperature | 0℃ ~ 50℃ |
Storage Temperature | -20℃ ~ 60℃ |
In The Box
- Comica Audio LinkFlex AD5 Audio Interface
