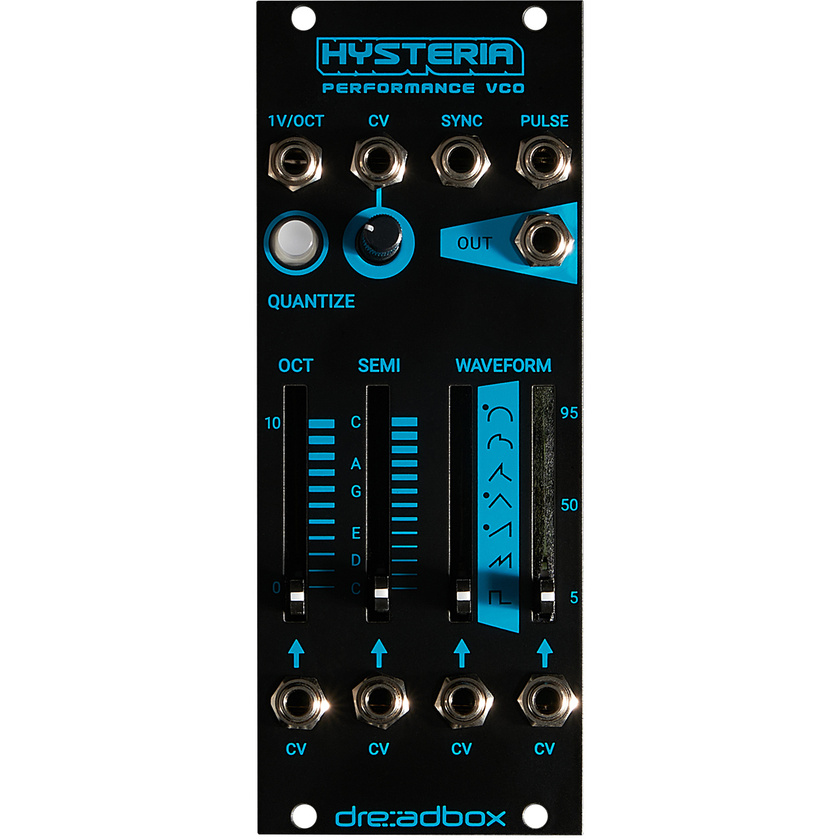

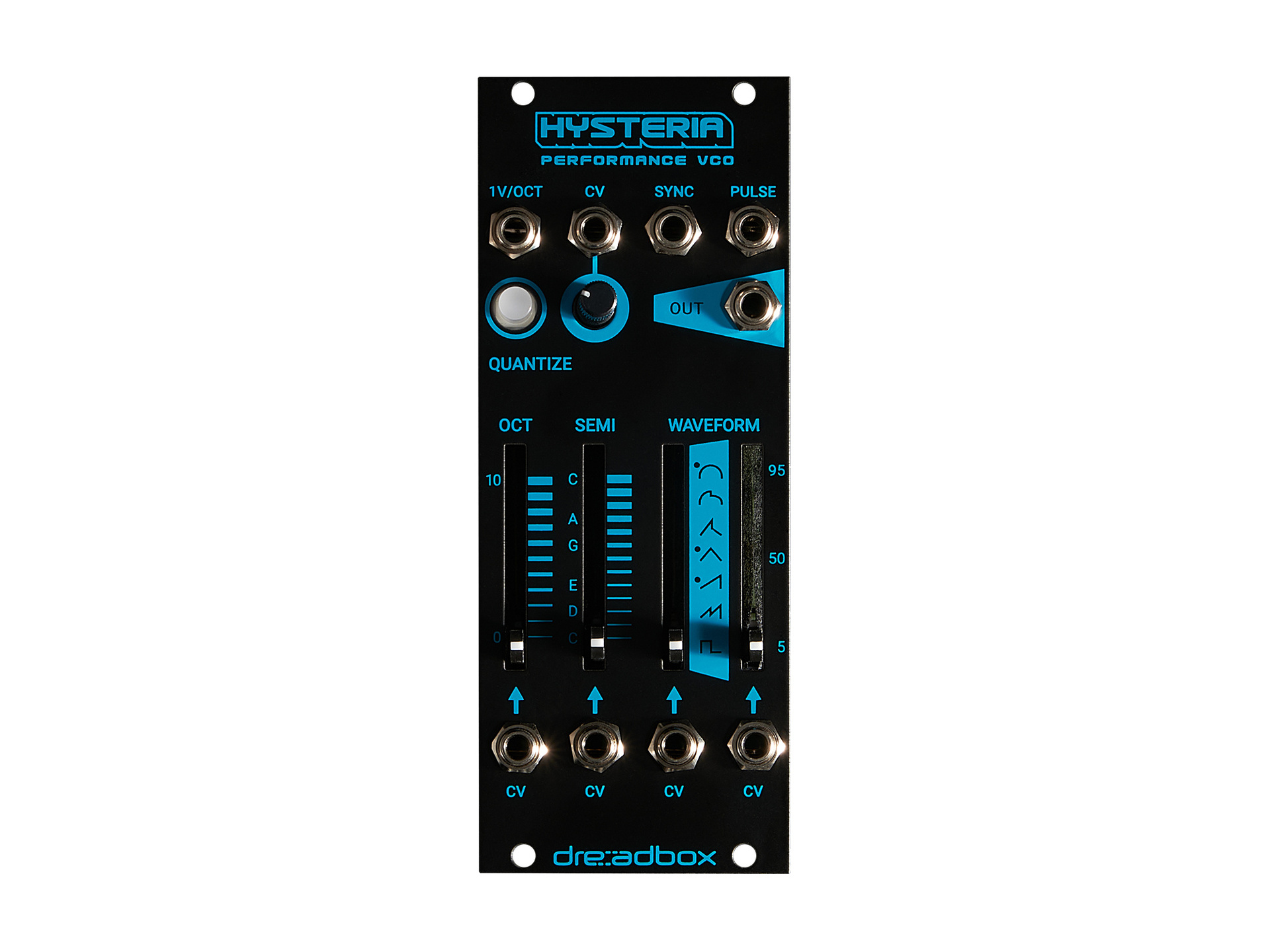

The 10 HP Dreadbox Hysteria BL is a high-performance voltage controlled oscillator (VCO) in Eurorack format. The VCO offers a range of 16 Hz to 32 kHz and features an integrated quantiser, which is highly advantageous in any modular synthesiser setup, especially when performing live. Once engaged, the Octave and Semitone sliders lock to specific octaves and notes for fast and easy calibration and performance tricks.
The VCO offers seven voltage-controlled variable waveforms and a variable voltage-controlled width control, which when used together, offer powerful waveshaping capabilities. The Sync input allows the VCO to be hard synced with another oscillator or LFO, while the Pulse output is designed for use as a clock or to sync to other oscillators. The 10 HP module has a depth of 1.4" and ships with a power ribbon cable.
Features
- Analogue VCO with range from 16 Hz up to 32 kHz
- Variable voltage-controlled waveshaper
- Advanced pitch control with voltage-controlled quantiser, so it is always in tune
- Hard-Sync input
- Separate Pulse output for use as a clock or to sync other oscillators
