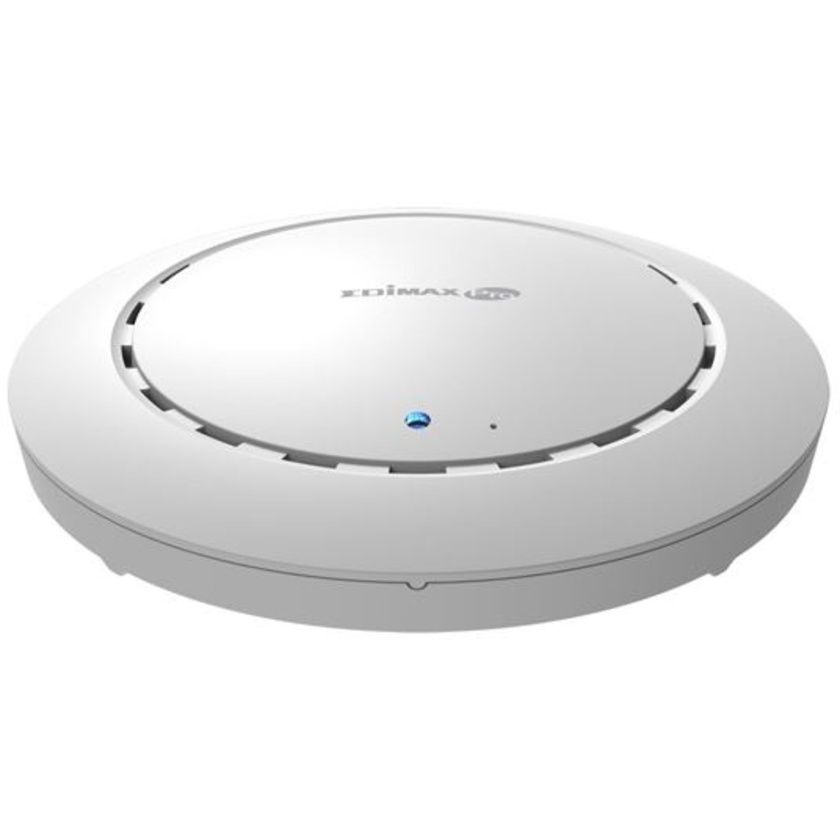

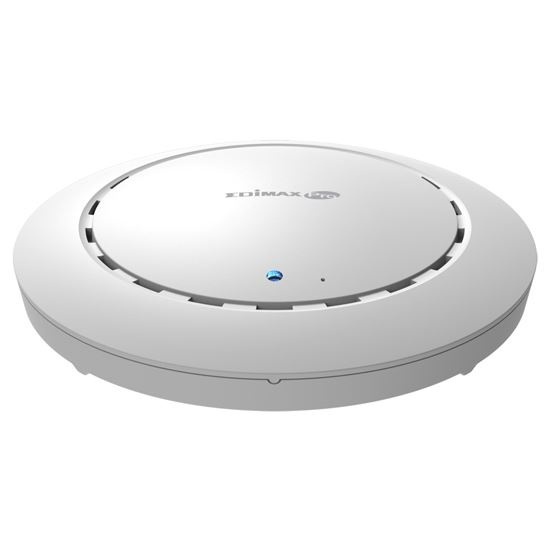

Edimax Long Range AC1200 2T2R Dual-Band Ceiling Mount PoE Access

Product #101948 | SKU CAP1200 | Edimax
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 802.11AC Dual-Band High Speed
  • Easy Installation
  • Compact & Durable Housing
  • Designed for High-Density Usage
  • Multiple SSIDs for Security Management
  • Fast Roaming

Description

The CAP1200 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. High-density capacity for up to 100 simultaneous users is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.

Key Features:

  • 802.11AC Dual-Band High Speed
  • Easy Installation
  • Compact & Durable Housing
  • Designed for High-Density Usage
  • Multiple SSIDs for Security Management
  • Fast Roaming
  • Wide Coverage & High Sensitivity
  • Seamless Mobility
  • Power over Ethernet
  • Built-In RADIUS Server
  • Business Environments
  • Central Management

Specifications

Hardware
LAN Interface Giga x1
PoE 802.3af (Supports 802.3at)
Antenna Type: 4x Built-In PIFA (2x 2.4GHz, 2x 5GHz)
Gain: 2.82dBi (2.4GHz), 4dBi (5GHz) Max.
Power DC: 12V/1A
802.3af (PoE Injector Optional)
Dimensions 17.6 (D) x 3.2 (H)cm
Weight 305.7g
Power Consumption (Full Loading) 11W
Mounting Ceiling
WPS/Reset Y
LED Indicator Power LED
Diag LED
Environmental Conditions Operating Temperature: 0°C (32°F) ~ 40°C (104°F)
Operating Humidity: 90% or Less
UL94-5VB Flammability Rating
Power Saving 802.3az
Internal Buzzer Yes
Wireless
Standard 802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios 2
Receiver Sensitivity ≤-95dBm
Certification CE / FCC
Fast Roaming Yes
Number of SSIDs 16 (2.4GHz) + 16 (5GHz)
Performance
Maximum Data Speed 300 + 867Mbps
Concurrent Clients Up to 50 Per Radio
RF Specifications
Frequency Band •Radio I: 802.11b/g/n 2.412 ~ 2.484 (GHz)
•Radio II: 802.11a/n/ac 5.18 ~ 5.24 (GHz), 5.745 ~ 5.825 (GHz)
(The supported frequency band is restricted by local regulations.)
Operation Channels 2.4GHz: US/Canada 1-11; 2.412 ~ 2.462GHz
Europe 1-13; 2.412 ~ 2.472GHz
Japan 1-14; 2.412 ~ 2.484GHz

5GHz: Country dependent for the following ranges:
US/Canada: Band 1:36, 40, 44, 48; 5.180 ~ 5.240(GHz)
Band 4:149, 153, 157, 161, 165; 5.745 ~ 5.825(GHz)
Europe: Band 1:36, 40, 44, 48; 5.745 ~ 5.825(GHz
Transmit Power •802.11b
23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

•802.11g
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbps

•802.11gn (2.4G)
26dBm@MCS0/8
25dBm@MCS1/9
25dBm@MCS2/10
25dBm@MCS3/11
24dBm@MCS4/12
23dBm@MCS5/13
22dBm@MCS6/14
22dBm@MCS7/15

•802.11a
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbp

•802.11an(5G)
26dBm@MCS0/8
25dBm@MCS1/9
25dBm@MCS2/10
24dBm@MCS3/11
24dBm@MCS4/12
23dBm@MCS5/13
22dBm@MCS6/14
21dBm@MCS7/15

•802.11ac
26dBm@MCS0
25dBm@MCS1
25dBm@MCS2
24dBm@MCS3
24dBm@MCS4
23dBm@MCS5
22dBm@MCS6
21dBm@MCS7
19dBm@MCS8
18dBm@MCS9
Receiver Sensitivity •802.11b
≤-95dBm@1Mbps
≤-90dBm@11Mbps

•802.11g
≤-91dBm@6Mbps
≤-75dBm@54Mbps

•802.11gn (2.4G)
≤-93dBm@MCS0
≤-73dBm@MCS7
≤-90dBm@MCS8
≤-70dBm@MCS15

•802.11a
≤-89dBm@6Mbp
≤-72dBm@54Mbps

•802.11an (5G)
≤-92dBm@MCS0
≤-71dBm@MCS7
≤-89dBm@MCS8
≤-68dBm@MCS15

•802.11ac
≤ -86dBm@MCS0
≤ -61dBm@MCS9
≤ -83dBm@MCS10
≤ -58dBm@MCS19
Receiver Sensitivity
Encryption WEP / WPA / WPA2
Wireless L2 Isolation Yes
Station Isolation Yes
IEEE 802.1x Authenticator Yes
EAP Authentication EAP-FAST / EAP-SIM / EAP-AKA
Hidden SSID Yes
MAC Address Filter Yes
Wireless STA Yes
Rogue AP Detection
(w/ Edimax Pro Network Management Suite (NMS))
Yes
Software
Wireless Mode AP / WDS AP / WDS Bridge
802.1q VLAN Y (VID = 1-4095)
Spanning Tree RSTP
QoS WMM (802.11e)
Max Associated Station No.
Pass-Through IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p) Yes
Multicast Rate up to 54Mbps Yes
Management
Deployment Standalone
Managed by Edimax Pro NMS
Configuration HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
RADIUS Server Built-In
Auto-Channel Yes
Private MIB Yes
