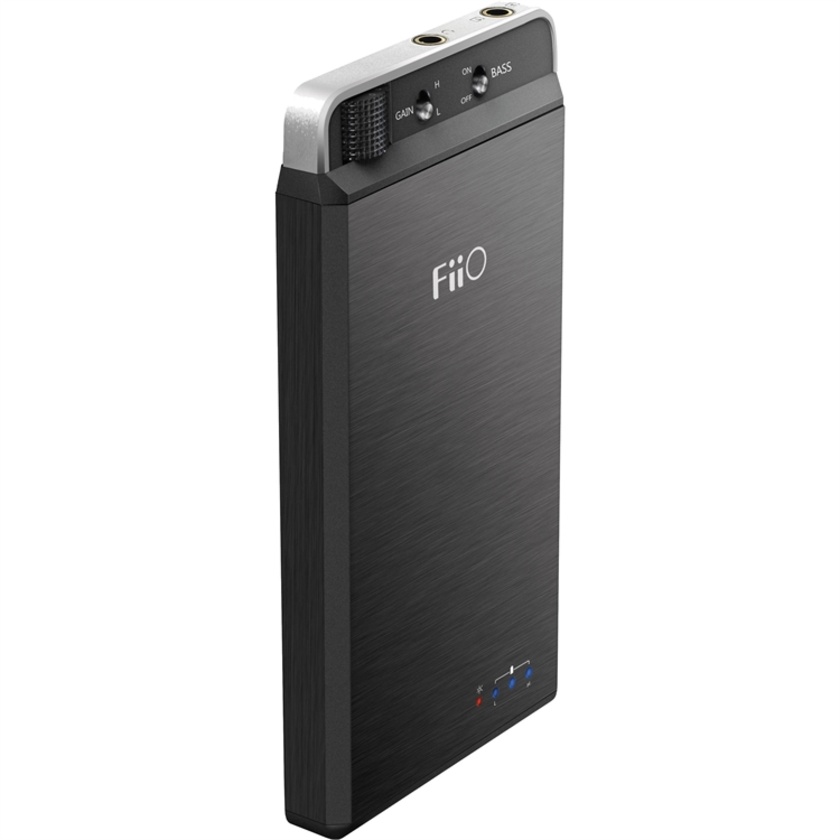

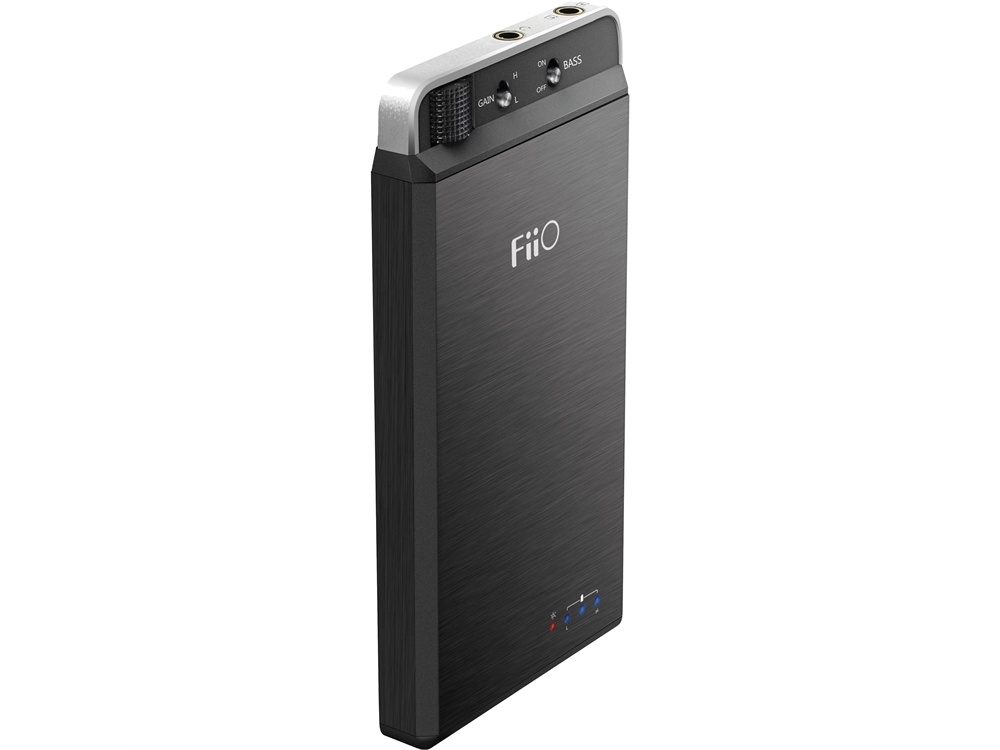

The Kunlun E18 Portable USB DAC and Amplifier from Fiio is designed to provide improved digital to analogue conversion and amplification for your computer and mobile audio devices. It supports audio resolutions up to 96 kHz/24-bit as well as functions as an analogue-only amplifier. The Kunlun E18's volume roller has a symmetrical design to reduce accidental bumps in volume. The unit is also capable of providing playback control on compatible Android devices when used in DAC mode.
The unit also has a built-in rechargeable battery that is capable of charging your device while in use. The battery has up to a 25-hour life when the Kunlun E18 is used in amp mode, and approximately a 12-hour life when used as a DAC. A USB cable, 2 micro-USB cables, and a 3.5mm cable are included.
Features
USB DAC & Amp for Computer
USB DAC+AMP function lets you enjoy higher quality music out of your computers. The E18 supports audio resolutions up to 96 kHz/24-bit
Portable Headphone Amplifier
The E18 can function as outboard headphone amp for mobile music enjoyment with any source, including all Androids, iOS devices and DAPs
Android Control
Connected via Micro USB OTG cable, the E18 can remotely control the playback of songs on compatible Android devices
Mobile Power Supply
The E18 can also act as a mobile power source, so you don't need to worry about your smartphone running out of juice while you're listening to music
Built-In Rechargeable Battery with Charging Protection
When used as power source, the automatic cut-off and self-recovery function of charging current limiter IC on the E18 protects the phone. The E18 has a battery life of approximately 25 hours (when using the amp function only) or 12 hours (when using the USB DAC and amp)
Specifications
| Output Power | > 300 mW @ 32 Ohms |
| Sample Rates | 32, 44.1, 48, 96 kHz |
| Bit Depth | 16, 24-bit |
| THD | < 0.005% @ 1 kHz/32 Ohms |
| Signal to Noise Ratio | > 106 dB (A-weighted) |
| Frequency Response | 20 Hz to 20 kHz (+/-0.2 dB) |
| Recommended Headphone Impedance | Headphone: 16 to 150 Ohms (recommended) |
| Battery Life | Amp: > 25 hours, approximate DAC & Amp: > 12 hours, approximate |
| Battery Capacity | 3500 mAh (Lithium-ion polymer (LiPo) rechargeable) |
| Compatibility | Android compatibility for tracking control: Samsung: Galaxy S4, S3, Note3, Note2, and Galaxy Note 10.1 (2014) HTC: HTC one X, HTC one Sony: L36h (Xperia Z), L39h (Xperia Z1), Z ULTRA, LT26ii (Xperia SL) BBK: vivo Xplay LG: G2 ainol: novo7 fire pad Xiamoi: Mi3 |
| Dimensions (HxWxL) | 5.1 x 0.5 x 2.6" (130.0 x 14.6 x 66.2 mm) |
| Weight | 5.7 oz (162.0 g) |
