The Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output is a presentation switcher featuring HDMI, DisplayPort, DVI, and VGA inputs. The 4 x 1 offers split HDMI and HDBaseT outputs, allowing you to send the signal to both a local and remote display at the same time. The HDBaseT output transmits a DCI/UHD 4K signal up to 40m and WUXGA/1080p60 signal up to 70m over a single CAT5e cable to a corresponding receiver. The same cable can also carry PoH (Power-over-HDBaseT) to the receiver. For audio, an independent 3.5mm input is linked to the DVI and VGA video inputs, and a 3-pin Phoenix output allows you to de-embed the HDMI or DisplayPort audio.

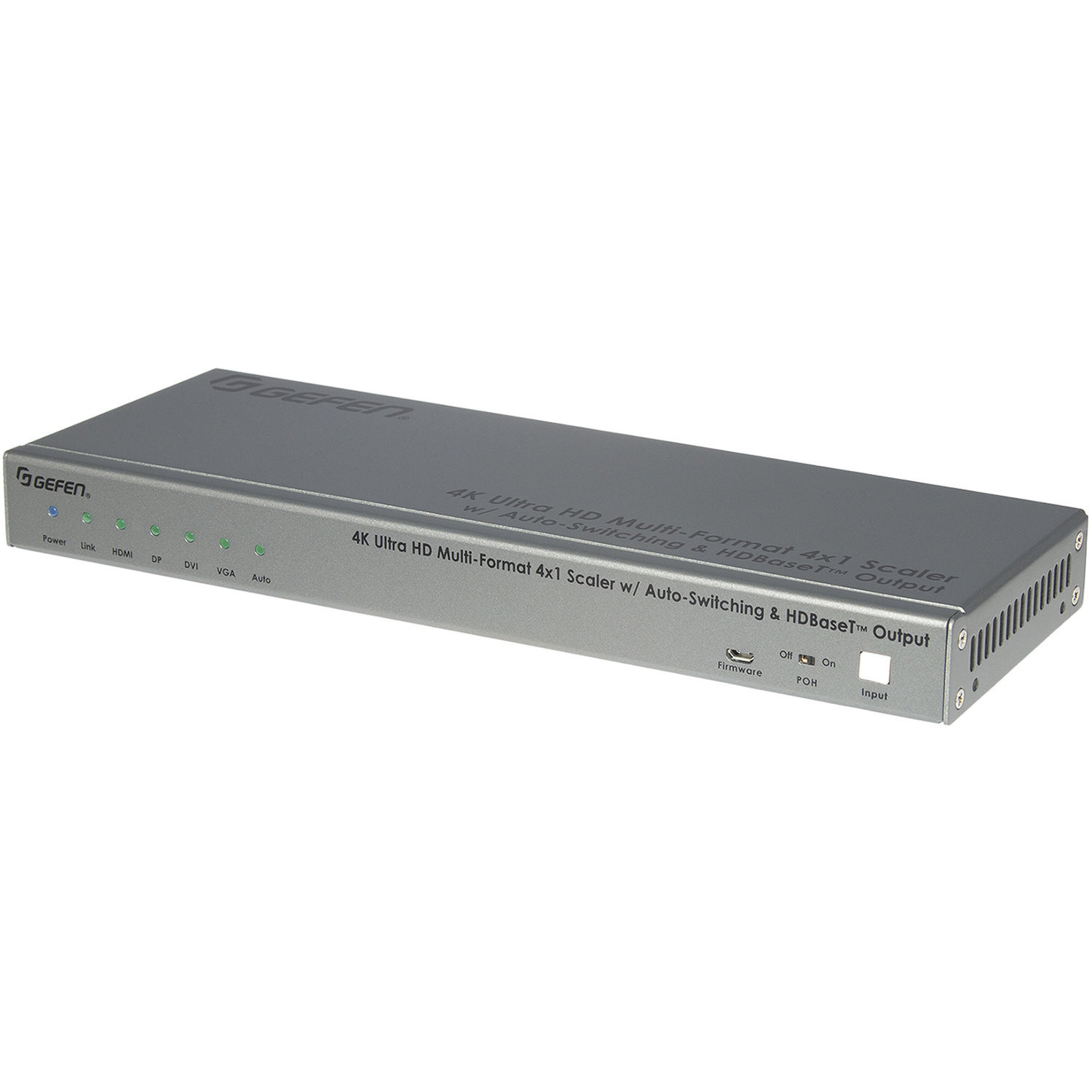

Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output
This product is no longer available
Features
- CAT5e Presentation Switcher & Scaler
- HDMI, DisplayPort, DVI & VGA Inputs
- Manual / Automatic Switching
- Local/Remote Split HDMI/HDBaseT Outputs
- Transmit DCI/UHD 4K Signal up to 40m
Description
Specifications
| TMDS Clock Frequency | 340 MHz |
| Bandwidth | 10.2 Gb/s |
| Video Inputs | 1 x HDMI Type A, Locking 1 x DisplayPort 1 x DVI 29-Pin 1 x VGA HD-15 |
| Video Outputs | 1 x HDMI Type A, Locking 1 x HDBaseT RJ-45, Shielded |
| Audio Input | 1 x 1/8" / 3.5 mm Jack |
| Audio Output | 1 x 3-Pin Phoenix with Removable Plug |
| Transmission Distance | DCI 4K at 24/30 Hz 4:4:4 up to 40 m (8-Bit Colour) UHD 4K at 60 Hz 4:2:0 up to 40 m (8-Bit Colour) UHD 4K at 30 Hz 4:4:4 up to 40 m (8-Bit Colour) WUXGA/1080p at 60 Hz up to 70 m (12-Bit Deep Colour) |
| Input Control Port | 1 x 3-Pin Phoenix with Removable Plug |
| RS-232 | 1 x DB-9 |
| IR Input | 1 x 1/8" / 3.5 mm Jack |
| Firmware Update Port | 1 x Micro-USB Type B |
| Power Input Connector | 1 x 5.5 mm Barrel, 2.1 mm Pin, Locking |
| Power Supply | 1 x 12 VDC, Locking |
| Power Consumption | 10 W Maximum (Not Powering a Receiver) 22 W Maximum (Powering a Receiver) |
| Operating Temperature | 0 to 50°C |
| Operating Humidity | 5 to 90% RH, Non-Condensing |
| Storage Temperature | -20 to 85°C |
| Storage Humidity | 0 to 95% RH, Non-Condensing |
| MTBF | 50,000 Hours |
| Dimensions | 30.5 x 3 x 10 cm (Not Including Connectors, Mounting Brackets) 33.3 x 3 x 10 cm (Not Including Connectors, Including Mounting Brackets) |
| Weight | 0.59 kg |
In The Box
- Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output
- 12 VDC Power Supply with Locking Connector and US/EU/UK/AU Plug Adapters
- Gefen IR Extender Module
- IR Remote with 2 AAA Batteries
- Mounting Brackets
- Self-Adhesive Rubber Feet
Reviews
(no ratings yet)Details
- Product: Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output
- Manufacturer: Gefen
- Model: EXT-4K300A-MF-41-HBTLS
- SKU: EXT-4K300A-MF-41-HBTLS
- RM Product #: 98784
