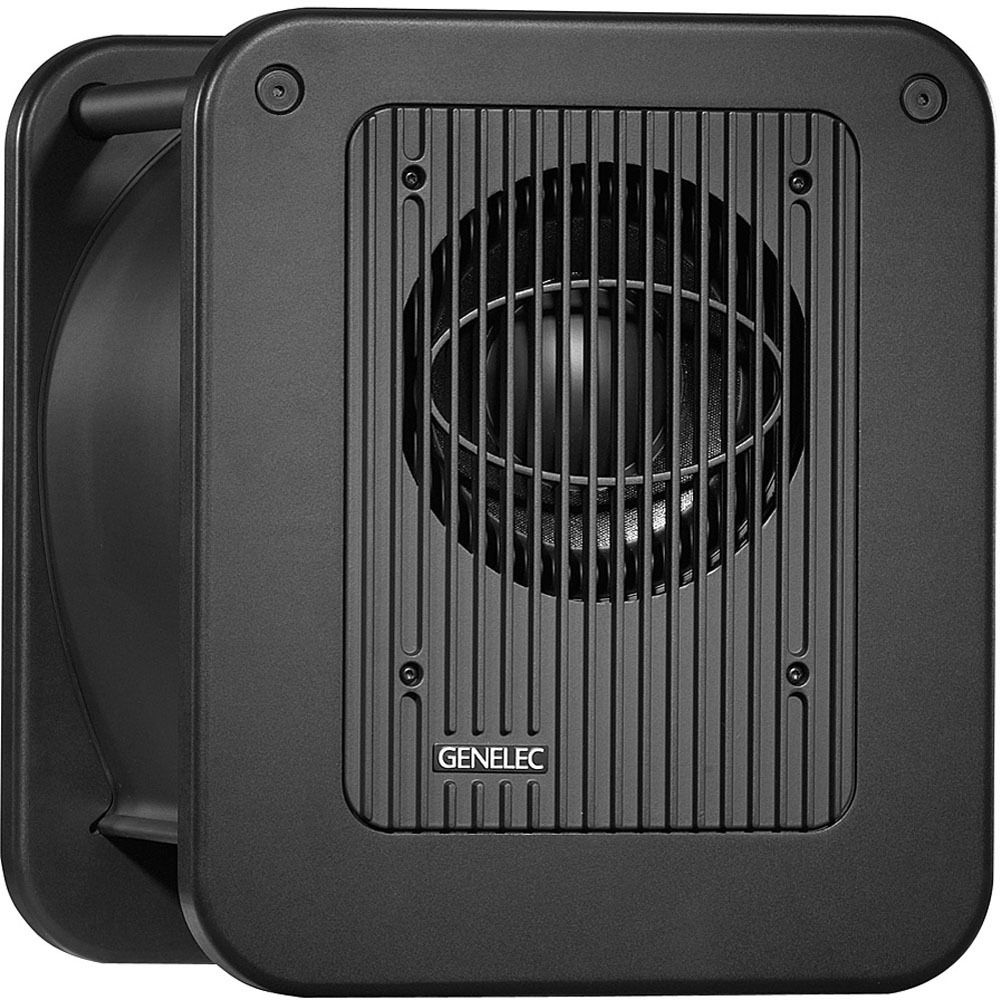

The Genelec 7050B Subwoofer features a 8" driver, powered by a robust 70 Watt amplifier, housed in Genelec's proprietary LSE(Laminar Spiral Enclosure) bass reflex cabinet. This design combines minimized enclosure noise with tight, consistent signal dispersion, a characteristic of laminar.
The rear panel of the 7050B provides a bass management unit featuring 5 separate XLR I/O's and a dedicated LFE input for mixing or monitoring film-related music and sound effects in Dolby Digital, DTS, and other encoding formats. The amplifier unit, with active crossover filters and driver overload protection, is adjacent to an ample set of Bass Roll-Off, Phase and LFE Bandwidth DIP switch controls.
The 7050B is a viable, space-conserving low end monitoring solution for 2:1 or 5:1 systems installed in project or commercial recording studios, A/V post production facilities, or mobile live mixing applications.
Key Features
- Compact powered subwoofer with 8" driver and 70 Watts of amplification.
- Magnetically shielded for use in proximity to computer or video monitors.
- LSE (Laminar Spiral Enclosure) bass reflex subwoofer cabinet design for minimized turbulence noise and optimum signal flow.
- Metal grille covering for driver
- Extended bass reproduction down to 25 Hz
- Six-position -6 to +12 sensitivity adjustment trim
- 3 separate -2, -4, -6dB bass roll-off DIP switches
- Selectable 85/120 LFE bandwidth selector DIP switch for film related mixing.
- +10 dB LFE boost switch for monitoring of DTS and Dolby Digital encoding formats.
- Dual phase matching switches with 0 - 270° toggling
- Balanced XLR inputs and outputs
Specifications
| Active or Passive |
Active |
| Driver |
8" |
| Power |
70 Watts(short term, no limiter) |
| Crossover |
Active, 85 Hz |
| Frequency Range |
25 Hz - 85 Hz(free field +/-3 dB) LFE 85/120 Hz(free field +/-3 dB) |
| Maximum Sound Pressure Level (SPL) |
100 dB SPL @ 1m |
| Impedance |
Not Applicable, Self-Powered |
| Maximum Power Handling |
Not Applicable, Self-Powered |
| Enclosure Material |
Laminar Spiral Enclosure(LSE) |
| Controls and Indicators |
1 x Sensitivity Adjustment Trim 3 x Bass Roll-Off DIP Switches 2 x Phase DIP Switches 2 x LFE Bandwidth 1 x Mains Power Switch 1 x Power On LED |
| Connectors |
1 x 3-pin XLR Female, LFE Input 5 x 3-pin XLR Female Front LCR, Rear L,R In 5 x 3-pin XLR Male Front LCR, Rear L,R Out |
| Power Supply (AC) |
240V only |
| Dimensions |
16.1 x 13.8 x 12.6" (410 x 350 x 319mm) |
| Weight |
39.6 lbs (18 kg) |
