Genelec 7060B 120W 10" Active Subwoofer (Black) has been discontinued, here are some related products you might like:

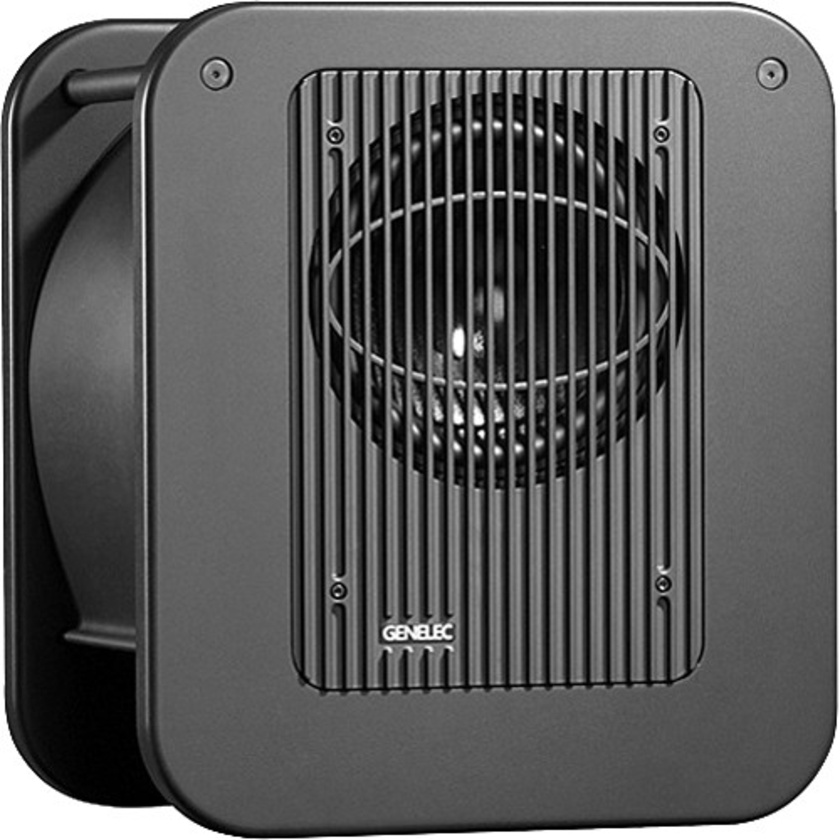

Genelec 7060B 120W 10" Active Subwoofer (Black)

Product #15494 | SKU 7060BPM | Genelec
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Overview

Powerful and precise active subwoofer for modern 5.1 or 6.1 monitoring

Description

The 7060B 120W 10" Active Subwoofer (Black) from Genelec is a powerful and precise active subwoofer perfect for modern 5.1 or 6.1 surround monitoring. It has a 10" front-firing driver capable of reproducing tones down to 19Hz. With a large sound pressure output capacity and versatile controls, the 7060B can be optimized to meet any low-frequency monitoring needs. The integrated 120W amplifier unit provides 6 signal I/Os, summed signal outputs, and an LFE input with a selectable 85/120Hz low pass filter and a 0/+10dB LFE sensitivity switch. It also offers overload protection circuits to keep the subwoofer operating reliably. The unique Laminar Spiral Enclosure minimizes noise and enables a long reflex tube to be packed into a small space.

Key Features

  • Ideal for 5.1 or 6.1 surround monitoring
  • Front-firing 10" driver provides a high sound pressure output capability and frequencies as low as 19Hz
  • The 120W amplifier offers powerful, distortion-free audio and also has active crossover filters and driver overload protection circuits for excellent reliability
  • The integrated bass management unit offers 6 signal I/Os, summed signal outputs, and an LFE input with a selectable 85/120Hz low pass filter and a 0/+10dB LFE sensitivity switch
  • The Laminar Spiral Enclosure bass-reflex cabinet minimizes turbulence noise and allows a long reflex tube to be put into a small space

Specifications

Driver
10" (254mm) Front-Firing Woofer
Amplifier
120W
Crossover
85Hz
Frequency Range
19 - 85/120Hz ±3dB
Maximum Sound Pressure Level (SPL)
> 108dB
Input Level Adjustment
+12 to -6dBu, Variable
Low Frequency Roll-Off
0 to -6dB (2dB/Step)
Phase
0 to 270° (90°/Step) @ 85Hz
Connectors
6 x XLR Speaker Inputs
6 x XLR Speaker Outputs
1 x XLR Sum In
1 x XLR Sum Out
1 x 1/4" Bypass Switch Connector
1 x Remote Connector
1 x AC Input
Controls and Indicators
1 x Power Switch
1 x Voltage Selector Switch
1 x Sensitivity Adjustment Control
DIP Switches for LFE Bandwidth, Redirect, Sum In Mode, LFE +10dB, Test Tone, Phase, and Bass Roll-Off
Dimensions (HxWxD)
20.75 x 18.2 x 14.3" (527 x 462 x 363mm)
Weight
57 lbs (26kg)

Reviews

0.0 (no ratings yet)

Details

  • Product: Genelec 7060B 120W 10" Active Subwoofer (Black)
  • Manufacturer: Genelec
  • Model: 7060BPM
  • SKU: 7060BPM
  • RM Product #: 15494
