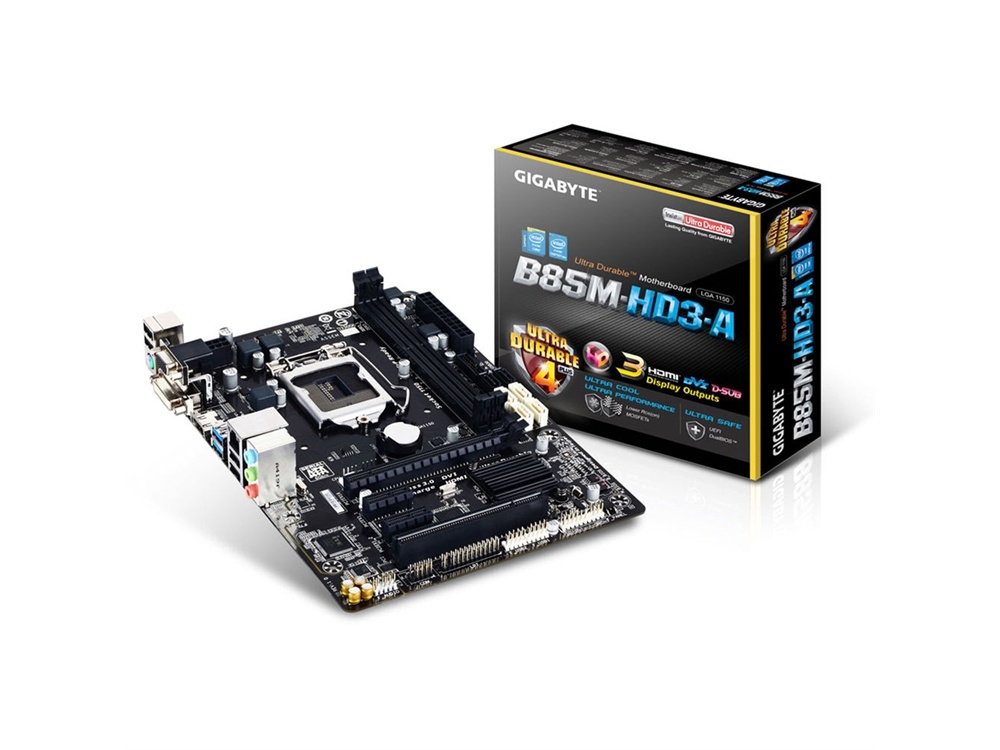

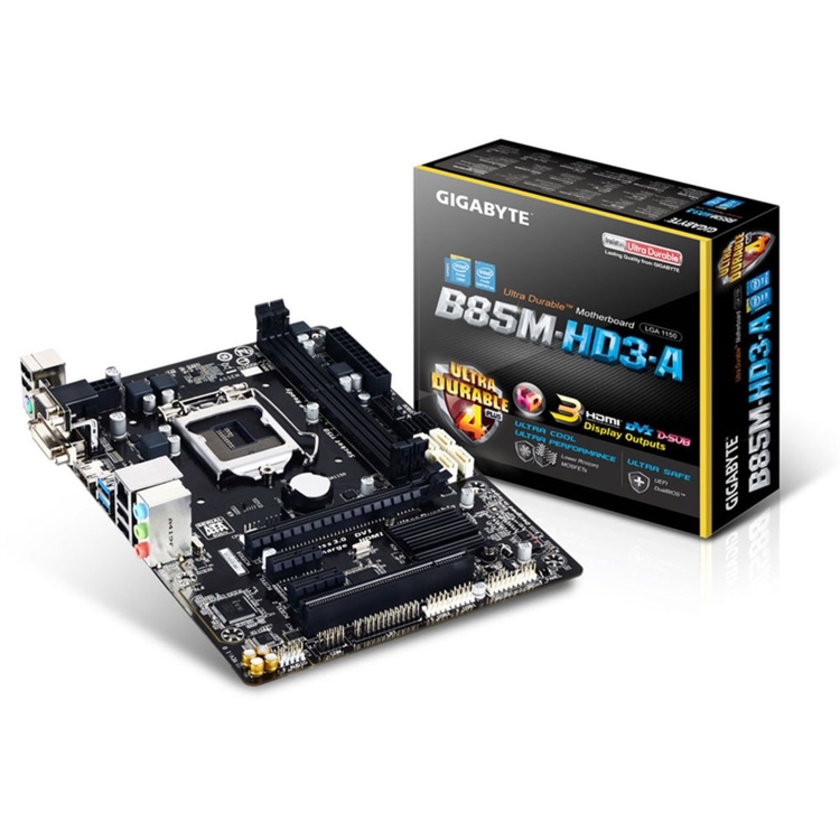

Gigabyte GA-B85M-HD3-A Motherboard

The GA-B85M-HD3-A Motherboard from Gigabyte is designed to fit in cases that support the Micro ATX Form Factor. It supports Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1150 package. This motherboard also uses an Intel B85 express chipset and has been designed to bring together a blend of features and technologies that offer the strong base platform for your next PC build. The GA-B85M-HD3-A Motherboard supports Windows 8.1, 8, and 7 operating systems. Linux is also supported, so long as the chipset vendors provide driver support, and Windows 9X/ME/2000/XP is only supported if the drivers are updated on Gigabyte's website.

The Micro ATX form factor of the GA-B85M-HD3-A has 2 x DIMM sockets that can support up to 16GB of 1600/1333 MHz non-ECC memory modules for dual channel memory architecture. Extreme Memory Profile (XMP) modules are also supported and the GA-B85M-HD3-A has a total of 4 x SATA III 6 Gb/s ports, 2 x SATA II 3 Gb/s ports, 4 x USB 3.0/2.0 ports (2 on the back panel, 2 through the internal USB headers), and 8 x USB 2.0/1.1 ports (4 on the back panel, 4 available through the internal USB headers). For PCIe expansion, there is 1 x PCI Express 3.0 x16 slot (running at x16), 2 x PCI Express 2.0 x1 slots, and 1 x PCI slot.

Graphically, this motherboard supports integrated Intel HD Graphics with up to 1GB of shared memory. When connected via the two HDMI ports, resolutions up to 4096 x 2160 @ 24 Hz or 2560 x 1600 @ 60 Hz are supported. When its single DVI-I or D-Sub (VGA) port is connected, a maximum resolution of 1920 x 1200 is achieved. The DVI-D port does not support a D-Sub connection using an adapter.

Network connectivity is achieved using the Realtek GbE LAN chip and the Realtek ALC8876 codec supports High Definition audio in 2, 4, 5.1, and 7.1-channel configurations. Support for ON/OFF Charge also lets users charge their USB-compatible devices whether their system is on, off, or in standby, and the 3x USB Power feature helps devices charge faster and draw more current from the motherboard than a standard USB port would allow.

Features

Intel 8 Series Platform

The Intel 8 Series platform offers improvements in performance and power consumption with 4th generation Intel Core processors and Intel B85 chipsets. As well as a boost in overall productivity, support for integrated Intel HD4600 graphics provides native 4K resolution playback over standard HDMI connectivity, with higher frame rates in DX11 3D game titles

Gigabyte Ultra Durable 4 Plus

With a range of features and component choices, Gigabyte Ultra Durable 4 Plus provides performance, as well as cool and efficient operations and helps to extend the motherboard's lifespan

Ultra Performance

Gigabyte uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to help provide a longer lifespan

Ultra Safe

Gigabyte motherboards feature Gigabyte DualBIOS, a technology from Gigabyte that protects one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failures due to virus attacks, hardware malfunctions, improper OC settings, or power failures during the update process

High Quality Audio Capacitors

Gigabyte Ultra Durable motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the high quality sound resolution and sound expansion to create realistic sound effects for user experience

Dedicated Audio Hardware Zone

• Separation on the PCB layer helps protect the board's sensitive analogue audio components
• A separate analogue and digital ground helps to protect against Electromagnetic Interference (EMI)

High ESD Protection for USB and LAN (USB 3.0 only)#####

Gigabyte 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, helping to protect your system from common electrical surges and even direct lighting strikes

HDMI

HDMI is a High-Definition Multimedia Interface which provides up to a 5 Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit uncompressed digital video and audio, HDMI helps to ensure a crisp rendering of digital content up to 1080p without the quality losses associated with analogue interfaces and their digital-to-analogue conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content

DVI Support

DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to help maximise the visual quality of digital display devices, such as LCD monitors, digital projectors, and more. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection)

On/Off Charge Technology

Gigabyte On/Off Charge technology allows you to charge your iPhone, iPad, and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of Gigabyte's 3x USB Power feature, On/Off Charge enables devices to draw more current from a Gigabyte motherboard's USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.

Due to certain mobile phone limitations, users may need to connect their mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model. Also, 3x USB power design support may vary by model

LAN Optimiser - Intelligent Optimisation Network Management Tool

Gigabyte LAN Optimiser is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing, or online gaming can be prioritised, taking precedence over large data downloads that tend to strangle overall network bandwidth

Gigabyte App Centre

Gigabyte App Centre gives you easy access to wealth of Gigabyte apps that help you get the most from your Gigabyte motherboard. Using a simple and unified user interface, Gigabyte App Centre allows you to launch all Gigabyte apps installed on your system

Gigabyte EasyTune

Gigabyte EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings

Gigabyte Smart Fan 2

As well as offering more system fans, Gigabyte 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. Gigabyte Smart Fan 2 allows you to configure CPU fans and system fans

Gigabyte @BIOS

The Gigabyte @BIOS app allows you to update your system's BIOS from within Windows using a simple and graphical user interface by automatically downloading the latest version from Gigabyte's servers

Gigabyte EZ Setup

Gigabyte EZ Setup combines several key utilities designed to help simplify instal and configuration procedures for several Gigabyte apps including Disk Mode Switch, Smart Connect, EZ Rapid Start, and EZ Smart response
