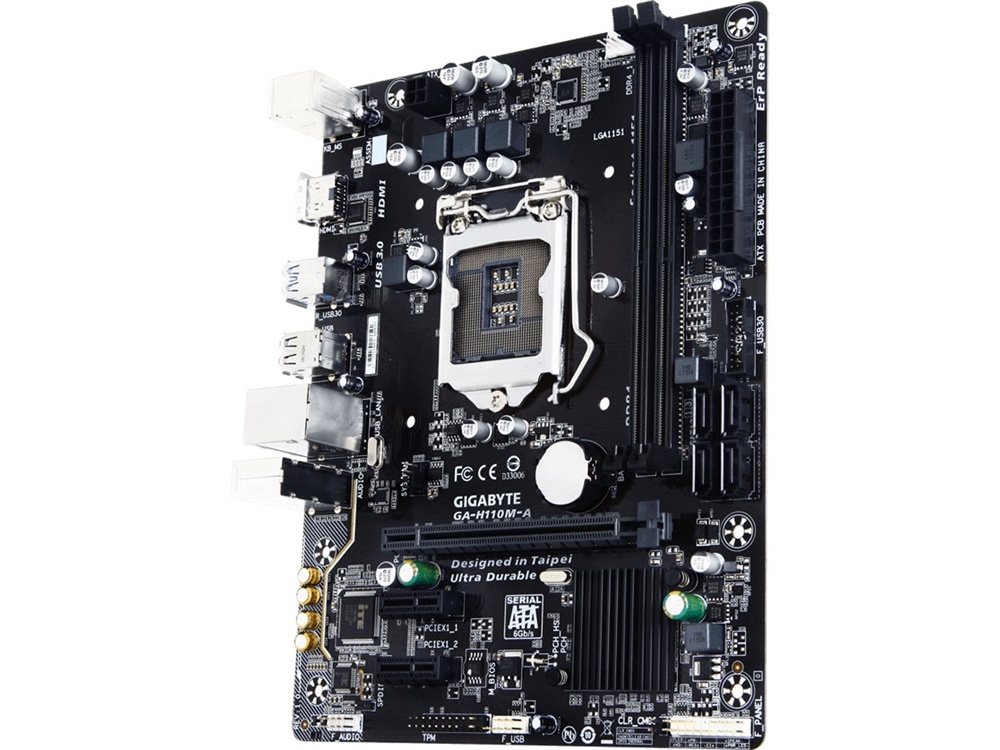

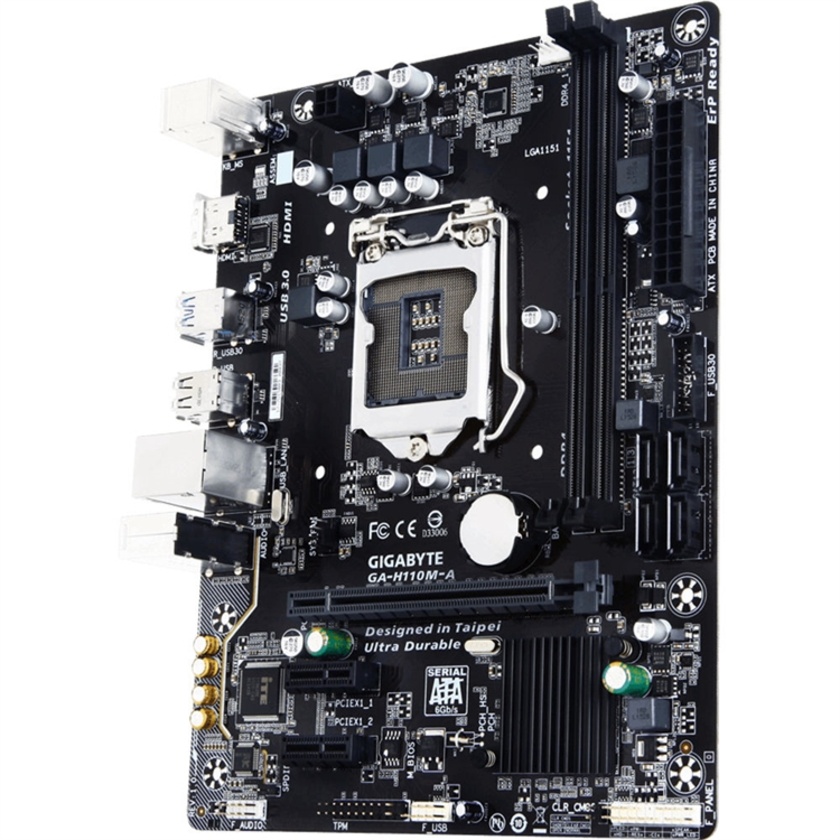

The GA-H110M-A Micro-ATX Motherboard from Gigabyte is an entry-level motherboard that supports Intel's 6th-generation of Skylake processors. It comes with an LGA1151 socket and the H110 express chipset, which delivers support for the four SATA III connectors, two USB 3.0 ports, and four USB 2.0 ports. With two DIMM slots, this motherboard can hold up to 32GB of DDR4 2133 MHz memory modules. For graphics, you can use an integrated Intel HD graphics chipset or instal a dedicated graphics card to the single PCIe 3.0 x16 slot. There are also two PCIe 2.0 x1 slots for expansion cards. To complete the multimedia experience, this motherboard provides audio via three audio jacks along with the Realtek ALC887 audio codec chip. It joins the network via the Realtek Gigabit LAN controller. Other connections included with this motherboard are two PS/2 ports as well as an HDMI port.
Features
Gigabyte Ultra Durable Motherboards
GIGABYTE 100 series motherboards support 6th Generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency, and support for DDR4 memory.
Onboard Audio Design
Delivers high-quality sound resolution and sound expansion to create realistic sound effects for professional users.
Humidity Protection with Glass Fabric PCB
GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a PCB material that reduces the amount of space between the fibre weave, making it more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers better protection from short circuit and system malfunction caused by humid and damp conditions.
High ESD Ethernet & USB Port Protection
Advanced electrostatic discharge (ESD) protection is in place for the Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing of the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and direct lighting strikes.
High Temperature Protection Lower RDS(on) MOSFETs Design
Low RDS(on) MOSFETs are used to reduce energy wastage through unnecessary residual heat dissipation. This amounts to energy savings that are beneficial for end-users and the environment without impacting system performance.
Realtek GbE LAN with cFosSpeed
Realtek GbE LAN features cFosSpeed, a network traffic management application that helps to improve network latency, maintaining low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes less power when it's in idle state in comparison with other LAN controllers.
APP Centre
The Gigabyte APP Centre gives you easy access to a wealth of Gigabyte APPs that help you get the most from your motherboard. Using a simple and unified user interface, the Gigabyte APP Centre allows you to launch all Gigabyte APPs installed on your system.
Cloud Station
Gigabyte Cloud Station is composed of several Gigabyte apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
USB 3.0 Ports Onboard
With superfast transfer rates of up to 5 Gbps, the USB 3.0 ports transfer data 10 times faster than USB 2.0. Additionally, USB 3.0 is backwards compatible with USB 2.0, assuring legacy USB 2.0 devices will still work.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilising approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. Gigabyte motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
HDMI - The Next Generation Multimedia Interface
HDMI is a High-Definition Multimedia Interface which provides up to 5 Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit uncompressed digital video and audio, HDMI ensures crisp rendering of digital content up to 1080p without the quality losses associated with analogue interfaces and their digital-to-analogue conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
Intel Small Business Basics
With a 6th-Generation Intel Core processor, this motherboard offers hardware-enhanced security and productivity solutions with built in IT.
Share File Sharing - instantly share files between two or more users Screen Sharing - share your screen with multiple users and devices Chat - message between two or more users
Security USB Blocker - prevents unwanted USB device access
Specifications
| Processor Supported | Supports Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors in the LGA1151 package |
| Chipset | Intel H110 Express chipset |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Onboard Graphics | Integrated Intel HD Graphics supported 1 x HDMI 1.4 port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz Maximum shared memory of 512 MB |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express 3.0 x16 slot, running at x16 (PCIEX16) 2 x PCI Express 2.0 x1 slots |
| Storage Interface | 4 x SATA 6 Gb/s connectors |
| USB | Chipset: 4 x USB 3.0/2.0 (2 ports on the back panel, 2 ports available through the internal USB headers) 6 x USB 2.0/1.1 (4 ports on the back panel, 2 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12 V power connector 4 x SATA 6 Gb/s connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x HDMI port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x Audio jacks (line-in, line-out, mic-in) |
| I/O Controller | iTE I/O controller chip |
| H/W Monitoring | System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control |
| BIOS | 1 x 64 Mbit flash Use of licenced AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Supported Features | APP Centre Q-Flash Smart Switch Xpress Instal |
| Operating System Supported | Windows 10 and 8.1 64-bit versions Windows 7 32-bit/64-bit versions |
| Form Factor | Micro-ATX |
| Dimensions | 8.9 x 6.9" / 22.6 x 17.4 cm |
