The HIKMICRO PocketE Wi-Fi Thermal Imaging Camera has a high-resolution HIKMICRO VOx detector, an 0.3 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate hidden problems and accurately measure abnormal temperatures. The wide temperature range of -20°C to 350°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspection, and the Wi-Fi function allows the Pocket to share images in real-time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.

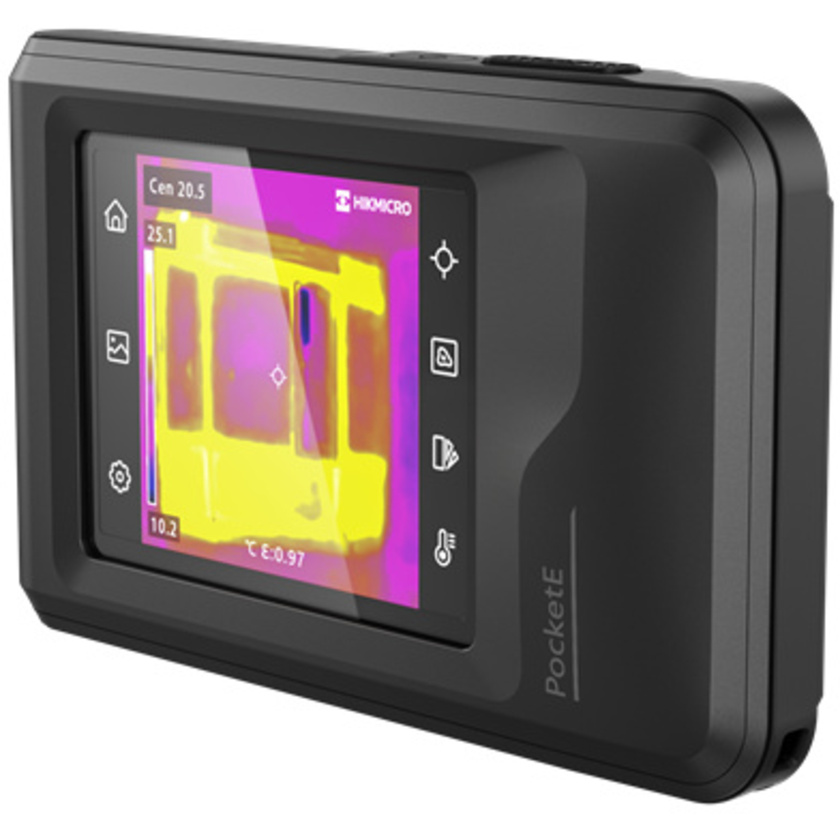

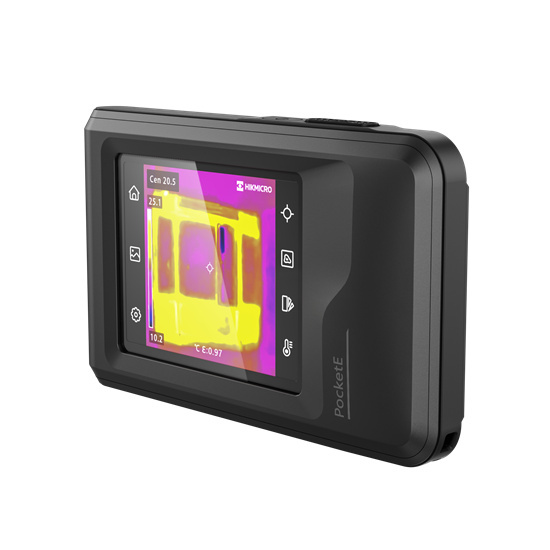

HIKMICRO PocketE Wi-Fi Thermal Imaging Camera
This product is no longer available
Features
- Thermal resolution: 96 × 96
- SuperIR: 240 × 240
- 112 : 1 Distance to spot ratio
- Accuracy: Max. (± 2°C/3.6°F, ± 2%)
- 25 Hz image frequency
- l Thermal, Fusion, PIP, and Visual modes
Description
Specifications
| Infrared Image | |
| IR Resolution | 96 × 96 (9,216 pixels) |
| SuperIR | 240 × 240 (57,600 pixels) |
| Distance to Spot Ratio (D : S) | 112 : 1 |
| NETD | < 50 mK (@ 25°C, F# = 1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 μm to 14 μm |
| Focal Length | 1.35 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad |
| Min. Focus Distance | 0.1 m (0.33 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Visual Camera | 640 × 480 (0.3 MP) |
| Display | 320 × 240 Resolution, 3.5" LCD Touch Screen |
| Screen Brightness | Manual |
| Digital Zoom | 1.0× to 4.0× continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 350°C (-4°F to 662°F ) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen |
| Data Storage and Communication | |
| Storage Media | Built-in 4 GB flash memory |
| Image Storage Capacity | Approx. 30,000 Images |
| Annotations | Voice note: max. 60 seconds Text note: max. 200 characters |
| Video Storage Capacity | Approx. 20 hours |
| Video File Format | MP4 video |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| USB Interface. | USB Type-C |
| LED Light | Yes |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight Approx. | 218 g (0.481 lb) |
| Dimension | 138.45 mm × 85.2 mm × 23.6 mm (5.45" × 3.35" × 0.93") |
| Tripod Mounting | UNC ¼”-20 |
In The Box
- HIKMICRO PocketE Wi-Fi Thermal Imaging Camera
