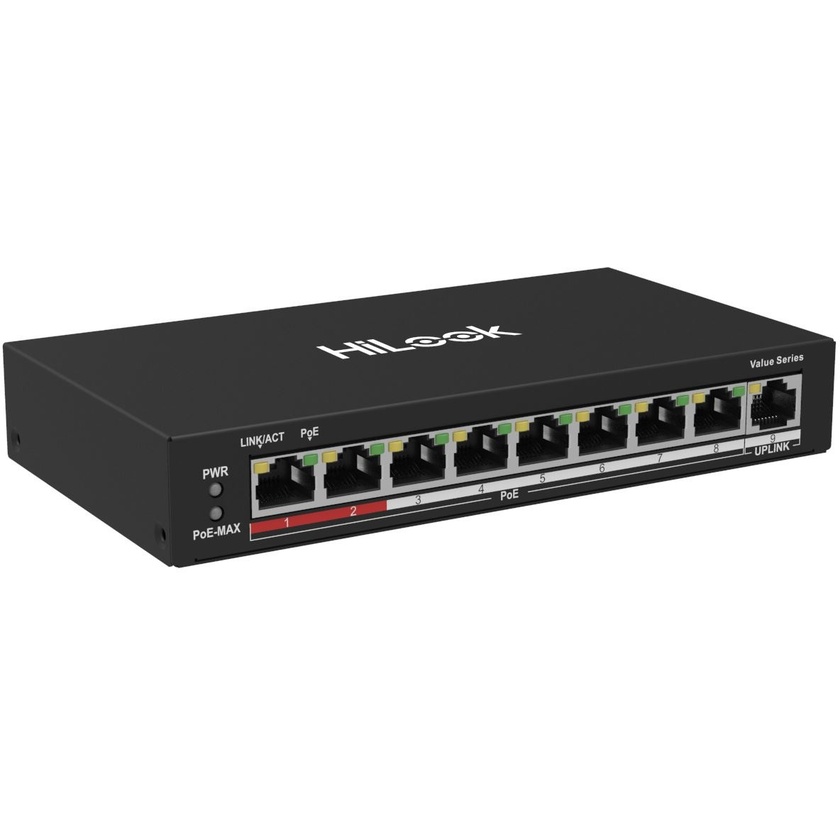

HiLook NS-0109P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch
Features
- 8 × 100Mbps PoE ports
- 1 × 100 Mbps Ethernet port
- IEEE 802.3at/af standard
- High priority ports
- 8-core power supply
- Up to 250m transmission distance
Description
This HiLook NS-0109P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch comes with a 60W power capacity. It features 8x 100 Mbps PoE ports and 1x 100 Mbps Uplink Port, making it suitable for various network setups. With a maximum transmission distance of 250m, it ensures reliable connectivity throughout your network. The switch also supports MAC Address Auto Learning, allowing for efficient communication between devices. Additionally, it complies with the IEEE 802.3at/af standard, ensuring compatibility with a wide range of devices. The switch provides high priority ports and 6KV surge protection for PoE ports, ensuring stable power delivery and protection against power surges. It also offers PoE power management and allows for wire-speed forwarding with its non-blocking design. With store-and-forward switching, the switch efficiently handles data transmission. The switch is housed in a solid, high-strength metal shell and features a reliable fan-free design, ensuring durability and quiet operation.
Specifications
Port number | 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port |
Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Forwarding mode | Store-and-forward switching |
Working mode | Standard mode (default); Extend mode |
High priority ports | Ports 1 to 2 |
Ports for long-distance transmission | Ports 1 to 8 |
MAC address table | 2 K |
Switching capacity | 1.8 Gbps |
Packet forwarding rate | 1.339 Mpps |
Internal cache | 1 Mbits |
PoE standard | IEEE 802.3af, IEEE 802.3at |
PoE power pin | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
PoE port | Ports 1 to 8 |
Max. port power | 30 W |
PoE power budget | 60 W |
Max. power consumption | 65 W |
Shell | Metal material, fan-free design |
Gross weight | 0.89 kg (1.96 lb) |
Net weight | 0.35 kg (0.77 lb) |
Dimension (L × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”) |
Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
Operating humidity | 5% to 95% (no condensation) |
Storage humidity | 5% to 95% (no condensation) |
Power supply | 48 VDC, 1.35 A |
Power consumption in idle | 5 W |
In The Box
- HiLook NS-0109P-60 8 Port 10/100 Fast Ethernet Unmanaged POE Switch
