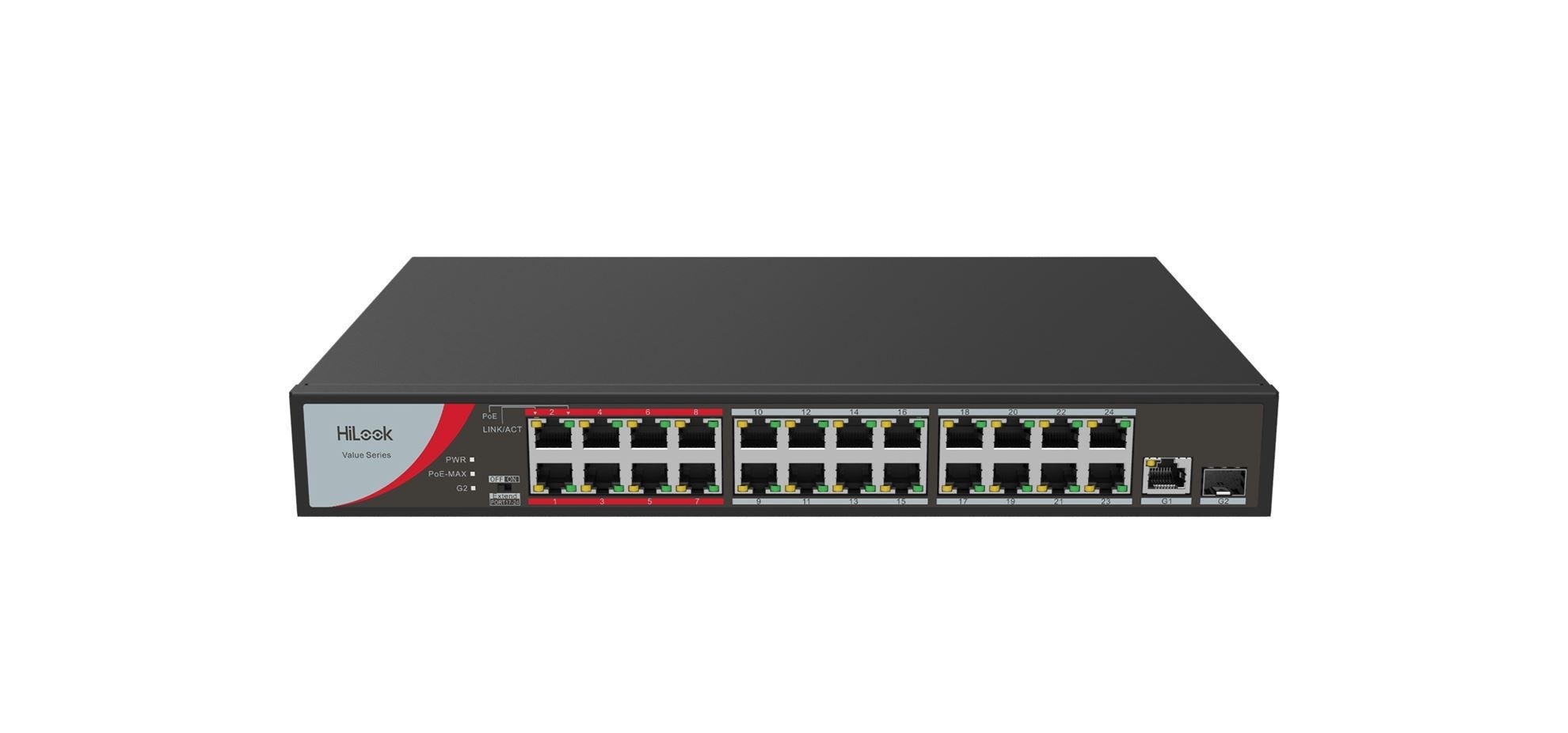

HiLook NS-0326P-230 24 Port 10/100 Fast Ethernet Unmanaged POE Switch
This product is no longer available
Features
- 24× 100 Mbps PoE ports
- 1× 1000 Mbps RJ45 port
- 1× 1000 Mbps SFP fibre optical port
- EEE 802.3at/af standard
- High-priority ports
- 8-core power supply
Description
The HiLook NS-0326P-230 24 Port 10/100 Fast Ethernet Unmanaged POE Switch includes 24x 100Mbps PoE ports, 1x 100Mbps uplink port, and 1x 1000Mbps SFP fiber optical port. It complies with IEEE 802.3at/af, IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards. Additionally, it features high-priority ports, 8-core power supply, and up to 250m transmission distance. The switch ensures 6KV surge protection for PoE ports and offers PoE power management. It also supports 1000Mbps network access, wire-speed forwarding, and non-blocking design. The switch is housed in a solid high-strength metal shell.
Specifications
| Port number | 24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| High priority ports | Ports 1 to 8 |
| Ports for long-distance transmission | Ports 17 to 24 |
| MAC address table | 4 K |
| Switching capacity | 8.8 Gbps |
| Packet forwarding rate | 6.547 Mpps |
| Internal cache | 2.75 Mbits |
In The Box
- HiLook NS-0326P-230 24 Port 10/100 Fast Ethernet Unmanaged POE Switch
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: HiLook NS-0326P-230 24 Port 10/100 Fast Ethernet Unmanaged POE Switch
- Manufacturer: HiLook
- Model: NS-0326P-230
- SKU: NS-0326P-230
- RM Product #: 109942
