HighPoint RR2314 External RAID Controller

Product #7425 | SKU RR2314 | HighPoint
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Overview

4 ports, 4x SATA ports, PCI-E x4, Host Adapter (SATA II)

Description

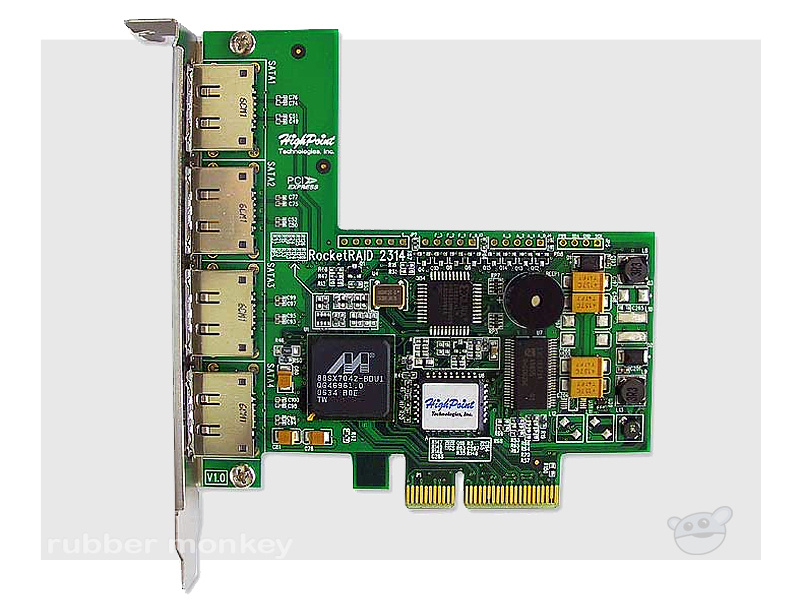

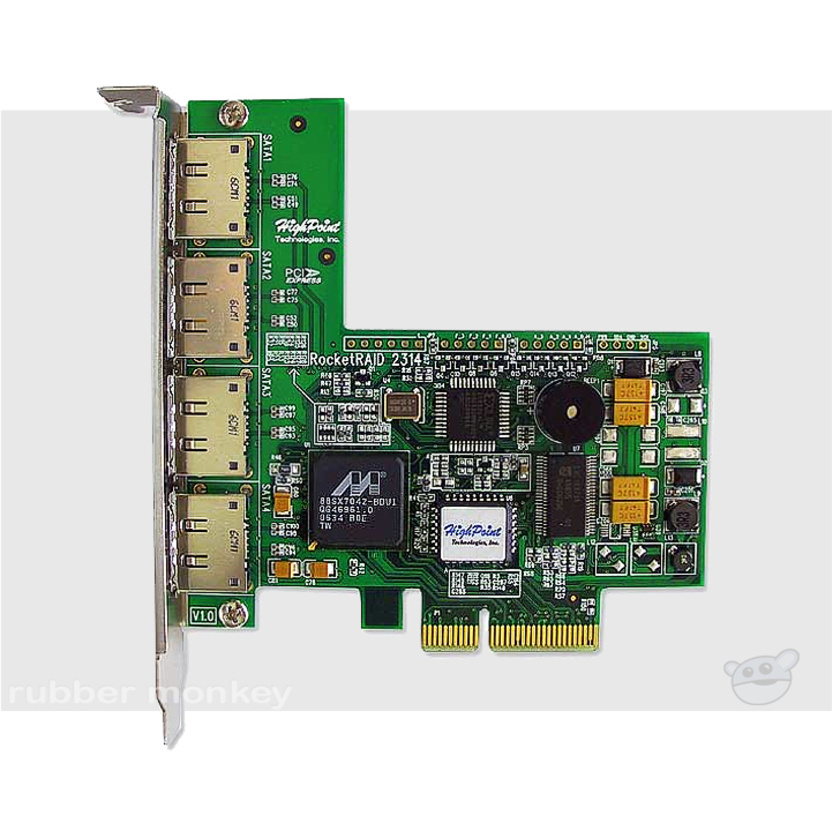

The HighPoint RR2314 External RAID Controller
4 ports, 4x SATA ports, PCI-E x4, Host Adapter (SATA II)

Initially SATA was designed as an internal or inside-the-box interface technology, bringing improved performance and new features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, bringing the same performance and features to external storage needs instead of relying on USB or 1394 interfaces.

Features:

  • PCI-e x4 (x8 and x16) slot compatible
  • 4 External eSATA II ports at 3Gb/s per port
  • Up to 4 SATA II Hard Drives
  • Support RAID 0, 1, 5, 10, and JBOD
  • Dynamic Sector Repair and Remapping
  • Native Command Queuing (NCQ) for improved random performance
  • Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)
  • Staggered drive spin up
  • Write through and write back cache for RAID arrays
  • BIOS Booting (INT13) to RAID array
  • Quick and Background initialization for instant RAID access
  • Hot swap and hot spare
  • Online array roaming
  • Automatic detect drive to rebuild degraded RAID
  • S.M.A.R.T array monitoring for hard drive status and reliability
  • 64bit LBA for RAID arrays greater than 2TB
  • Web browser-base software (Web GUI)
  • Command Line Interface (CLI)
  • SMTP email notification for events and error reporting
  • Remote array management through (Web GUI, RAID GUI and CLI)
  • RoHS Compliant

Specifications:
Supported RAID Feature: RAID 0, 1, 5, 10, and JBOD
HighPoint RAID Management (HRM) Suite:

  • Web GUI management utility
  • CLI (Command Line Interface)
  • BIOS Management

Operating Temperature:

  • Work Temp +5° C ~+ 55° C
  • Storage Temp ~20°C ~ 80° C
  • Relative Humidity 5% ~ 60% non condensing

Operating Voltage: PCI-e : 3.3v / Power: 10 W
Regulator Certification:

  • FCC / CE
  • MTBF Mean Time Before Failure 920,585 Hours

Operating System Support:
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit
Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
FreeBSD
Mac OS X
Linux Open Source Drivers

Package Contents:
RocketRAID 2314 Series SATA RAID Controller
RocketRAID SATA user manual
Low profile bracket
Software CD with (Drivers and Manual) 3 year warranty

Reviews

0.0 (no ratings yet)

Details

  • Product: HighPoint RR2314 External RAID Controller
  • Manufacturer: HighPoint
  • Model: RocketRAID 2314
  • SKU: RR2314
  • RM Product #: 7425
