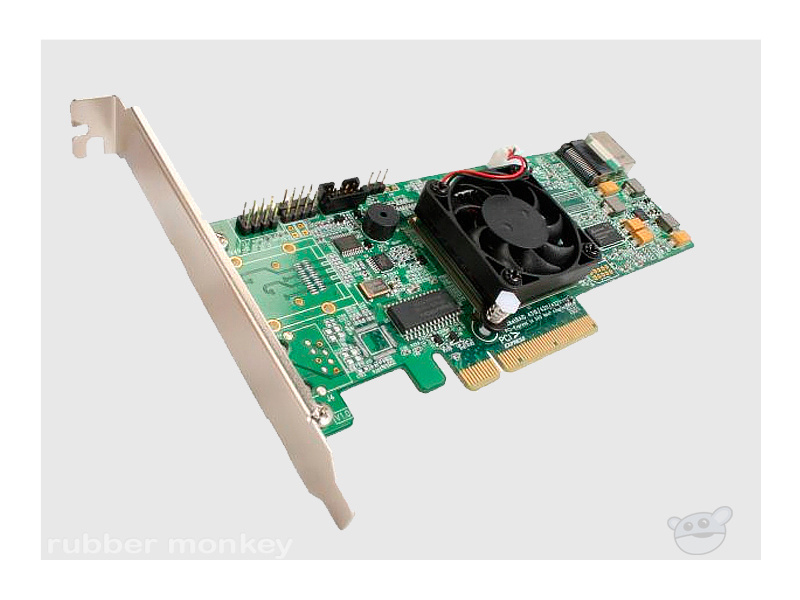

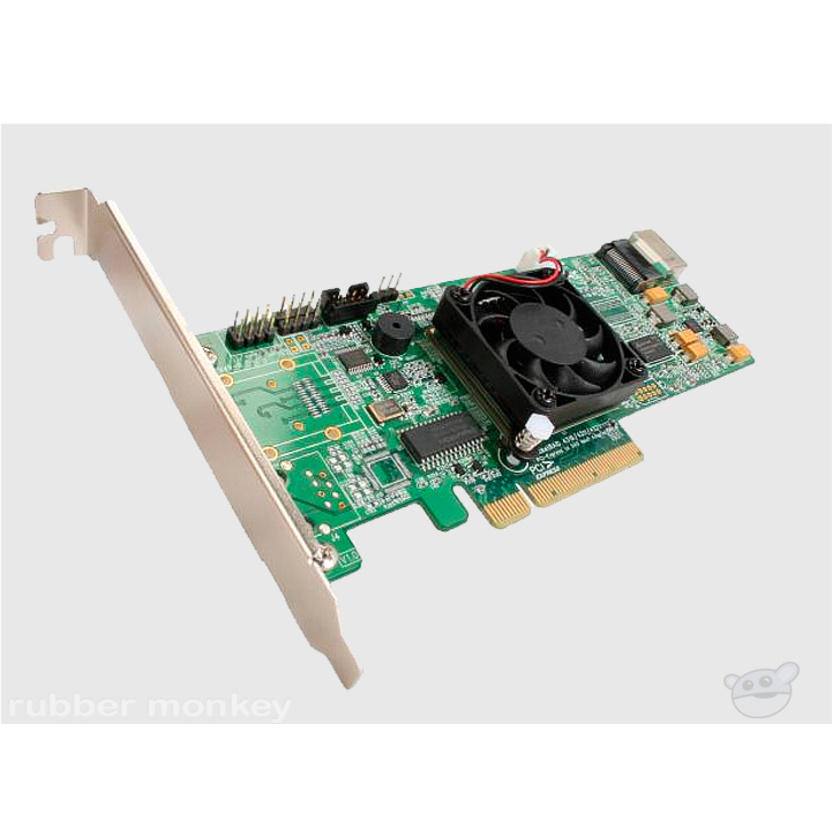

The HighPoint RR4310 Internal RAID Controller
4 port, 1x internal miniSAS, PCI-E x8 Host Adapter (IOP/SAS/SATA II)
Features:
Host Adapter Architecture:
Intel IOP348 (800 MHz)
Up to 256MB DDR-II Memory
PCI-Express x8
1 internal mini-SAS/SATA Device connector
Up to 4 SAS/SATA Hard Drives 128 max hard drives via SAS expanders
NCQ (Native Command Queuing)
NVRAM
Battery Backup Unit Ready (BBU-03)
Low Profile
Supported RAID Feature:
RAID Levels 0, 1, 3, 5, 6, 10 and JBOD
Multiple RAID Support
Online Array Roaming
Automatic RAID Rebuild
Automatic Drive Insertion
Quick Initialization
Online Capacity Expansion / Online RAID Level Migration
Hot Spare - (global)
Configurable stripe size
Staggered Drive Spin-up
Bad Sector Repair and Remapping
BIOS Booting Support
HighPoint RAID Management (HRM) Suite:
Web GUI management utility
CLI (Command Line Interface)
Firmware / BIOS Management
Alert & Indicator:
SMTP (Email Notification)
(Hard drive activity and failure) LED
SAF-TE chassis environment monitoring
Specifications:
Operating Temperature:
- Work Temp +5° C ~+ 55° C
- Storage Temp ~20°C ~ 80° C
- Relative Humidity 5% ~ 60% non condensing
Operating Voltage PCI-e : 12 V 3.3V/ Power: 12V - 15W
Regulator Certification:
- FCC / CE
- MTBF Mean Time Before Failure 920,585 Hours
Operating System Support:
Microsoft Windows 2008/2003/XP/ 2000/x64 Edition/Vista 32 and 64 bit
Red Hat Enterprise Linux, Open SuSE, Fedora Core, Debian
FreeBSD
Mac OS X
Linux Open Source Drivers
Native Support in Linux kernel 2.6
Package Contents:
RocketRAID 4310 Series SAS/SATA Hardware RAID Controller
RocketRAID SAS/SATA user manual
Software CD with (Drivers and Manual)
Low profile bracket
1 internal mini-SAS to internal mini-SAS (SFF-8087 to SFF-8087)
3 year warranty
