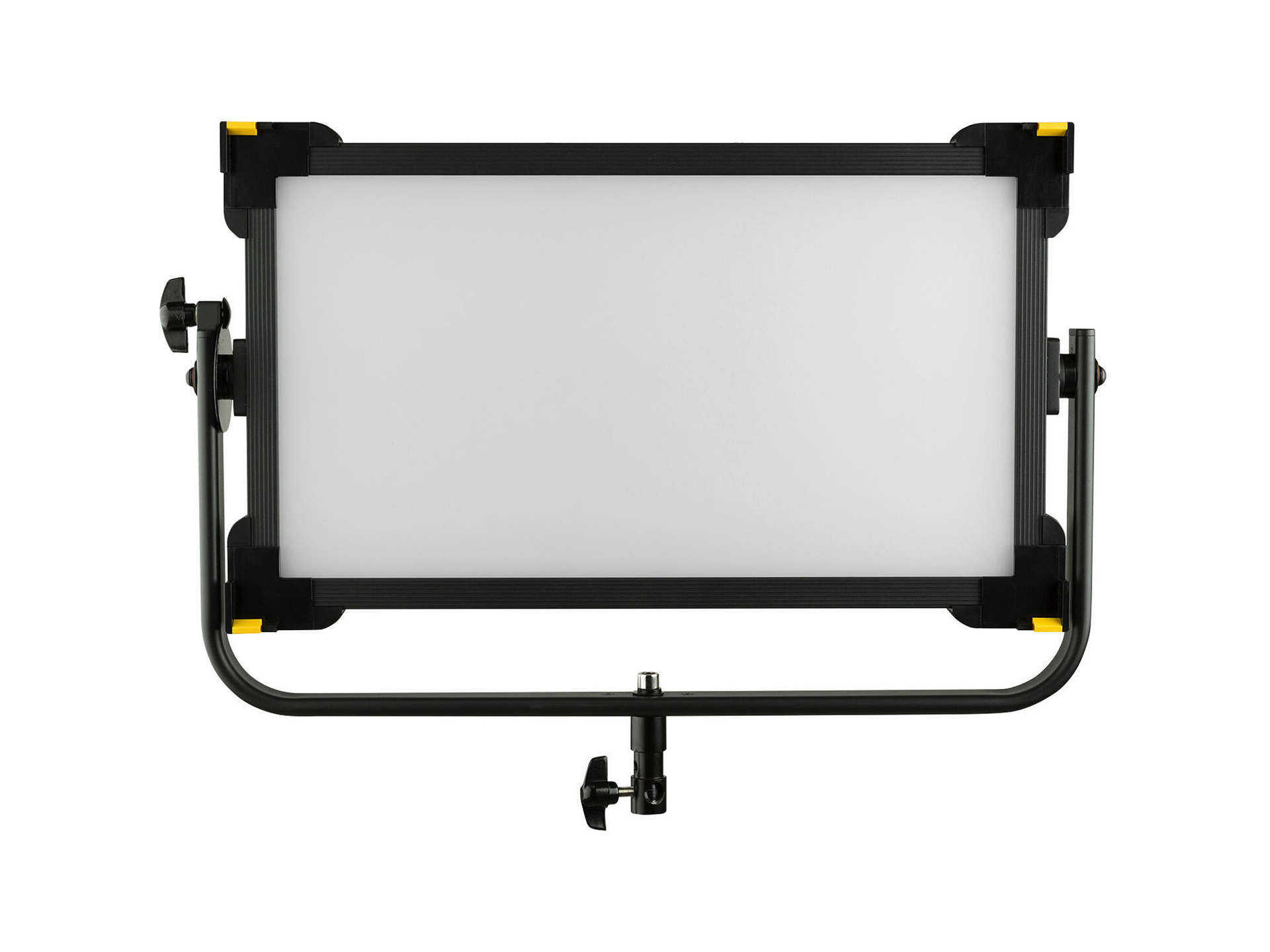

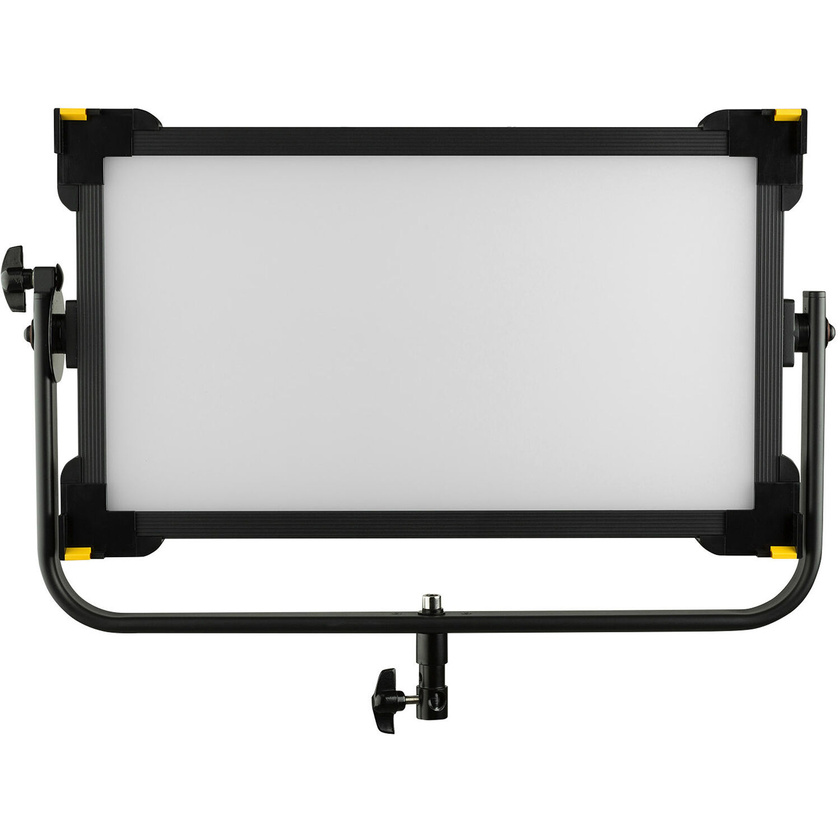

Ikan Lyra 1 x 2 Daylight LED Light Panel

Product #120172 | SKU LWX20 | Ikan
Usually ships in 1 - 2 weeks what does this mean?
Our Price $2,929 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $337 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • For Studio & Film/TV Production
  • Output: 5816 Lux at 3.3' (5600K)
  • 5600K CCT
  • 20 x 29" Panel; AC Power
  • CRI 95
  • Onboard & DMX Control

Description

Combining advanced CRI LEDs along with an integrated soft panel, the Ikan Lyra 1 x 2 Daylight LED Light Panel is engineered to provide diffused light with minimal shadows at a wide beam angle of 110°. With a consistent colour temperature of 5600K, this light is suitable for various studio lighting needs. The LWX20 model offers a powerful diffused light output of 5816 lux at 3.3', making it perfect for interview setups and broadcast environments.

Featuring a convenient single knob for on-board dimming ranging from 10 to 100%, the fixture also includes DMX in and out ports for external control using a separate console. A user-friendly LED screen on the back side allows for easy monitoring of output levels. The Lyra LWX20 is equipped with an active or passive fan cooling system that can be toggled on or off as needed, and accepts power input from 100 to 220 VAC. This product comes with a yoke that includes a 5/8" (baby) and 1-1/8" (junior) combo pin, compatible with most standard grip stands.

Specifications

Key Specs
Item Type 1x COB LED Light Panel
Included Storage Case No
Photometrics 5600K:
540 fc / 5816 Lux at 3.3' / 1 m*
63 fc / 687 Lux at 9.8' / 3 m
30 fc / 323 Lux at 14.8' / 4.5 m

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 5600K
Colour Modes Daylight
Colour Accuracy Standard CRI 95
Dimming Built-In Dimmer
 • 10 to 100%
Front Accessory Mount Proprietary
Power Source AC to DC Adapter (Included)
Input Power 24 VDC
100 to 220 VAC, 50 / 60 Hz
Power Consumption 205 W
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver
Light Fixture
Item Type 1x COB LED Light Panel
Included Filters Soft Diffusion
Included Storage Case No
Photometrics 5600K:
540 fc / 5816 Lux at 3.3' / 1 m*
63 fc / 687 Lux at 9.8' / 3 m
30 fc / 323 Lux at 14.8' / 4.5 m

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 5600K
Colour Modes Daylight
Colour Accuracy Standard CRI 95
Dimming Built-In Dimmer
 • 10 to 100%
Cooling System Fan
Beam Angle 110°
Built-In Flash No
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Mobile App Compatible No
Power & I/O
Power Source AC to DC Adapter (Included)
Inputs/Outputs 1x Unspecified Power Input
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
Input Power 24 VDC
100 to 220 VAC, 50 / 60 Hz
Included Adapter / Cable 1x USA Type-A/B to Unspecified AC to DC Adapter
 • 27.2 VDC
Inline Switch No
Power Pass-Thru No
Power Consumption 205 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver
General
Display LED
Environmental Resistance No
Materials Metal, Plastic
Dimensions 29 x 20 x 5" / 73.7 x 50.8 x 12.7 cm (Fixture)
Weight 18 lb / 8.2 kg (Fixture)

In The Box

  • ikan Lyra 1 x 2 Daylight LED Light Panel
  • Yoke Mount
  • Power Cord
  • Power Supply

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Ikan Lyra 1 x 2 Daylight LED Light Panel
  • Manufacturer: Ikan
  • Model: LWX20
  • SKU: LWX20
  • RM Product #: 120172
  • Colour Temperature: 5600K
