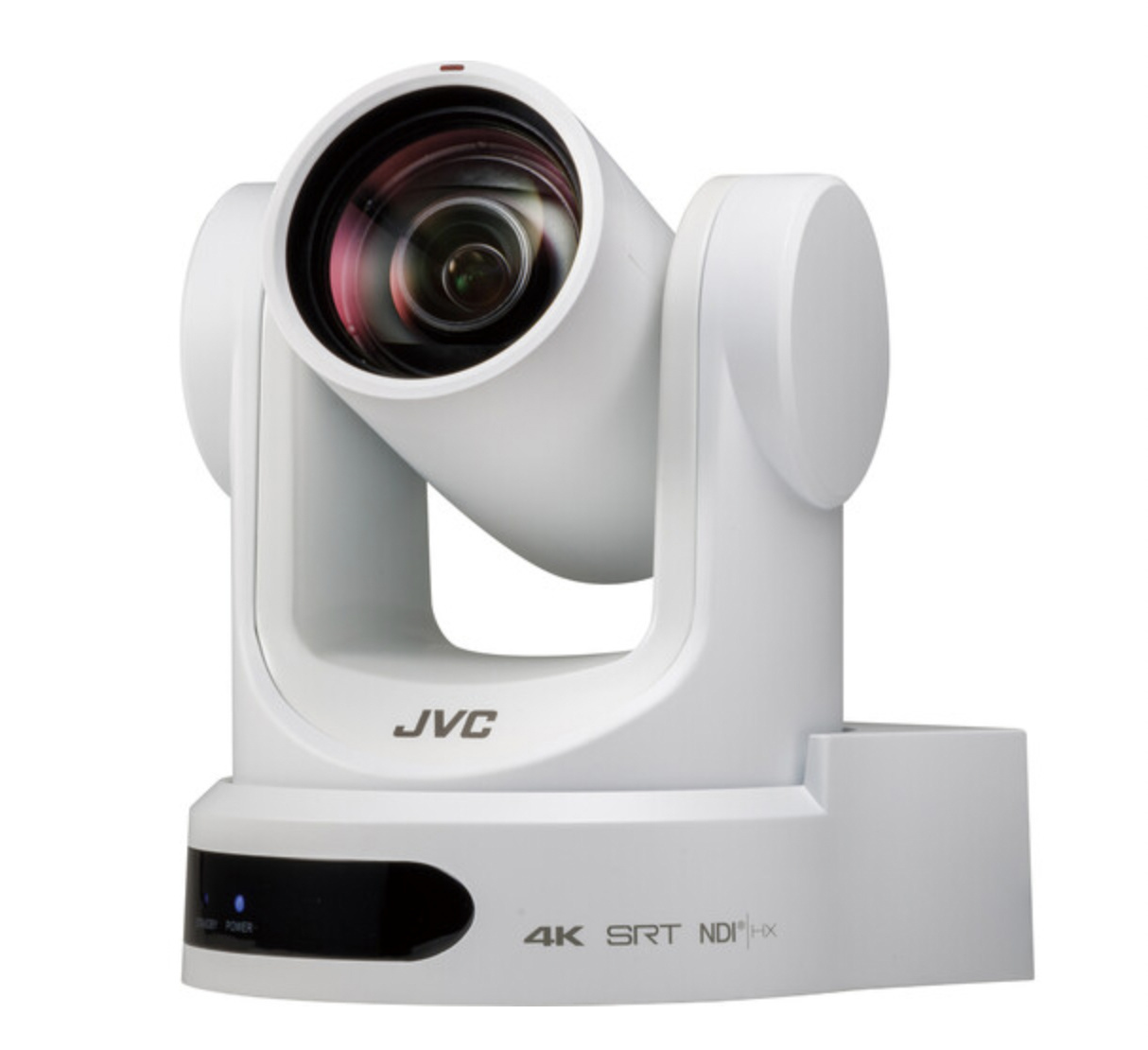

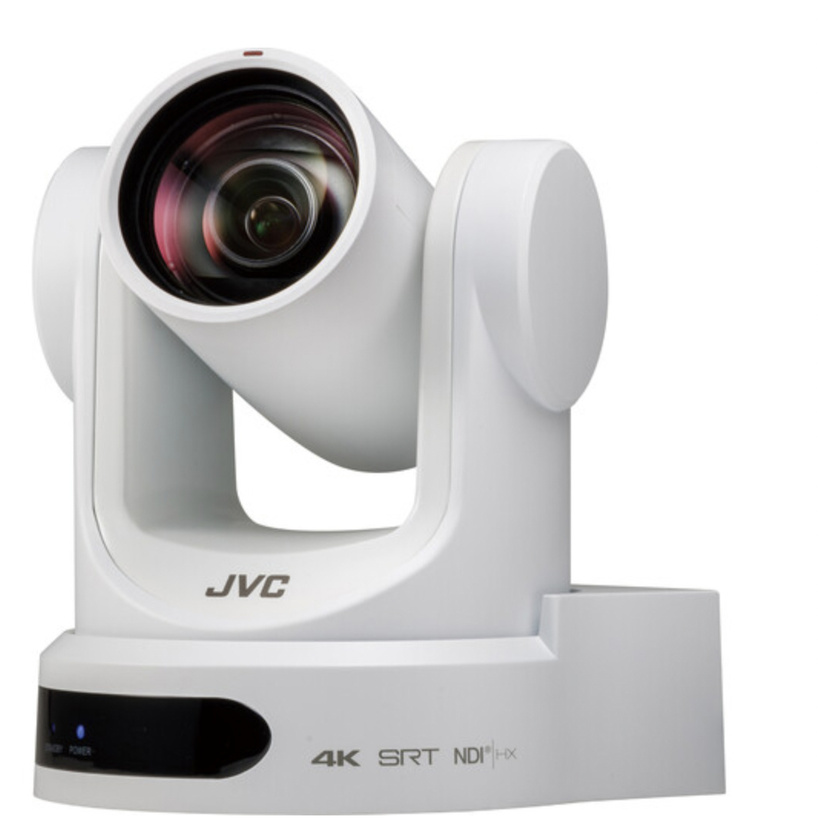

The JVC KY-PZ400N 4K NDI|HX PTZ Remote Camera with 12x Optical Zoom features UHD 4K resolutions up to 2160p30, HD up to 1080p60, a 1/2.5" HD CMOS sensor, and an integrated 12x optical zoom lens with 16x digital zoom to capture crisp imagery for your event production, house of worship, classroom, meeting room, or web conference. The camera offers multiple video output options including HDMI, 3G-SDI, NDI|HX, and IP streaming.
In addition to HDMI up to UHD 4K and 3G-SDI up to 1080p60 video capture, the camera will fit seamlessly into your NDI network and communicate with other NDI applications and hardware using the high-compression, high-quality NDI|HX protocol. The camera also supports H.264/H.265 compression and it transmits IP video streams using SRT, RTSP, RTMP, and HTTP protocols. You can set the camera to rapidly move between positions using IP RS-485, or RS-232 control with separately available serial controllers, or you can utilise the included IR remote control. The camera features 3.5mm analog line audio input and output. Also supported for multi-camera productions are VITC and NTP synchronisation for event production support that requires timecode and real-time clock sync.
The camera can be powered using the included power adapter, or it can be powered using PoE (Power-over-Ethernet) on a supported network. A ceiling bracket is included, and you can flip the camera image when it is mounted upside-down.
Key Features
- PTZ camera with 1/2.5" CMOS 8.51 MP sensor that captures up to UHD 4K 3840 x 2160p30 or HD 1920 x 1080p60 video
- NDI|HX output over LAN support will fit into any standard NDI network with high-quality, low-bandwidth streams
- 12x optical zoom, 16x digital zoom lens
- Multi-camera VITC (Vertical Interval Timecode) and NTP (Network Time Protocol) synchronisation
- HDMI and 3G-SDI video outputs as well as IP streaming via SRT, RTMP, RTSP, and HTTP
- Serial control over RS-232, RS-485 as well as IR remote control and IP control/config
- PoE (Power-over-Ethernet) support
- H.264/H.265/MJPEG video compression
- 3.5mm analog audio input and output
