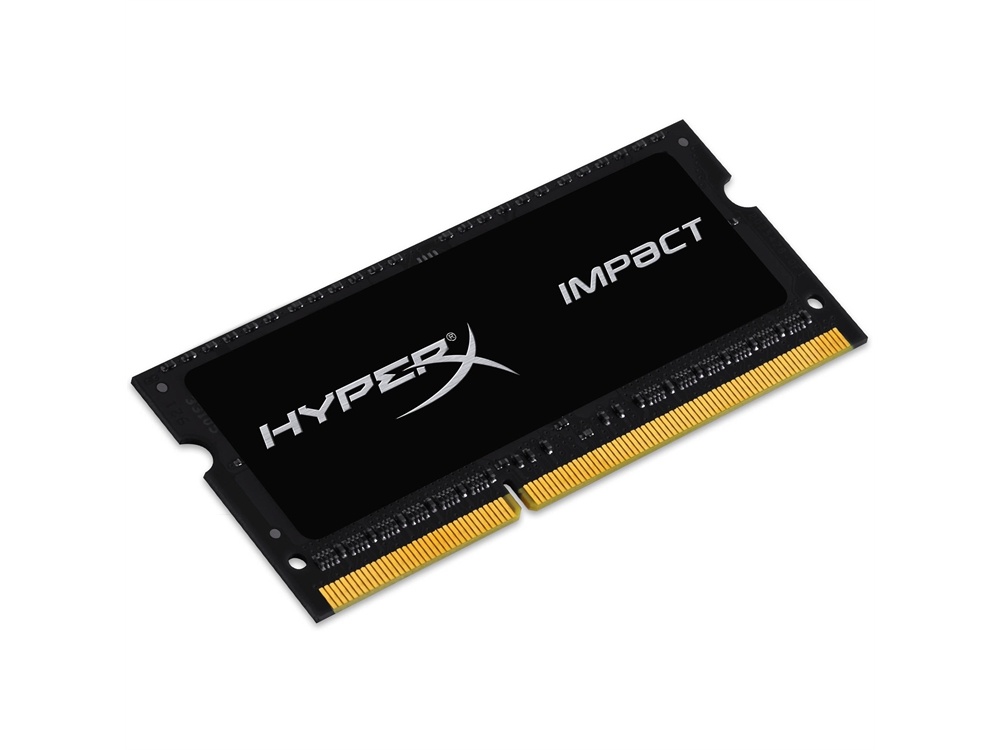

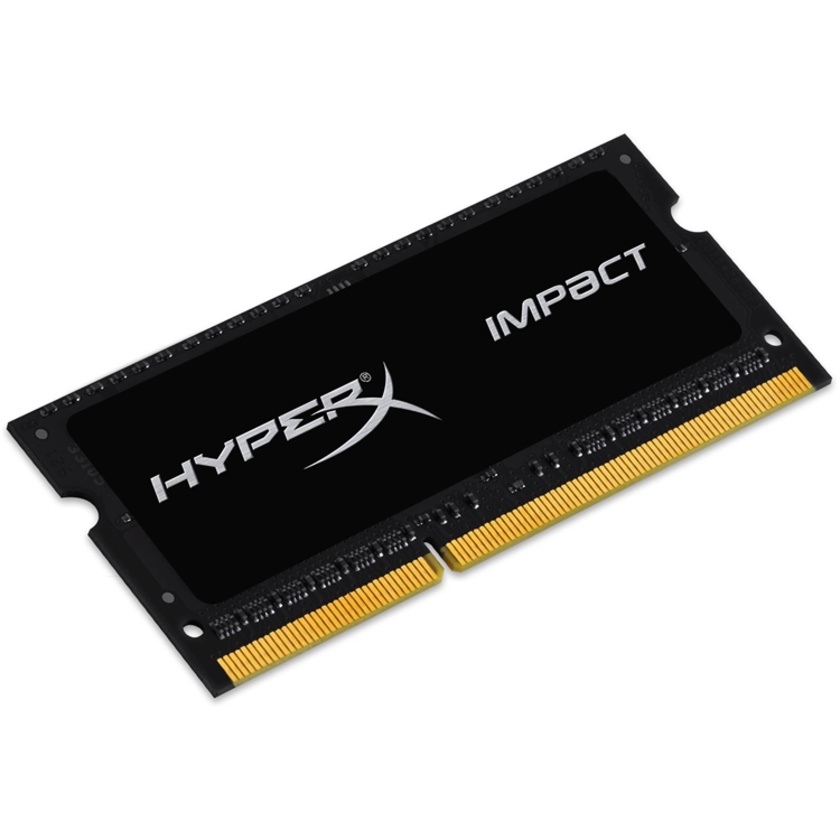

Kingston 4GB HyperX IMPACT DDR3L 1600 MHz SO-DIMM Memory Module (Black)

The 4GB HyperX IMPACT DDR3L 1600 MHz SO-DIMM Memory Module from Kingston is an unbuffered, non-ECC, single-rank module based on eight 512M x 8-bit DDR3 FBGA components. This DDR3L module, the L standing for Low-Voltage, can operate at 1.35V to help reduce energy consumption, as opposed to the 1.5V required by standard DDR3 RAM. Furthermore, it features adjustable timings ranging from 9-9-9 to 6-6-6. Please note that to lower the timings, you'll have to lower its clock frequency as well. With more RAM, you can boot up quicker, have more programmes and files open, and be able to quickly switch between applications without much delay.

Features

PnP JEDEC Timing Parameters

DDR3-1600 CL9-9-9 @ 1.35 V or 1.5 V DDR3-1333 CL8-8-8 @ 1.35 V or 1.5 V DDR3-1066 CL6-6-6 @ 1.35 V or 1.5 V #### Features ####

• JEDEC standard 1.35V (1.28 to 1.45V) and 1.5V (1.425 to 1.575V) power supply
• 800 MHz fCK for 1600 Mb/s per pin
• 8 independent internal banks
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS)
• Bi-directional differential data strobe
• Internal self-calibration through ZQ pin (RZQ: 240 ohms ± 1%)
• On-Die Termination using ODT pin
• Average refresh period 7.8 us at lower than TCASE 185°F (85°C), 3.9 us at 185°F (85°C) < TCASE = 203°F (95°C)
• Asynchronous reset
• Row Active Time (tRASmin): 33.75ns (min.)
