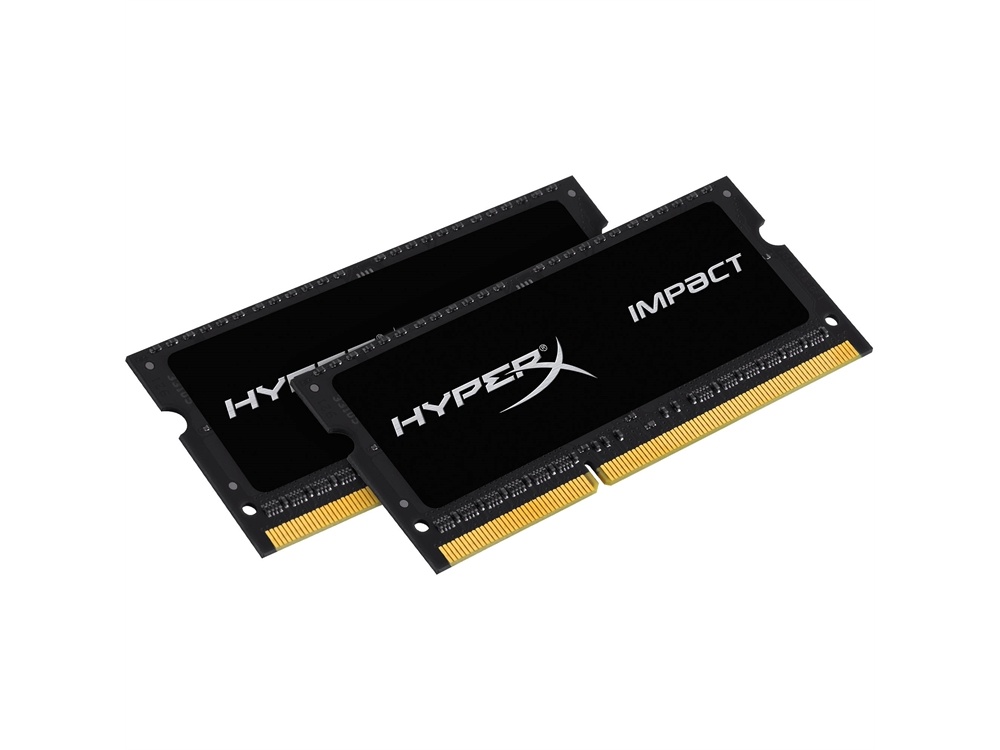

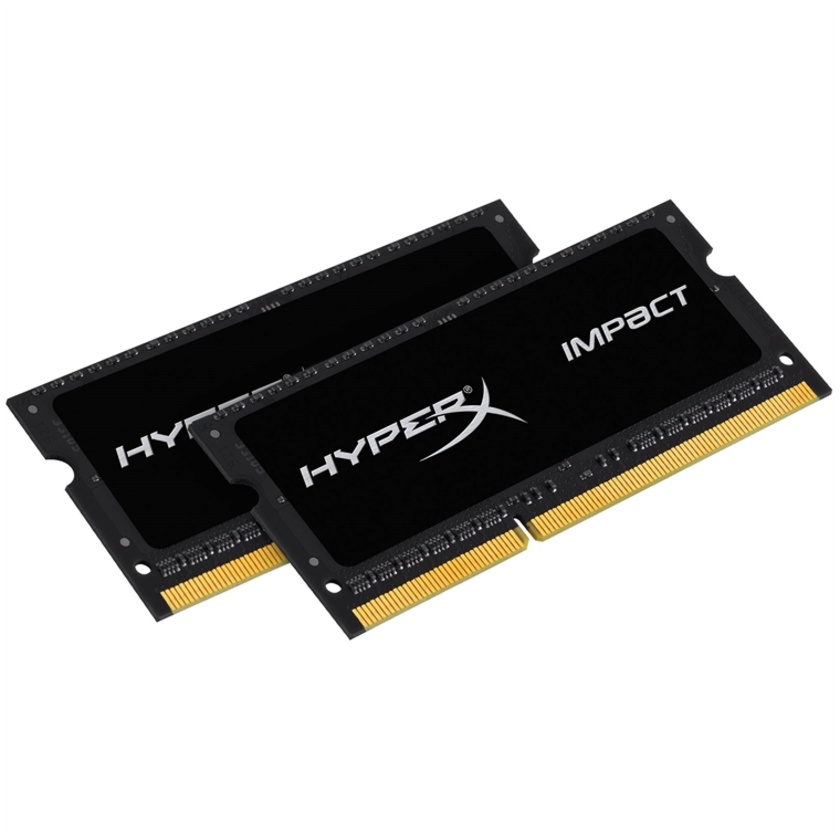

Upgrade the memory in your compatible system using the 8GB HyperX IMPACT DDR3L 1600 MHz SO-DIMM Memory Kit from Kingston . This memory kit features a capacity of 8GB, which comes in a configuration of 2 x 4GB, a clock speed of 1600 MHz (PC3-12800), a 204-pin SO-DIMM form factor, operates using either 1.35 or 1.5V, and has latency timings of 9-9-9. Adding more memory to your system will help boost its capabilities, including improving system performance and application responsiveness. Start-up times will be improved with fewer delays during routine operations, and more programmes will be able to run simultaneously with easier switching between them. This memory kit is protected by a limited lifetime warranty.
Features
General Features
- DDR3-1600 CL 9-9-9 @ 1.35 or 1.5V
- VDDQ = 1.35V (1.28 ~ 1.45V) and 1.5V (1.425 ~ 1.575V)
- JEDEC standard 1.35V (1.28 to 1.45V) and 1.5V (1.425 to 1.575V) power supply
- 800 MHz fCK for 1600 Mb/s per pin
- 8 independent internal banks
- Programmable CAS Latency: 11, 10, 9, 8, 7, 6
- Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS)
- Bi-directional differential data strobe
- Internal self-calibration through ZQ pin (RZQ: 240 Ohms ± 1%)
- On-Die Termination using ODT pin
- Average Refresh Period 7.8 µs at lower than TCASE 85°C, 3.9 µs at 85°C < TCASE = 95°C
- Asynchronous reset
- PCB: Height 1.180", double sided component
Specifications
| Capacity | 8 GB |
| Kit Configuration | 2 x 4 GB |
| Speed | PC3-12800 (1600 MHz) |
| Memory Type | DDR3L |
| DIMM Type | 204-Pin SO-DIMM |
| Buffered/Registered | No |
| Error Correction (ECC) | Non-ECC |
| Voltage | 1.35/1.5 V |
| CAS Latency | CL9 |
| Memory Rank | Single Rank |
