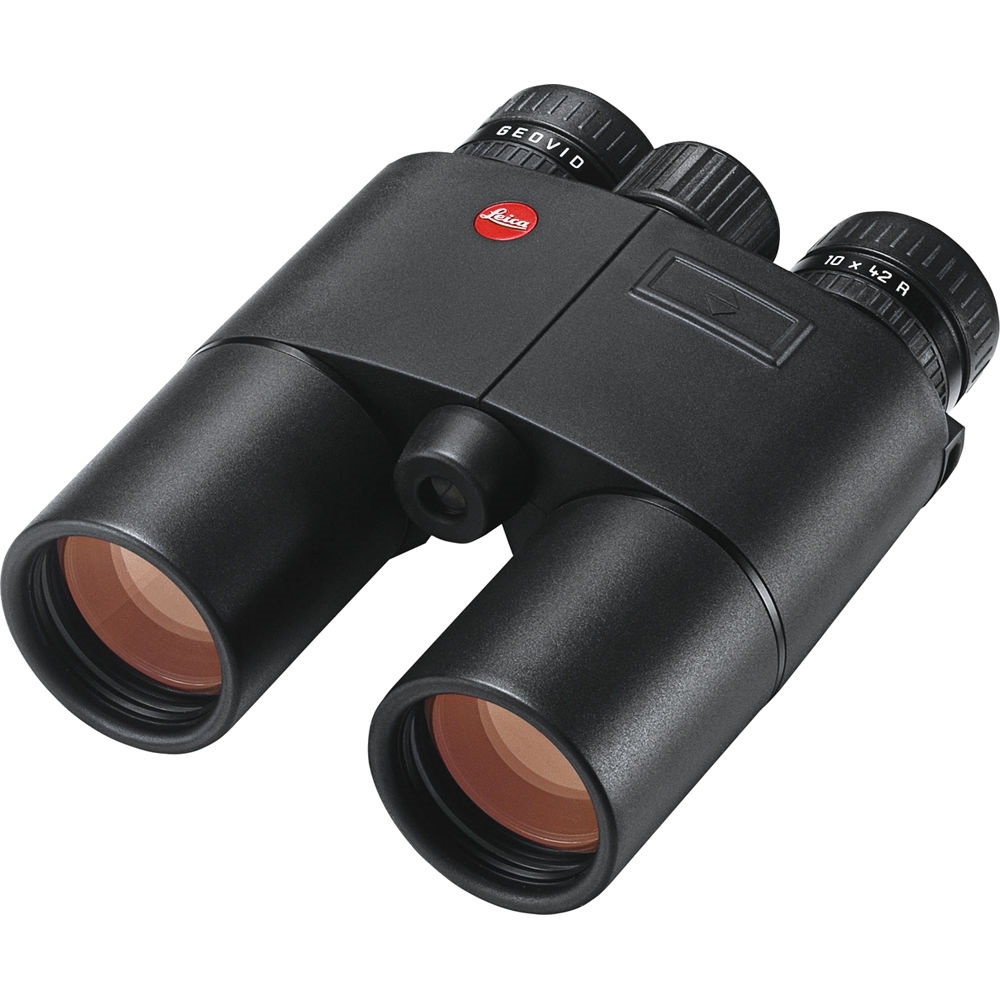

Leica fuses the image quality of a fully multi-coated optical path with the practicality of an 1100-metre laser rangefinder and integrated ballistics calculator to create its Leica Geovid R 10x42 Binocular/Rangefinder. Using an infrared laser rangefinder and a built-in inclinometer, the on-board computer adjusts the displayed range for more precise shot placement with an in-view four-character LED display that allows the observer to view the range without having to take their eyes off the subject. This version of the Geovid displays distances in metres and yards, and is controlled with a convenient single push button.
Complementing its ranging qualities, the Geovid sports Leica's proprietary anti-reflection lens coatings to boost light transmission and improve colour and contrast. The combination of a powerful 10x magnification and a wide 63° viewing angle provide an immersive observational experience while being highly functional for mid to long-range use. Protecting the optics and electronics is a lightweight and durable aluminium alloy chassis that is nitrogen-filled for fogproof and waterproof performance in extreme conditions. It is wrapped in a protective armour that also provides a slip-resistant grip, especially in cold and wet weather.
Key Features:
Optical Performance
- 10x magnification.
- 42mm objectives.
- Compact roof prisms.
- HDC anti-refection fully multi-coated optics improve light transmission, colour fidelity, and contrast.
- 100m field of view at 1000 yards.
- Wide 63° apparent viewing angle.
Laser Rangefinder
- Measures range in metres and yards
- Simple one-button design
- FDA Class 1 eye-safe IR laser
- Range: 10 to 1100 metres.
- Measuring accuracy: ±1 metre to 350 metres, ±2 metres to 700 metres, ±0.5% past 700 metres.
- Spot mode: Use spot for stationary single measurement.
- Scan mode: Use scan for continuous measurement to a moving or multiple targets.
- Display: In-view LED with four characters that automatically adjusts to ambient light and displays measurements in metres and yards.
- EHR ballistics function: Utilises a built-in inclinometer to measure angle to target relative to use as welll as adjusts distance for more accurate hold-over/under.
- Runs on one CR2 lithium battery: Approximately 2,000 measurements at 68°F (20°C)
Use and Handling
- Closed-bridge configuration.
- Two-position twist-up click-stop rubber eyecups for use with or without eyewear.
- Large knurled centre focus wheel.
- Tripod mountable with optional adapter.
- ±4 dioptre correction range.
- 4.2mm exit pupil.
