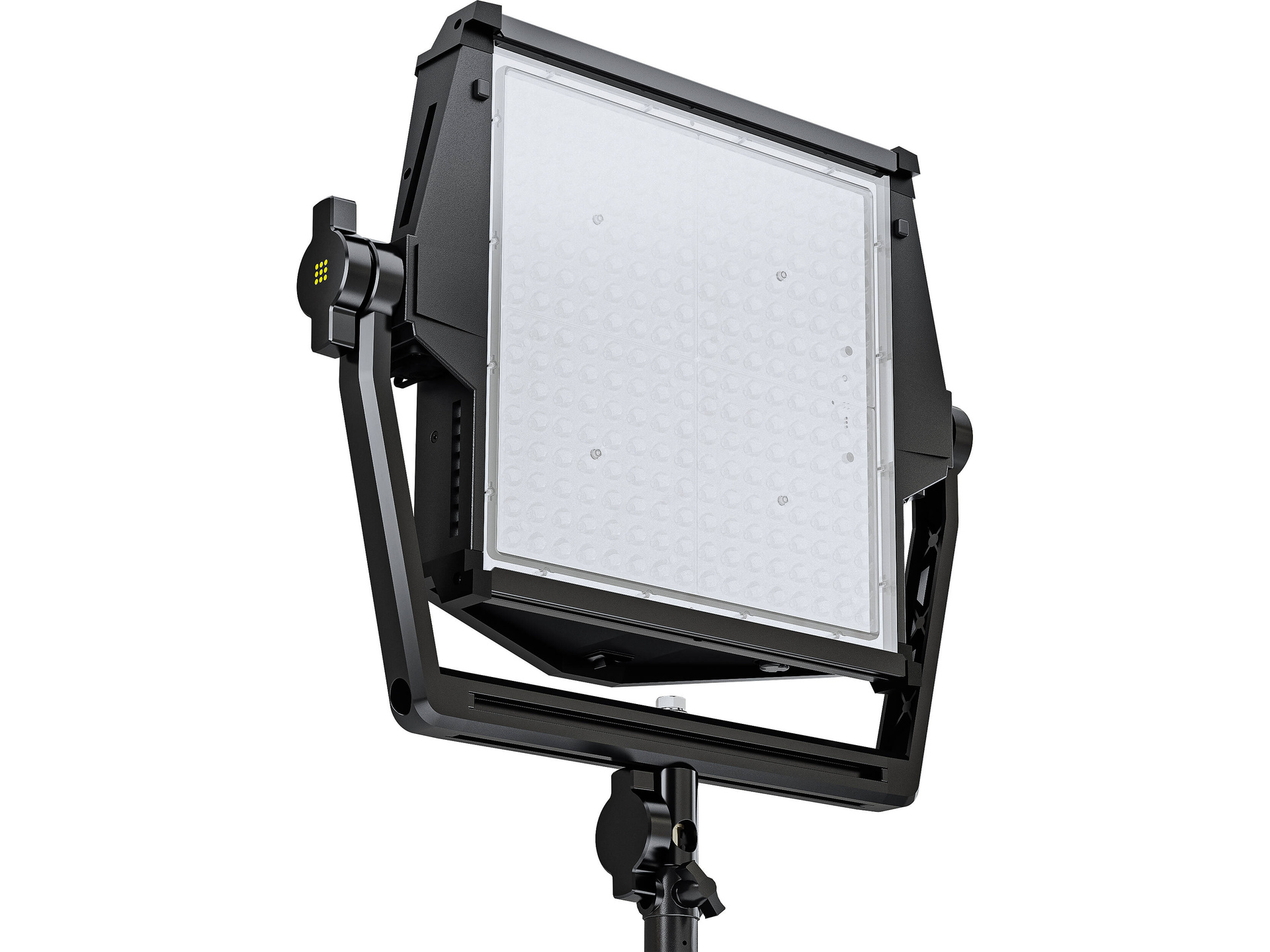

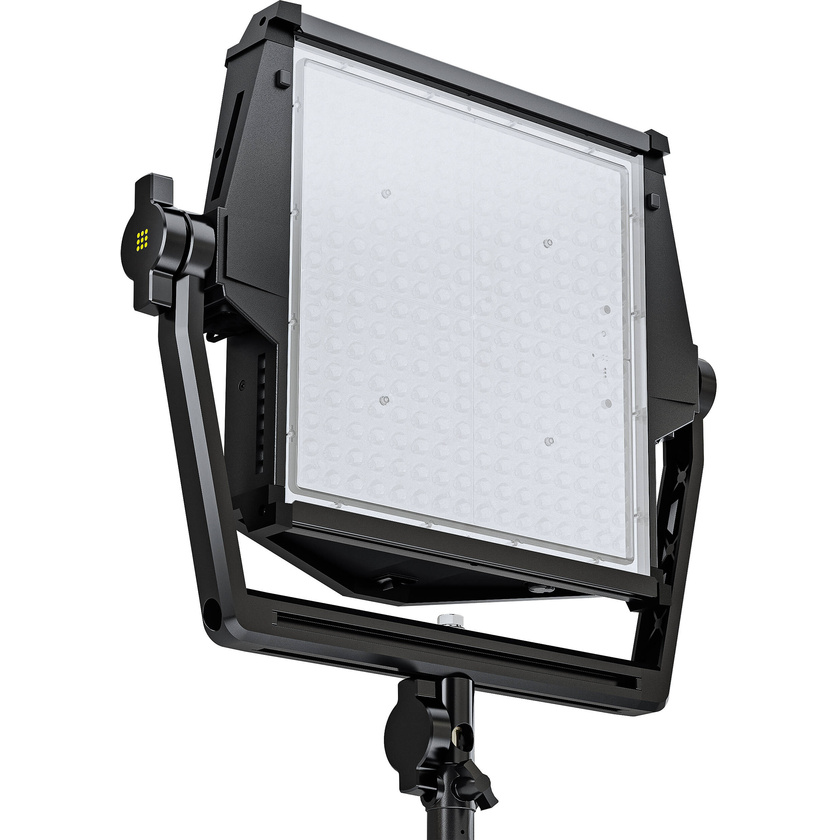

Litepanels Astra IP 1x1 Bi-Colour LED Light Panel

Product #114352 | SKU 936-1301 | Litepanels
Usually ships in 8 - 12 weeks what does this mean?
Our Price $1,819 AUD
Usually ships in 8 - 12 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 8 - 12 weeks. Deliver to New South Wales for $8.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 8 - 12 weeks
Click & Collect

Features

  • For Studio & Film/TV Production
  • Output: 27,000 Lux at 1m (5600K, 30°)
  • 2700 to 6500K, CCT Control
  • 16.8 x 17", AC/DC Operation
  • CRI 95 | TLCI 95
  • Onboard Integrated Bluetooth Controls

Description

The Litepanels Astra IP 1x1 Bi-Colour LED Light Panel is a versatile lighting solution designed to meet the needs of both studio and street photographers. Weighing under 4.5kg, this compact light panel delivers impressive output in a conveniently small 17 x 16.8 x 4.3" frame. With a color temperature adjustable from 2700 to 6500K, the Astra IP ensures accurate and natural lighting in any shooting environment. Boasting a high color accuracy rating of 95 for both CRI and TLCI, this light panel brings out the best in your subjects while maintaining its powerful performance.

Controlling the Astra IP is a breeze with its integrated Bluetooth functionality. Advanced setups can benefit from the optional DMX module, while the dual-dial system with a clear LCD screen allows for onboard adjustments with ease. Enjoy full control over your lighting setup for outstanding results every time.

From the studio to the street, the Astra IP 1x1 Bi-Color LED Light Panel is the go-to portable lighting solution for photographers looking to achieve professional-quality lighting in any environment.

Specifications

Key Specs
Item Type 1x LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case No
Photometrics 30° at 3200K:
2341 fc / 25,200 Lux at 3.3' / 1 m (Unmodified)
260 fc / 2800 Lux at 9.8' / 3 m (Unmodified)
30° at 5600K:
2508 fc / 27,000 Lux at 3.3' / 1 m (Unmodified)

278 fc / 3000 Lux at 9.8' / 3 m (Unmodified)
Colour Temperature 2700 to 6500K (in CCT Mode)
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
Dimming Built-In Dimmer (Continuous)
 • 0 to 100%
Front Accessory Mount Proprietary
Wireless Remote Control Type Bluetooth
Wireless DMX *Adapter Required (Not Included)
Power Source AC to DC Adapter (Included)
Battery (Not Included) *Requires Power Supply/Controller (Not Included)
Battery Plate Type 1x Gold Mount (Not Included)
1x V-Mount (Not Included)
1x Sony BP-U Series (Not Included)
Input Power 100 to 240 VAC, 50 / 60 Hz
12 to 30 VDC
Power Consumption 125 W
Light Fixture
Item Type 1x LED Light Panel
Included Light Modifier 1x Diffuser
Included Storage Case No
Photometrics 30° at 3200K:
2341 fc / 25,200 Lux at 3.3' / 1 m (Unmodified)
260 fc / 2800 Lux at 9.8' / 3 m (Unmodified)
30° at 5600K:
2508 fc / 27,000 Lux at 3.3' / 1 m (Unmodified)

278 fc / 3000 Lux at 9.8' / 3 m (Unmodified)
Colour Temperature 2700 to 6500K (in CCT Mode)
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 95
TLCI 95
Dimming Built-In Dimmer (Continuous)
 • 0 to 100%
Cooling System Fan
Expected Lamp Life 50,000 Hours
Beam Angle 30°
Built-In Flash No
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Bluetooth
Wireless DMX *Adapter Required (Not Included)
Mobile App Compatible Yes: Android & iOS
Wireless Channels No
Wireless Groups No
Power & I/O
Power Source AC to DC Adapter (Included)
Battery (Not Included) *Requires Power Supply/Controller (Not Included)
Inputs/Outputs Light Fixture
1x powerCON TRUE1 AC Power Input
Battery Plate Type 1x Gold Mount (Not Included)
1x V-Mount (Not Included)
1x Sony BP-U Series (Not Included)
Input Power 100 to 240 VAC, 50 / 60 Hz
12 to 30 VDC
Included Adapter / Cable 1x USA Type-A/B to powerCON TRUE1 Cable
Power Pass-Thru No
Power Consumption 125 W
Mounting
Yoke Type Manually-Operated Yoke
Environmental
Environmental Protection No
General
Display LCD
Certifications COE
Materials Aluminium
Dimensions 14.8 x 12.4 x 4.3" / 37.6 x 31.4 x 10.8 cm (Fixture without Yoke)
17 x 16.8 x 4.3" / 43.1 x 42.7 x 10.8 cm (Fixture with Yoke)
Weight 9.7 lb / 4.4 kg (Fixture with Cable/Yoke)

In The Box

  • Litepanels Astra IP 1x1 Bi-Colour LED Light Panel
  • Standard Yoke
  • US Power Cable
  • Medium Diffuser

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Litepanels Astra IP 1x1 Bi-Colour LED Light Panel
  • Manufacturer: Litepanels
  • Model: 936-1301
  • SKU: 936-1301
  • RM Product #: 114352
  • Colour Temperature: 2700 - 6500K
