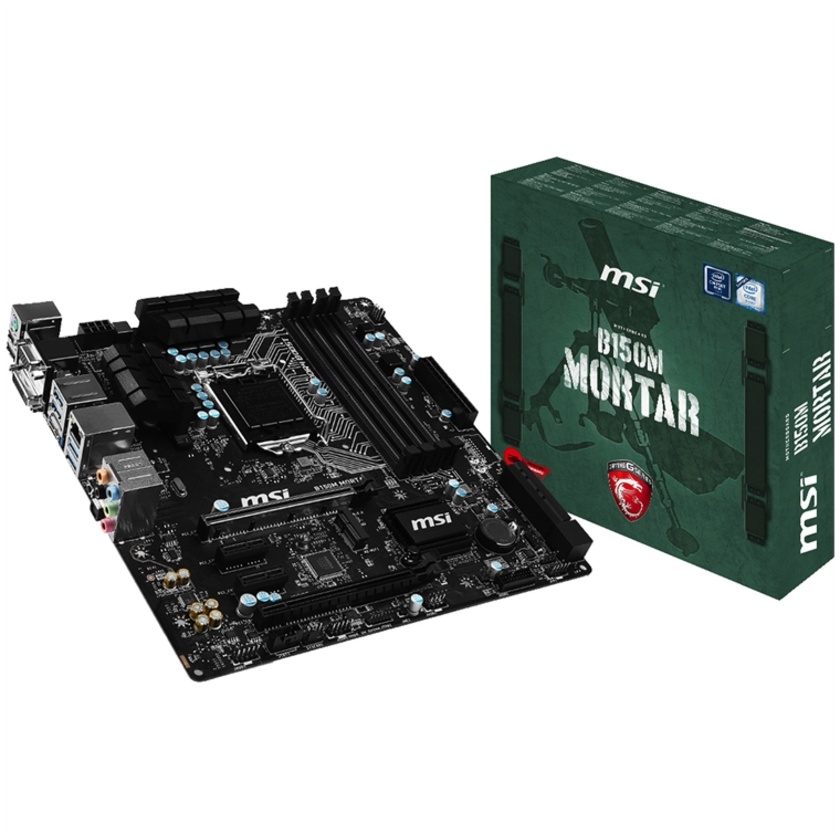

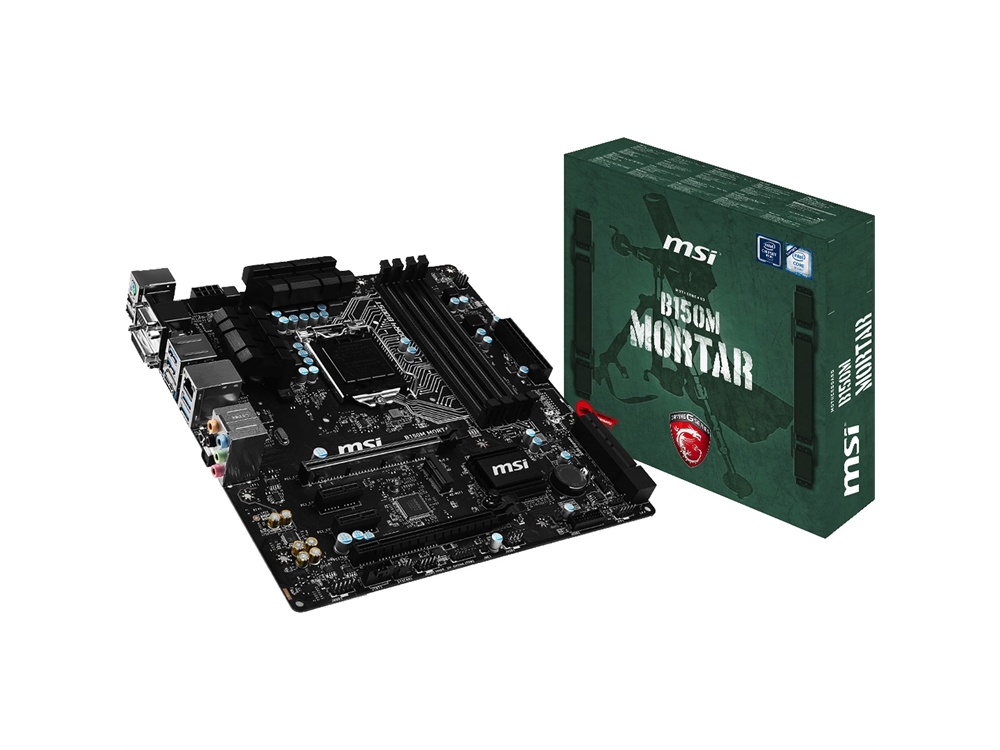

B150M MORTAR
Specifications
| Chipset Manufacturer | Intel |
| Chipset Model | B150 |
| Total Processor Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Celeron Core i3 Core i5 Core i7 Pentium |
| Multi GPU Supported | CrossFire |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM UDIMM |
| Maximum Memory | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2.13 GHz |
| Controller Type | Serial ATA/600 |
| Onboard Video | CPU Dependant Video |
| Graphics Controller Manufacturer | Intel |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of USB Ports | 6 |
| Number of USB 3.1 Ports | 4 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| DVI | Yes |
| Number of SATA Interfaces | 6 |
| Number of SATA Express Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 3.1 Ports | 2 |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
