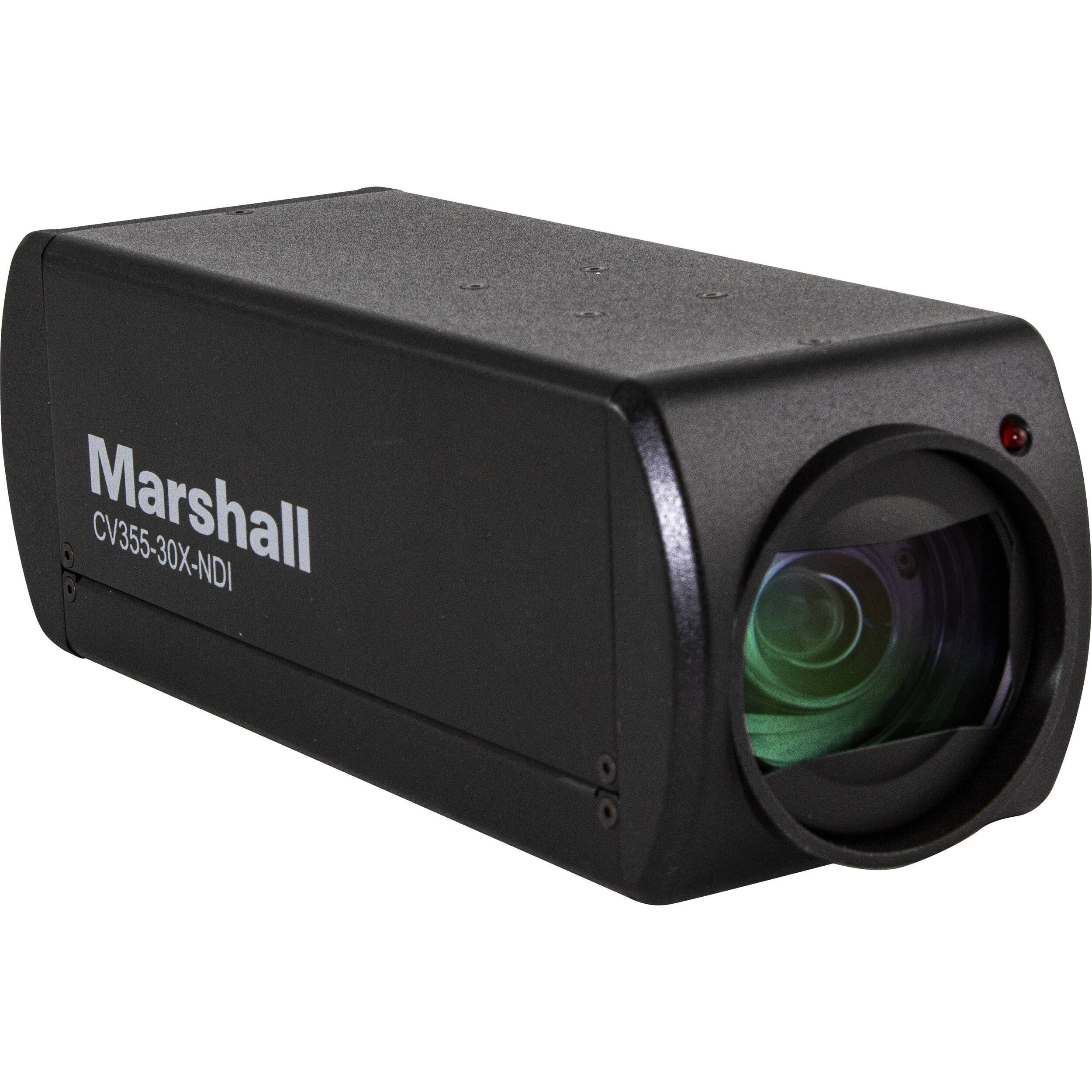

Marshall Electronics CV355-30X-NDI Full HD NDI/3G-SDI/HDMI Camera with 30x Optical Zoom

Product #108030 | SKU CV355-30X-NDI | Marshall
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 8.5MP Sensor, up to 1080p/720p Capture
  • Simultaneous 3G/HD-SDI/HDMI/NDI Outputs
  • Ethernet Port for Control & PoE Support
  • RS-232 Serial Control, 3.5mm Audio I/O
  • 30x Optical Zoom, 68° Angle of View

Description

The Marshall Electronics CV355-30X-NDI Full HD NDI/3G-SDI/HDMI Camera with 30x Optical Zoom utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 1920x1080p at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

30X Optical Zoom

The 30X optical zoom block offers an extensive zoom range from 4.6mm to 135mm starting at 68° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to tight shots.

NDI® Workflow

To keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronisation. NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.

Low-light Sensitivity

The CV355-30X-NDI operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

NDI® Network

Ideal for use in NDI® networked and A/V installations, the CV355-30X-NDI offers the convenience of NDI®|HX2., 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding.

Key Features
  • 8 Megapixel (1/2.5") HD sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 1920x1080 and 1280x720p
  • Frame rates: 59.94/50/29.97/25fps
  • NDI®|HX2., 3G/HDSDI, and HDMI 2.0 simultaneous outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • NDI® discoverable, controllable, manageable via NDI®Tools

Specifications

Sensor 1/2.5", 8.5 MP
Zoom 30x Optical Zoom
Focal Length 4.6 to 135mm
Capture Resolution 1080p at 59.94/50/29.97/25
720p
Connectors 1 x 3G/HD-SDI and 1 x HDMI 2.0 Output (Simultaneous)
1 x RJ45 for NDI Video, Control, and PoE
1 x RS-232 8-Pin Mini Din Input
1 x RS-232 8-Pin Mini Din Output
1 x 3.5 mm Audio Input
1 x 3.5 mm Audio Output
1 x 12 VDC Power Input
Angle of View 68° at 4.6mm Focal Length
3° at 135mm Focal Length
Codecs H.265/H.264/MJPEG
Mount Type 1/4"-20 Female
Dimensions 7.4 x 2.6 x 2.6" / 18.7 x 6.7 x 6.7 cm
Weight 2.2 lb / 1 kg

In The Box

  • Marshall Electronics CV355-30X-NDI Full HD NDI/3G-SDI/HDMI Camera with 30x Optical Zoom
  • Power Adapter
  • Power Cord

Reviews

0.0 (no ratings yet)

Details

  • Product: Marshall Electronics CV355-30X-NDI Full HD NDI/3G-SDI/HDMI Camera with 30x Optical Zoom
  • Manufacturer: Marshall
  • Model: CV355-30X-NDI
  • SKU: CV355-30X-NDI
  • RM Product #: 108030
