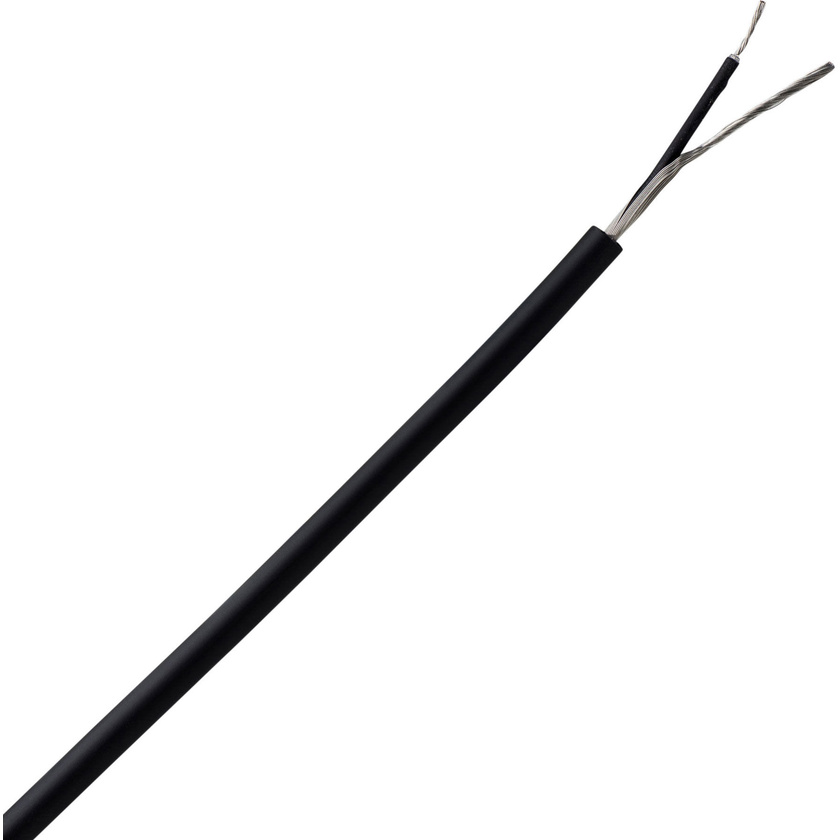

Mogami W2319BK Guitar Instrument Cable (Black, Per Metre)
Usually ships in 1 - 2 weeks
Our Price
$4.95
AUD
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
New South Wales
for $4.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- Guitar Instrument Cable
- 23 AWG Conductor
- 0.197" Outer Diameter
- Made in Japan
Description
Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. The Mogami W2319BK Guitar Instrument Cable is designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage.
Note: This conductive layer must be stripped back when wiring, or a partial short will result.
In The Box
| Conductor Details | 12/0.18TA |
| Conductor Size(mm²) | 0.305mm² (#23AWG) |
| Insulation Ov. Dia.(mm) | 1.6Ø (0.063") |
| Insulation Material | PE |
| Insulation Color | Clear |
| Sub-Shield Ov. Dia.(mm) | 1.8Ø (0.071") |
| Sub-Shield Material | Conductive PVC (Carbon PVC) |
| Sub-Shield Color | Black |
| Main-Shield Served-Shield | Approx. 38/0.16TA |
| Jacket Ov. Dia.(mm) | 5.0Ø (0.197") |
| Jacket Material | PVC |
| Jacket Color | Black |
| DC Resistance at 20°C Inner Conductor | 0.064Ω/m(0.020W/Ft) |
| DC Resistance at 20°C Shield Conductor | 0.026Ω/m(0.0079Ω/Ft) |
| Capacitance at 1kHz, 20°C | 155pF/m (47.3pF/Ft) |
| Inductance | 0.3µH/m (0.092µH/Ft) |
| 0.13mV Max. | |
| 0.07mV Max. | |
| 0.3mV Max | |
| Voltage Breakdown | Must withstand at DC 500V/15sec. |
| Insulation Resistance | 100000 MΩ × m Min. at DC 500V , 20°C |
| Flex Life | 11,000 cyles |
| Tensile Strength (26°C, 65%RH) | 303 N |
| Emigration | Non-emigrant to ABS resin |
| Applicable Temperature | -20°C to +60°C(-4°F to +140°F) |
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Mogami W2319BK Guitar Instrument Cable (Black, Per Metre)
- Manufacturer: Mogami
- Model: MOG-W2319BK
- SKU: MOG-W2319BK
- RM Product #: 102971
- Length Meters: 1 m
- Warranty: Lifetime warranty
