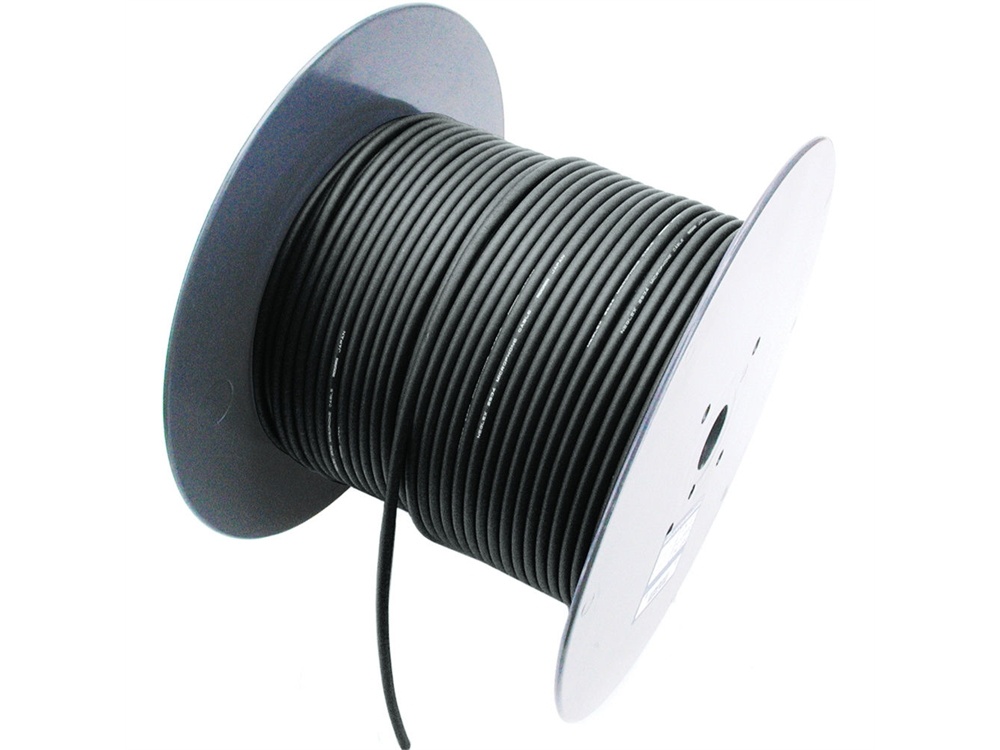

Mogami W2552 Microphone Cable (Black, 164'/50m)
In Stock with Supplier
Usually ships in 1 - 2 weeks
Our Price
$309.00
AUD
In Stock with Supplier
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Overview
Available to order today
Description
The Mogami W2552 Microphone Cable (Black, 164'/50 m) is a high performance low impedance balanced microphone cable. It is small in size and has a special rubber-like PVC jacket, which makes it very flexible and exhibits excellent resistance to rough handling and abrasion.
Specifications
Specifications
| Conductor | Quantity: 2 Type: 12/0.12 A (T250D3) Size: 0.135 mm² (26 AWG) |
| Outer Diameter | 197" (5 mm) |
| Flex Life | 11,000 cycles |
| Tensile Strength | 421 N |
| Insulation | Diameter: 0.06" (1.5 mm) Material: LNXLPE (low noise cross-linked polyethylene) Resistance: 100,000 MW × m minimum at 125 VDC, 68°F (20°C) |
| Shield | Served Shield: Approximately 67/0.12 A |
| Jacket | Diameter: 0.2" (5 mm) Material: Flexible PVC |
| DC Resistance | Inner Conductor: 0.043 W/ft (0.14 W/m) Shield: 0.003 W/m(0.009 W/ft) |
| Capacitance | At 1 KHz, 68°F (20°C) K0: 27 pF/ft (90 pF/m) K1: 3 pF/ft (10 pF/m) Quad-connection |
| Inductance | 0.24 µH/ft (0.8 µH/m) (between conductors at 1 kHz 20°C) |
| Noise | Electrostatic Noise: 50 mV (maximum) Electromagnetic Noise: 0.15 mV (maximum) |
| Microphonics | Up to 30 mV (at 50 kW load) |
| Emigration | Non-emigrant to ABS |
| Temperature | -4 to 158°F (-20 to 70°C) |
| Roll | Length: 164' (50 m) Weight: 4.13 lb (1.87 kg) |
In The Box
Mogami W2552 Microphone Cable (Black, 164'/50 m)
- Lifetime Warranty
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Mogami W2552 Microphone Cable (Black, 164'/50m)
- Manufacturer: Mogami
- Model: W2552 00 A
- SKU: W2552 00 A
- RM Product #: 50743
- Length Meters: 50 m
- Cable Type: Microphone Cable
- Colour: Black
- Warranty: Lifetime warranty
