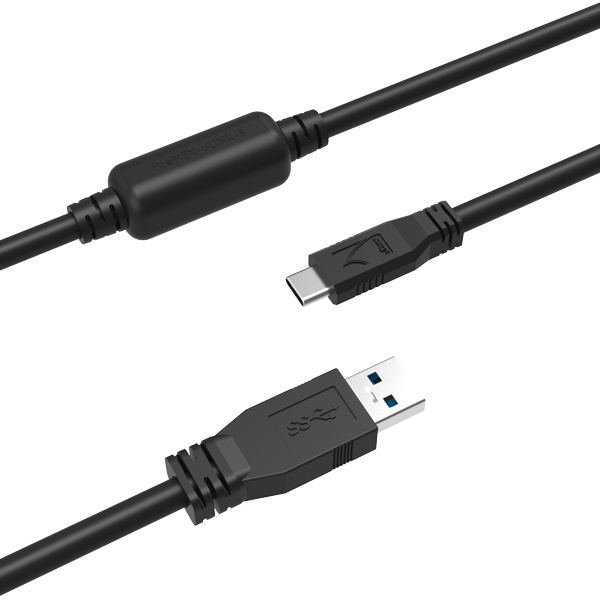

Newnex Firenex USB 3.0 Active Cable A/M to C/M w/ Slim Profile Repeater (12m)
Features
- Transfers at data rate up to 5 Gbps
- USB 2.0 backward compatible
- Plug and Play, no driver installation
- Bus powered from host PC
- Slim repeater box profile option available
Description
In response to the growing need for extending connection range for USB 3.1 Type-C devices, FireNEX™-uLINK-C series is developed to extend SuperSpeed USB 5Gbps signal for your USB-C devices up to 30 meters.
FireNEX™-uLINK-C provides a USB Type-A to Type-C one-cable extension solution by embedding a repeater module between the copper cable. The bus power feature simplifies the extension connection goes directly from host USB port to device socket without any external power input. FireNEX™-uLINK-C also features with USB 2.0 backward compatibility, making it ideal solutions for applications such as Machine Vision, Pro AV, Medical Imaging and many other fields.
Every FireNEX™-uLINK-C cable has been meticulously made and tested to meet the requirements for best signal integrity and highest reliability when compared to any other USB 3.1 active repeater cables on the market.
Specifications
Extension Range | |
SuperSpeed USB 5 Gbps | Up to 30m (98.4 ft.) |
Data Rate | |
SuperSpeed USB | 5 Gb/s |
Backward Compatible USB 2.0 | 480 Mb/s |
Mechanical | |
Repeater Box Dimensions | 16 x 16 x 40mm |
Cable Diameter | 6.4mm |
Jacket Material | PVC, Black |
USB Connector on Host Side | USB 3.1 Type A |
USB Connector on Device Side | USB 3.1 Type C |
Power Supply | |
Power Source | Bus Power |
Available Power to Device | 5V, up to 900mA |
Environmental | |
Operating Temperature | 0°C to 70°C |
Storage Temperature | -40ºC to 80ºC |
Operating Humidity | 20% to 80% relative humidity, non-condensing |
Storage Humidity | 10% to 90% relative humidity, non-condensing |
Compliance and Compatibility | |
Connectivity | USB 3.0/USB 3.1 Gen 1, USB 2.0 |
Machine Vision | USB3 Vision™ Compliant |
EMC | FCC (Class B), CE (Class B) |
Environmental | RoHS |
Flammability | VW-1 |
In The Box
- Newnex Firenex USB 3.0 Active Cable A/M to C/M w/ Slim Profile Repeater (12m)
Reviews
(no ratings yet)Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Newnex Firenex USB 3.0 Active Cable A/M to C/M w/ Slim Profile Repeater (12m)
- Manufacturer: Newnex
- Model: FIRENEX-ULC12
- SKU: FIRENEX-ULC12
- RM Product #: 99605
- Length Meters: 12 m
- Cable Connector: USB C Male
- Cable Connector: USB A Male
