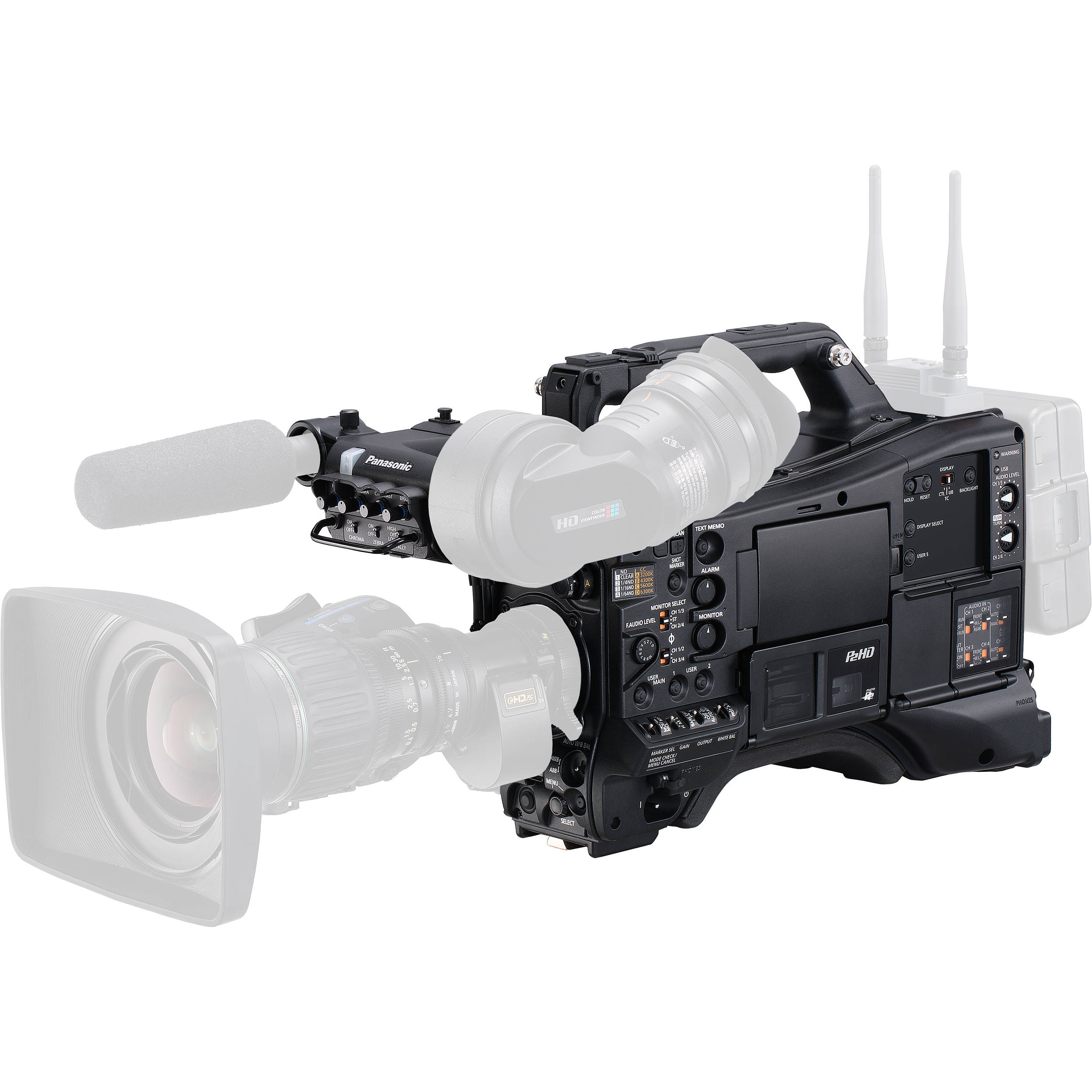

Offering HDR capture and RTSP/RTMP streaming/transmission, the Panasonic AJ-PX5100GJ P2 HD HDR AVC-ULTRA Camcorder is a 2/3" type video camera with an interchangeable lens system. Designed to speed your ENG or broadcast workflow, the AJ-PX5100GJ features HLG (hybrid log-gamma) recording and RTMPS on-air streaming when used with your wired LAN system or a separately available wireless dongle. This camera captures up to 1080p60/50 video using both dual P2 and dual microP2 card slots. Compatibility with a variety of AVC-ULTRA codecs provides a choice of compression and data rate to suit individual needs, ranging from AVC-Intra200 for mastering to AVC-Proxy modes for quick workflow turnarounds.
The AJ-PX5100GJ camcorder features high-sensitivity, low-noise 2/3" type 3MOS image sensors for rich, detailed images, a 3.5" colour LCD screen, 24-bit four-channel audio recording, and a variety of control options. Connectors include 3G-HD/SDI input and output and an HDMI output. Genlock input and timecode input/output offer compatibility for multi-camera ENG and broadcast usage. Use the AJ-PX5100GJ camcorder with an optional Panasonic AJ-WM50 or AJ-WM30 wireless module or third-party USB dongle for wireless connectivity using Wi-Fi, 4G, or LTE, or connect it to your wired LAN network via the built-in Ethernet connector. This versatile camera features a variety of image setting functions including optical ND and colour correction filters, multiple gamma curves, a dynamic range stretcher, five user-assignable buttons, multiple recording options, and versatile remote options including IP and iPad control. Focus features include image zoom and red focus peaking options.
(Note that this item includes the camera body only and does not include a lens or viewfinder.)
Features
- Optimal Image Quality
- 3MOS Image Sensors
- Three 2/3" type image sensors capture detailed images with high sensitivity and minimal noise
- HDR Options
- Rich, nuanced HLG (hybrid log-gamma) imaging
- Simultaneous HDR and SDR output
- SDR gamma curves enable viewing of HDR images on standard dynamic range monitor or viewfinder
- Push to select HLG grading in the viewfinder for a quick HLG level check
- AVC-ULTRA Codecs
- Choose from multiple high-quality, efficient H.264 codecs like:
- High-resolution AVC-Intra200 for mastering
- AVC-LongG for efficient storage
- AVC-Proxy modes for quick turnarounds
- Conventional DVCPRO to fit into existing workflows
- Versatile Frame Rates
- 1080p at 24/25/30/50/59.94/60
- 1080i at 59.94/50 for global use
- 720p at 24/25/30/50/60 for HD capture
- 480/60i and 576/50i for SD capture
- Advanced Networking
- Optional, Flexible Connections for Streaming and P2 Casting
- Use with separately available:
- Panasonic AJ-WM50 or AJ-WM30 wireless modules
- Third-party 4G/LTE dongles
- Wired LAN setup
- Wired/wireless options include proxy preview, remote camera control, and playlist editing via Mac or PC
- Full HD streaming available via QoS (Quality of Service) mode*1, PC, and optional P2SS (streaming server)
- QoS (Quality of Service) mode*1
- Note:
- *1 - P2 Streaming Receiver software (Windows only, not supported by Mac; available free of charge) is required for receiving the QoS mode.
- P2 Cast Option for Linked ENG Capture and Distribution
- Use with optional P2 Cast cloud services and P2 Case Mobile for near-live ENG relay
- Versatile Camera Functions
- Optical ND and CC Filters
- Clear, 2-, 4-, and 6-stop ND mechanical filters for quick exposure adjustments
- 3200, 4300, 5600, and 6300K CC (colour correction) filters
- Chromatic Aberration Compensation
- Compensates for circumjacent chromatic aberration when used with a CAC compatible lens
- Dynamic Range Stretcher
- A DRS (dynamic range stretcher) function suppresses blocked shadows and blown highlights for maximum dynamic range
- Multiple Gamma Curves
- Choose from eight gamma modes for a distinctive look:
- HD, SD, FilmLike 1/2/3, Film-Rec, Video-Rec, or HLG
- High Sensitivity / Low Noise
- Super gain and digital super-gain settings for increased sensitivity in low light without increased noise
- Operating Features
- 960 x 540 LCD monitor with switchable Live view and Status view
- Focus assist features include zoom and red focus peaking
- Smooth white balance transitions
- Waveform, vector-scope, and zebra functions
- Five user-assignable buttons
- Lens and setup file storage
- On/off selectable tally switch
- Versatile Recording Options
- Dual P2 card and dual microP2 card slots offer dual-codec, simultaneous, and hot-swap recording options
- One-Clip Record mode enables you to record up to 99 consecutive cuts as a single clip
- Pre Record mode buffer feature stores around eight seconds of video and audio while in standby mode
- Loop Record uses the dual card slots to record an event in loop mode
- Interval Record used for intermittent recording at set intervals and times
- One-Shot Record records individual frames for animation work
- Text Memo, Shot Marker, and Metadata recording
- 24-Bit, 4-Channel Audio Recording
- Selectable mic-in, line-in, or wireless receiver recording for each of four channels
- 24-bit/48 kHz recording in AVC-Intra and AVC-LongG modes
- Versatile Connectors
- 3G-SDI input and output connectors support up to 1080p60/50
- 2-channel XLR audio input connectors with +48V phantom power
- HDMI out, timecode in/out, GenLock in
- USB 3.0 (host) and USB 2.0 (device)
- IP/iPad Remote Control
- iPad Remote Control: Downloadable P2 ROP app for picture quality setting, Rec start/stop, thumbnail clip display, proxy preview, metadata display, and editing
- 10-pin port for optional AG-EC4G Extension Remote Control Unit or AK-HRP200G Remote Operation Panel
- Optional camera extension system (AG-CA300G Camera Adapter and AG-BS300 Base Station) for affordable studio operation
- IP Remote (LAN) for wired control with the optional AK-HRP200G Remote Operation Panel
