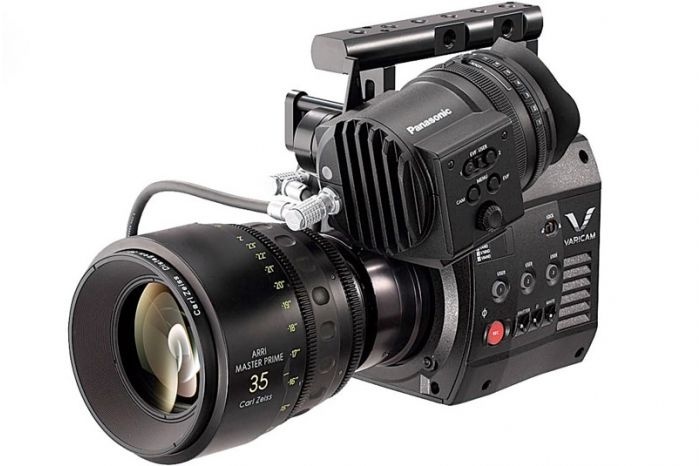

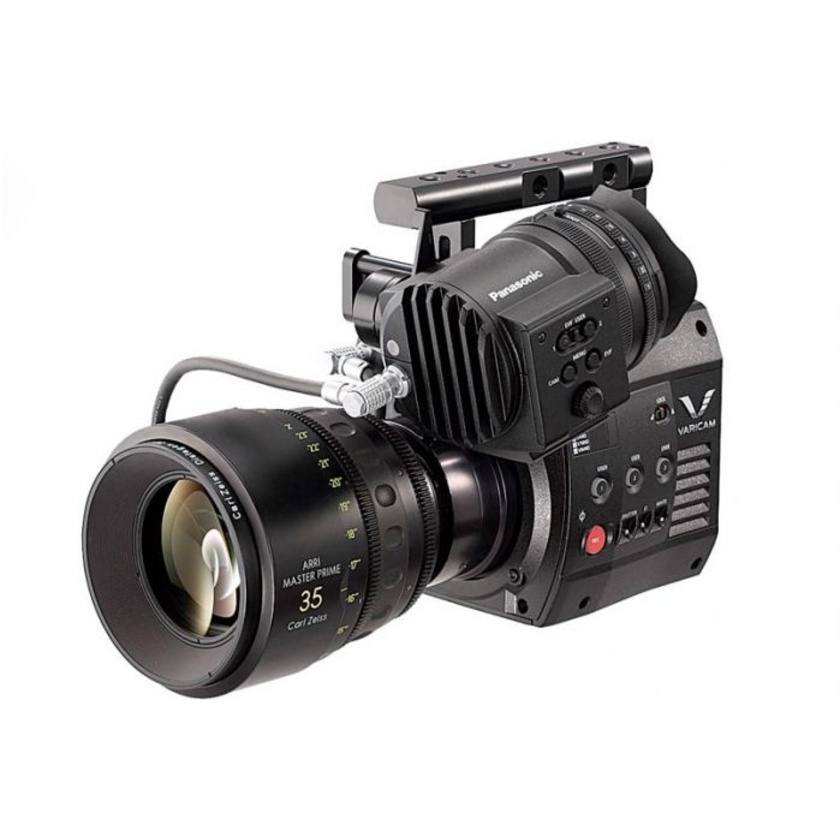

Panasonic AU-V35C1G Varicam Super-35mm 4K Camera Head

Product #94824 | SKU AU-V35C1G | Panasonic
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Formats Ranging from 4K RAW Output, 4K, UHD, 2K & HD Capture
  • Support for an Academy Colour Encoding System (ACES)
  • Codecs: AVC-Ultra, AVC-Intra, RAW & ProRes
  • Dockable, Modular Design

Description

Panasonic AU-V35C1G Varicam Super-35mm 4K Camera Head

The VariCam 35's (AU-V35C1) superb image handling in multiple formats including 4K, UHD, 2K and HD make it an unparalleled tool for high-end filmmaking, commercials and episodic production as well as live 4K events. With an expanse of formats ranging from flawless 4K RAW output to more practical 4K, UHD, 2K and HD capture, the VariCam 35 when combined with the AVC-ULTRA codecs for 4K enables very manageable and practical 4K production file sizes.

The VariCam 35 utilizes a new Panasonic super 35mm MOS sensor for 4096 x 2160 (17:9) 4K image capture; this imager boasts an impressive 14+ stops of latitude and faithfully captures high-contrast, wide dynamic range imagery without compromise. Powerful colour management capabilities provide a much extended colour gamut for impeccable image fidelity and permit support for an Academy Colour Encoding System (ACES) workflow for full fidelity mastering of original source material.

Lesser products cannot compete with the sheer image quality of the VariCam's 14-stop full 4K sensor. Nor can they offer the versatility of a modular system that allows users to switch between the VariCam 35 front end and the VariCam HS for high speed HD recording and use of versatile B4 ENG lenses. Other clever innovations include the ability to record internally in three different formats - 4K, HD and HD proxy - each with a different LUT; this will be of enormous benefit to cinematographers.

Key Features:

  • Super-35mm 4K camera
  • Formats ranging from 4K RAW output, 4K, UHD, 2K and HD capture
  • Super 35mm MOS sensor for 4096 x 2160 (17:9) 4K image capture
  • Support for an Academy Colour Encoding System (ACES)
  • Codecs: AVC-Ultra, AVC-Intra, RAW and ProRes
  • Dockable, modular design
  • PL mount lens

Specifications

Power DC 12 V (11.0 V – 17.0 V)
Power Consumption 69 W (Body , 99 W (With all optional accessories connected and maximum power supplied from each output terminal)
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 85% (Relative humidity)
Storage Temperature −20°C to 60°C
Weight Body only: Approx. 11 pounds (5.0 kg)
Dimensions (W x H x D) 7-1/16 inches x 9-1/16 inches x 13 -21/32 inches ( 179 mm × 230.5 mm × 347 mm) (Body only, excluding protrusion)
Pickup Device super35 mm MOS 8.9 million pixels
Picture Elements Total picture elements : Approx.10.3 million pixels
Effective Picture Elements Approx. 8.9 million pixels
Lens Mount 35 mm PL mount
Optical Filter ND filter: 1: CLEAR, 2: 0.6 ND 3: 1.2 ND, 4: 1.8 ND
Gain Settings [ISO] mode: ISO 800 to 12800, [dB] mode: 0 to 24 dB (3 dB step)
Shutter speed [deg] mode: 1.0 to 358 deg (0.5 deg step) , [sec] mode: 1/24 to 1/250 (When 24p mode)
Recording Media expressP2 card, P2 card, microP2 card
Recording Resolution 4096 x 2160, 3840 x 2160, 1920 x 1080
Recording Framerate Maximum 4K 50p/60p, HD 50p/60p
System Frequency 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
Recording Format Main Recorder: AVC‑Intra4K 4:2:2, AVC-Intra100; Sub Recorder: AVC‑Intra100, AVC‑LongG50, AVC‑LongG25
Recording Video Signal 4096 x 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p; 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p; 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p
Recording/Playback Time: (When expressP2 card 256GB is used)*2(Main Codec) Approx. 90 min. (AVC-Intra4K 4:2:2, VFR OFF, 24p); Approx. 36 min. (AVC-Intra4K 4:2:2, VFR ON, 50p/59.94p); Approx. 128 min. (AVC-Intra 100, VFR ON,50fps/60fps), 50fps/60fps)
Recording/Playback Time: (When microP2 card 64GB is used)*2 (Sub Codec) Approx. 64 min. (AVC-Intra100, 25p/29.97p); Approx. 128 min. (AVC-LongG50, 25p/29.97p); Approx. 256 min. (AVC-LongG25, 25p/29.97p
Quantizing 10 bit
Video Compression Format AVC‑Intra4K 4:2:2/AVC-Intra100: MPEG-4 AVC/H.264 Intra Profile, AVC‑LongG50/AVC‑LongG25: MPEG-4 AVC/H.264
Recording Audio Signal 48 kHz/24 bit, 4 ch, Head room 18 dB/20 dB menu switchable
File Format MOV
Video Compression Format H.264/AVC High Profile
Audio Compression Format LPCM
Recording Time (1 GB)*2 Approx. 25 min.
SDI OUT HD (1.5 G)/3 G SDI, 0.8 V[p-p], 75 Ω (1 set, 4 pieces)
MON OUT1 HD (1.5 G)/3 G SDI, 0.8 V[p-p], 75 Ω
VF SDI HD (1.5 G)/3 G SDI, 0.8 V[p-p], 75 Ω
AUDIO IN (CH1/CH2): XLR x 2, 3 pin, LINE/MIC/MIC+48 V/AES switchable
MIC IN XLR x 1, 5 pin
Phones Stereo mini jack
Speaker 20 mm diameter, round x 1
GENLOCK IN HD (1.5 G) /3 G SDI, 0.8 V[p-p], 75 Ω
TC IN/OUT BNC×1, IN/OUT switch selection
IN 0.5 V[p-p] to 8 V[p-p], 10 kΩ
OUT 2.0 ± 0.5 V[p-p], Low impedance
DC IN XLR 4 pin, DC 12 V (DC 11.0 V to 17.0 V)
DC OUT/RS 4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.0 A
DC OUT 2 pin, DC12 V (DC 11.0 V to 17.0 V),maximum output current 1.0 A
LENS 12 pin x 1, 4 pin x 2
VF 14 pin
LAN 100BASE‑TX/10BASE‑T
USB2.0: (device) Type B connector, 4 pin
USB2.0: (host) Type A connector, 4 pin *3
EXT 50 pin (for external recording only) *3
Control Panel (LCD) 3.5-type QHD color monitor, (Approx. 1.56 million dots)
Display Panel10/7/2014 OLED, 0.7-type, 2.76 million dots
Signal Input10/7/2014 1080/59.94p, 1080/50p, 1080/60p

Reviews

0.0 (no ratings yet)

Details

  • Product: Panasonic AU-V35C1G Varicam Super-35mm 4K Camera Head
  • Manufacturer: Panasonic
  • Model: AU-V35C1G
  • SKU: AU-V35C1G
  • RM Product #: 94824
  • Warranty: All Lumix and Panasonic Camcorder products come with a 3 year warranty
