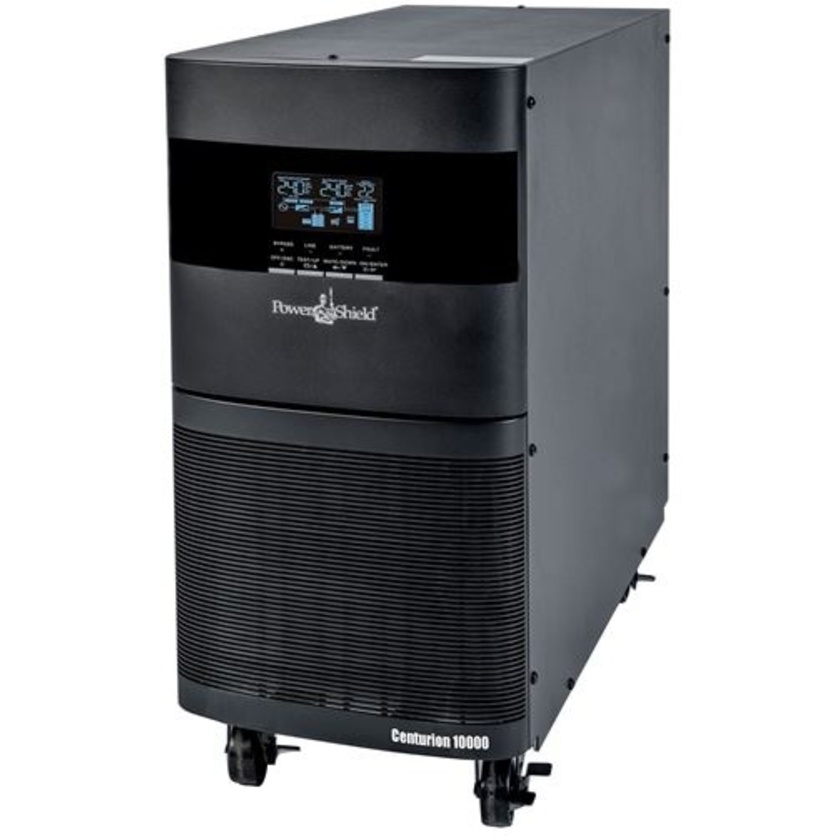

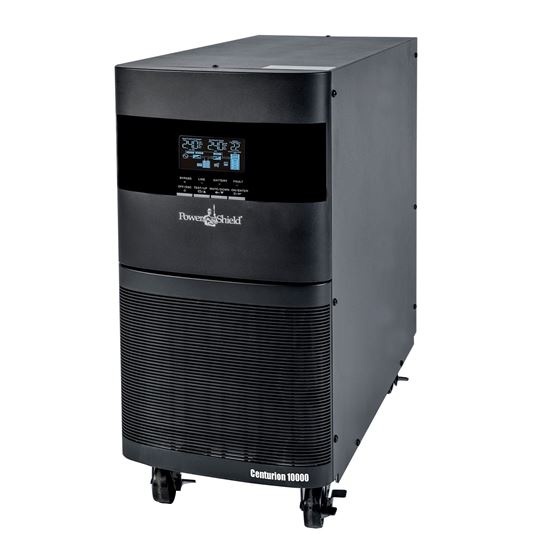

Powershield PSCE10KNB Centurion Tower 10kVA/ 8KW UPS System

Product #102709 | SKU PSCE10KNB | Powershield
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • True Online Double Conversion
  • Wide input voltage range (110V~300V AC)
  • Input power factor correction 0.98
  • 50Hz/60Hz frequency converter mode
  • Programmable power outlets
  • Emergency power-off function (EPO)

Description

The Powershield PSCE10KNB Centurion Tower 10kVA/ 8KW UPS System is designed to protect critical computers, communications, industrial, medical and other mission-critical equipment.

A true online double conversion UPS, the Centurion is designed to guarantee the trouble-free operation of protected equipment in any harsh electrical environment. Versatile management and hardware options offer the flexibility to build up a power protection solution to fit any application.

This range now comes with two sets of sockets on the back, one row of output sockets are programmable meaning that you can shed less important loads. This will leave additional valuable backup time to the equipment that is most critical. This UPS includes a stylish, informative LCD display.

Specifications

Voltage Range
Low Line Transfer 176V AC @ 100% load
110V AC @ 50% load
Low Line Comeback 186V AC @ 100% load
120V AC @ 50% load
High Line Transfer 300V AC
High Line Comeback 290V AC
Frequency Range 4654Hz@50Hz / 5664Hz@60Hz
Phase Single-phase with ground
Power Factor 0.99 @ 100% load
Output
AC Voltage Regulation (Batt. Mode) ±1%
Frequency Range (Synchronized Range) 4654Hz @50Hz/5664Hz @60Hz
Frequency Range (Batt. Mode) 50Hz ± 0.1Hz or 60Hz ± 0.1Hz
Load Crest Factor 3:1
Harmonic Distortion 2% THD (Linear Load)
6% THD (Linear Load)
Transfer
AC Mode to Batt. Mode Zero
Inverter to Bypass Zero
Waveform (Batt. Mode) Pure Sinewave
Efficiency
ECO Mode 90%
Battery Mode 88%
Protection
Full Protection Overload, discharge, thermal, short circuit and overcharge protection
Communications and Management
Interface USB OR RS232 as standard, Intelligent slot for PSSNMP or PSA400 dry contact
Software Power Shield NetGuard Software - supports Windows-based operating Systems, Linux, Unix & Mac
LCD Display / Alarm UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indicators
Audible Alarm Battery Mode, Low Battery, Overload, Fault
Physical
Dimension (D x W x H) 575 x 250 x 576.5mm
Net Weight 83kg
Operating Environment
Temperature 0°C~40°C
Humidity 20%~90% (RH Non-Condensing)
Noise Level Less than 58dB @ 1 Meter
Compliance
Safety EN62040-1-1 2003, IEC60950-1-1
EMS EN62040-2 2006
RoHS Directive 2001 / 65 / EU

In The Box

  • Powershield PSCE10KNB Centurion Tower 10kVA/ 8KW UPS System

Reviews

0.0 (no ratings yet)

Details

  • Product: Powershield PSCE10KNB Centurion Tower 10kVA/ 8KW UPS System
  • Manufacturer: Powershield
  • Model: PSCE10KNB
  • SKU: PSCE10KNB
  • RM Product #: 102709
  • Warranty: See here for Warranty Terms view terms
