The QNAP QSW-1208-8C 12-Port 10GbE Switch is a 12-port 10GbE unmanaged switch, allowing you to instantly upgrade your network environment at a cost-effective price. The QSW-1208-8C supports 10GBASE-T and NBASE-T standards, allowing you to take advantage of higher network speeds with your existing Cat 5e and 6a cables. Both SFP+ (fiber) and RJ45 (copper) ports are available (with 8 combo ports) for servicing a range of network needs. Compliant with IEEE 802.3az (Energy Efficient Ethernet, EEE), the QSW-1208-8C is energy efficient as well. With high performance, low latency and superb functionality, the QSW-1208-8C is the ideal choice for upgrading your home or business network to support 10GbE connections.

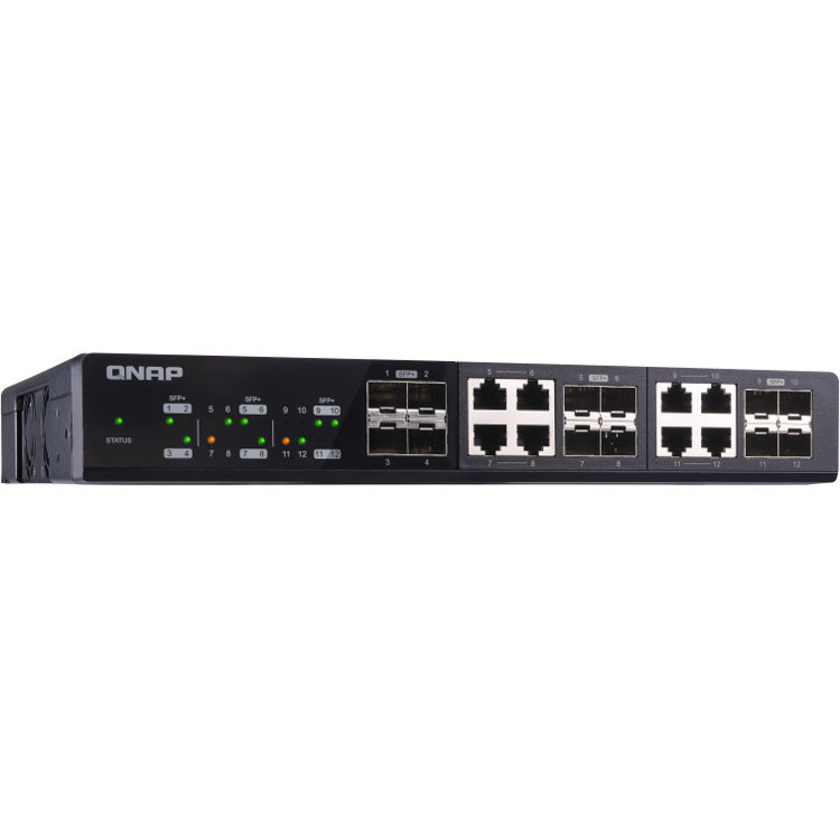

QNAP QSW-1208-8C 12-Port 10GbE Switch
This product is no longer available
Features
- Supports 10GBASE-T & NBASE-T Standards
- Uses Existing Cat 5e & 6a Cables
- 4 x 10GbE SFP+ Ports
- 8 x 10GbE SFP+/RJ45 Combo Ports
- IEEE 802.3az (Energy Efficient Ethernet)
- Low Latency
Description
Specifications
| Interfaces | |
| Inputs/Outputs | 4 x 10Gb SFP+ 8 x 10Gb Combo (Ethernet/SFP) |
| Protocols | |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 27K |
| Standards | |
| Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3ae, 802.3an, 802.3aq, 802.3az, 802.3bz, 802.3u, 802.3x, 802.3z |
| Performance | |
| Switching Bandwidth | 240 Gb/s |
| Priority Queues | 8 |
| Electrical | |
| Power Draw | 50.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A |
| Power Supply Type | Internal |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 85% |
| General | |
| Certifications | BSMI, CCC, COE, FCC, RCM, VCCI *as per Manufacturer |
| Cooling System | Fan |
| Indicator Lights | Link/Activity/Speed, Power, Status |
| Dimensions | 11.22 x 9.17 x 1.69" / 285 x 233 x 43 mm |
| Weight | 4.74 lb / 2.15 kg |
In The Box
- QNAP QSW-1208-8C 12-Port 10GbE Switch
- Power Cord
- Rackmount Kit
- Rubber Feet
Reviews
(no ratings yet)Details
- Product: QNAP QSW-1208-8C 12-Port 10GbE Switch
- Manufacturer: QNAP
- Model: QSW-1208-8C-US
- SKU: QSW-1208-8C-US
- RM Product #: 105327
