The Sennheiser EW300 G3-B - Complete IEM System is a wireless stereo audio system that provides terrific versatility in a compact package. The system consists of an SR 300 G3 transmitter and an EK 300 G3 receiver. Both the transmitter and receiver have 1680 tunable UHF frequencies for interference-free operation. They also have a pilot tone squelch feature for eliminating interference when the transmitter is turned off.
The units can be wirelessly synced for quick setup. The transmitter offers simple menu operation with an illuminated graphic display for more control options. An Ethernet port allows you to connect to a network in order to control the transmitter with the Wireless Systems Manager software from a computer.
An auto-lock on each unit prevents accidental settings changes, while an HDX compander provides high-quality audio. An integrated 5-band graphic EQ lets you shape sound to favor audio frequencies that you prefer. A mute function silences the audio. The receiver operates on a pair of standard AA batteries, and also has external contacts points for charging a BA 2015 rechargeable accupack battery inside the receiver. A pair of IE 4 earphones are included so you can begin monitoring immediately.

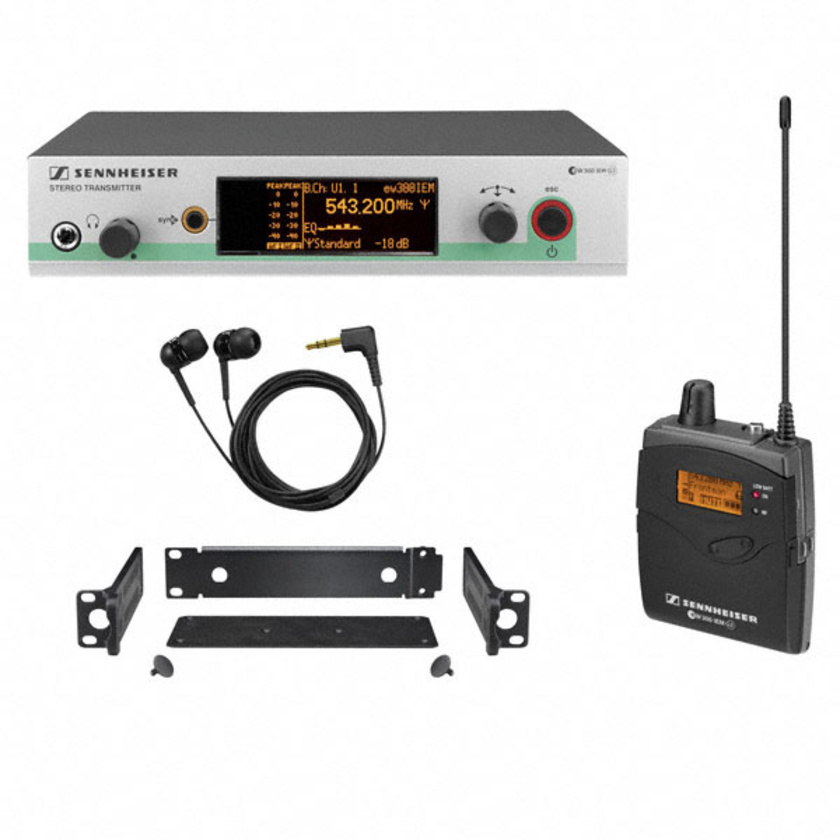

Delivery Includes:
- 1 SR 300 G3 stereo transmitter
- 1 EK 300 G3 stereo diversity receiver
- 1 IE 4 earphones
- 1 GA 3 rack mount
- 1 NT 2 power supply unit
- 1 antenna
- 2 AA size batteries
- Operating instructions
Transmitter Features:
- Rackmount metal enclosure
- 1680 tunable UHF frequencies with auto-scan, an enhanced bank system, and enhanced AF frequency range for interference-free operation
- Pilot tone squelch eliminates RF interference when transmitter is off
- Wirelessly syncs with receiver for easy setup
- Ethernet connection lets you control the Wireless Systems Manager software via a network
- Illuminated graphic display with user-friendly menu for simple operation
- Auto-lock function prevents accidental settings changes
- HDX compander for clear sound quality
- Integrated 5-band graphic EQ for adjusting sound
- Mute function
Receiver Features:
- Compact and rugged metal housing
- 1680 tunable UHF frequencies with auto-scan, an enhanced bank system, and enhanced AF frequency range for interference-free operation
- Adaptive diversity technology for high-quality reception
- Pilot tone squelch eliminates RF interference when transmitter is off
- Wirelessly syncs with transmitter for easy setup
- Illuminated graphic display with user-friendly menu for simple operation
- Auto-lock function prevents accidental settings changes
- HDX compander for clear sound quality
- HiBoost, adjustable limiter, stereo/focus mode, and balance features
- Operates on 2 AA batteries and has a 4-step battery life indicator
- Has external contacts for charging a BA 2015 accupack inside the receiver
- Includes a pair of IE 4 earphones
Specifications:
- Modulation: FM, MPX-Stereo
- RF frequency range: 626-668 MHz
- Transmission/receiving frequencies: 1680
- Presets: 16
- Switching bandwidth: 42 MHz
- RF output power: 10/30 mW
- Peak deviation: +/- 48 kHz
- Compander: HDX
- Signal-to-noise ratio: > 90 dB(A)
- THD, total harmonic distortion: < 0,9 %
- Frequency response: 25-15000 Hz
- In compliance with: ETS 300422, ETS 300445, CE, FCC
- Antenna connector : BNC
- Audio-XLR connector: 2x XLR3 jack
- Input voltage range: + 22 dBu max
- Headphone connector: > 100mW (32Ohm)
- Operating voltage (stand alone): 12 V DC nom.
- Dimensions (Transmitter): 212 x 202 x 43 mm
- Weight (Transmitter): 1100 g
- Audio-Output-Power: 100 mW (32Ohm)
- Audio-XLR connector: 3,5mm jack
- Operating time: 4-6 h
- Dimensions (Receiver): 82 x 64 x 24 mm
- Weight (Receiver): ~ 160 g
