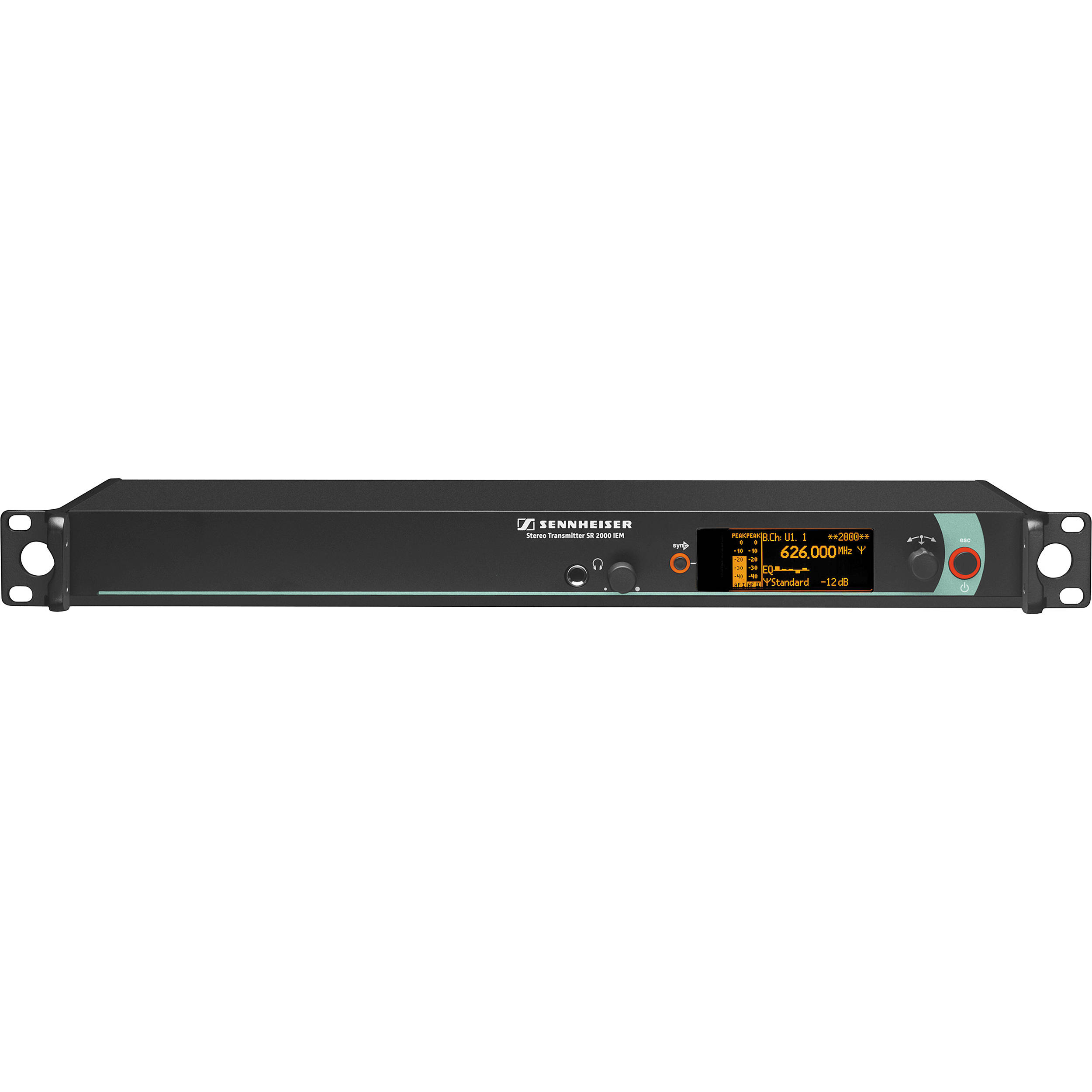

The Sennheiser SR2000XP-GW - IEM Audio Transmitter is a professional-quality audio transmitter that offers terrific reliability and versatility in a rugged 1RU metal chassis. Ideal for IEM use, the SR 2000 provides you with 26 frequency banks, each with up to 32 selectable channels, providing you with plenty of choices to find a clear, interference-free signal. Switchable RF output powers of 10, 30, 50, and 100mW provide additional versatility.
The system features a 5-band graphic EQ to shape the audio signal. Audio receiver can be configured directly from the transmitter menu, and can be synchronized using the infrared interface. The user-friendly menu features a 2-color backlit graphic display, and provides easy monitoring and control with the Sennheiser WSM PC software. The transmitter also has pilot tone transmission for interference-free operation, and an adjustable headphone connection for monitoring.
Product Features
- Rugged 19" all-metal housing with integrated power supply unit
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks each with up to 32 tunable channels
- Frequency setting in 25 kHz steps
- Switchable RF output power for versatile use
- Enhanced audio frequency response in bass range
- Integrated 5-band graphic equalizer
- Receivers can be configured from the transmitter menu
- Can be synchronized with the receiver using infrared interface
- Wide range of accessories for virtually any use
- Monitoring and control using Sennheiser WSM PC software
- User-friendly menu interface with two-color backlit graphic display (red as a warning)
- Pilot tone transmission for interference-free operation
- Adjustable headphone connection
- Wide range of accessories for virtually any use
Product Highlights
- Rackmount Design
- User-Selectable Frequencies
- Switchable RF Output Power
- 5-Band Graphic EQ
- Infrared Receiver Sync
- 2-Color Backlit Graphic Display
- Pilot Tone Transmission
Delivery Includes
- 1 SR 2000 IEM transmitter
- 3 mains cables (EU, UK, and US)
- 1 rod antenna
- 1 instruction manual
- 1 supplementary frequency sheet
- 1 supplementary RF license sheet
- 4 device feet
Specifications
- Modulation: FM, MPX-Stereo
- RF frequency range: 558 - 626 MHz
- Carrier frequencies: max. 3000
- Presets: max. 32
- Switching bandwidth: max. 75 MHz
- RF output power: 10, 30, 50 and 100 mW switchable
- Nominal deviation: ±24 kHz
- Peak deviation: ±48 kHz
- Compander: HDX
- Signal-to-noise ratio: > 90 dB(A)
- THD, total harmonic distortion: < 0,9%
- Antenna connector: 2x BNC
- In compliance with: CE, FCC, IC
- Frequency response: 25Hz - 15kHz
- Audio-XLR connector: 2x XLR, 2x 6,5mm Jack
- Input voltage range: + 22 dBu max
- Headphone connector: > 100 mW (32 Ohm)
- Power supply: 100 - 240 V AC, 50/60 Hz
- Current consumption: 0,1 A
- Dimensions: 436 x 215 x 43 mm
- Weight: 2600 g
