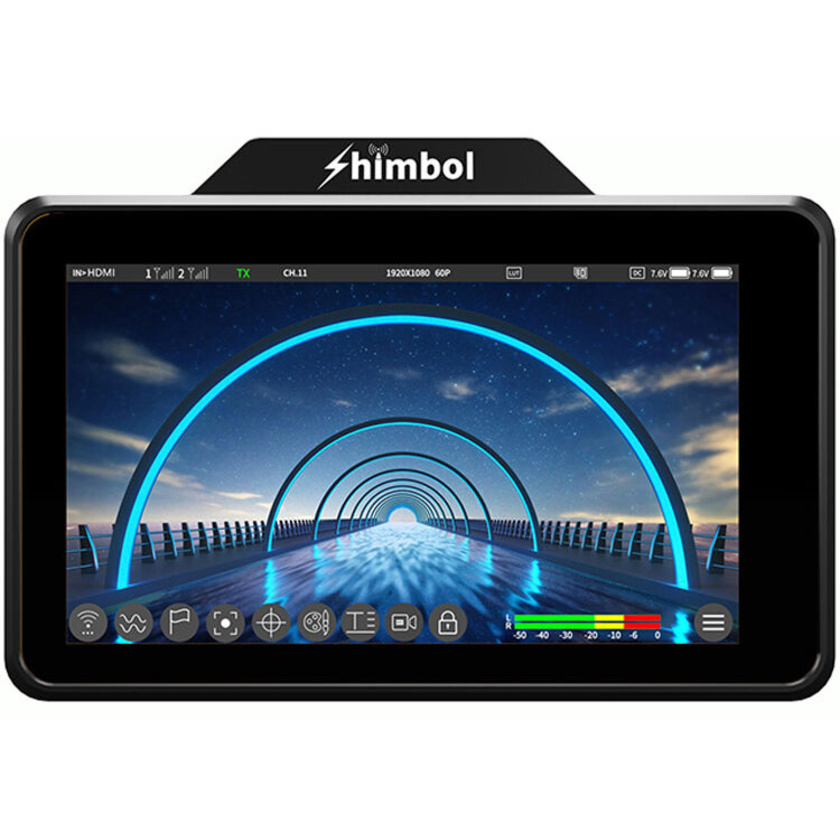

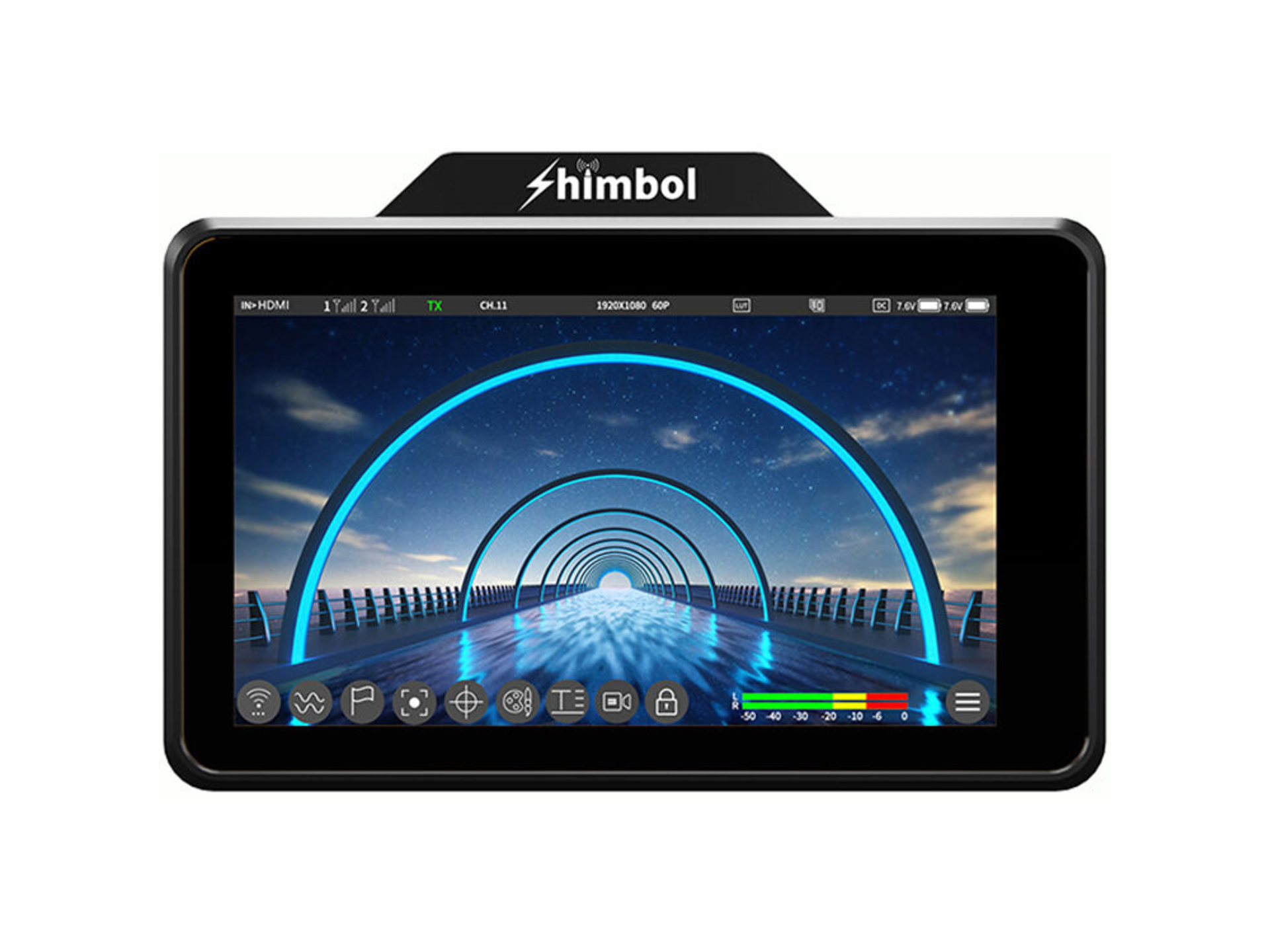

The Shimbol ZO600M 5.5" Wireless HDMI Touchscreen Recorder/Monitor offers an immersive viewing and capturing experience with support for up to 1080p60 video playback and the application of 3D LUTs. This versatile monitor can function as both a transmitter and receiver, seamlessly integrating with Shimbol wireless transmitter and receiver components. Additionally, it is capable of wirelessly transmitting video to your iPhone or iPad. Boasting a 5.5" touchscreen display with a resolution of 1920 x 1080, the ZO600M ensures a visually stunning experience. It is further equipped with convenient features including an HDMI 2.0 input, HDMI output, and a 3.5mm headphone jack for audio output. With a brightness level of 1000 cd/m², support for 3D LUTs, and the inclusion of a luma waveform, vectorscope, zoom, focus peaking, and other useful functions, this monitor provides extensive display options.
Shimbol ZO600M 5.5" 1080p60 Wireless HDMI Touchscreen Recorder/Monitor
In Stock with Supplier Usually ships in 2 - 4 weeks
Our Price
$519
AUD
In Stock with Supplier Usually ships in 2 - 4 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 4 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 4 weeks
Click & Collect
Features
- 1920 x 1080 Touchscreen Display
- Up to 1080p60 HDMI Video Input
- Up to 1080p60 Recording to microSD Card
- 1000 cd/m² Brightness
- 500' Wireless Range, 3D LUT Support
- Waveform, Vectorscope, Focus Peaking
Description
Specifications
| Key Specs | |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes |
| Video I/O | 1x HDMI 1.4a Input 1x HDMI 1.4a Output |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [Supports Recording] |
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery Type | 2x L-Series |
| Power Consumption | 8 W |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| Display | |
| Panel Type | LCD |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 400 ppi |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs / Outputs | |
| Video I/O | 1x HDMI 1.4a Input 1x HDMI 1.4a Output |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (16.8 VDC) Input 1x Barrel (0.8 A / 7.4 VDC) Output |
| Other I/O | 1x USB-C (Firmware) |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [Supports Recording] |
| File System Support | FAT32 |
| Wireless Range | 500' / 152.4 m |
| Frequency Range | 5.1 to 5.8 GHz |
| Latency | 80 ms |
| RF Power | 17 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac) |
| Bluetooth | No |
| Mobile App Compatible | Yes: iOS Only App Name: Shimbol |
| Format Support | |
| Video Format | HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 48 kHz |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
| Recording | |
| Pulldown Conversion | No |
| Camera Trigger | No |
| Pre-Roll Record | No |
| Encoding Formats | x H.264 |
| Closed Caption Support | No |
| Reference Input | No |
| Power | |
| Input Power | 7 to 16.8 VDC |
| Battery Type | 2x L-Series |
| Power Consumption | 8 W |
| Mounting | |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| General | |
| Environmental Resistance | No |
| Certifications | FCC, COE, RoHS, Kcc, TELEC |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Plastic |
| Dimensions | 5.9 x 4.1 x 1.2" / 151 x 103 x 29.5 mm |
| Weight | 10.58 oz / 300.00 g |
In The Box
- Shimbol ZO600M 5.5" 1080p60 Wireless HDMI Touchscreen Recorder/Monitor
