StarTech 12U Sliding Rotating Open Frame Network Rack

Product #84291 | SKU PORACK12U | Startech
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Save space in your office or server room
  • Keep your equipment cool and accessible
  • Save money on shipping

Description

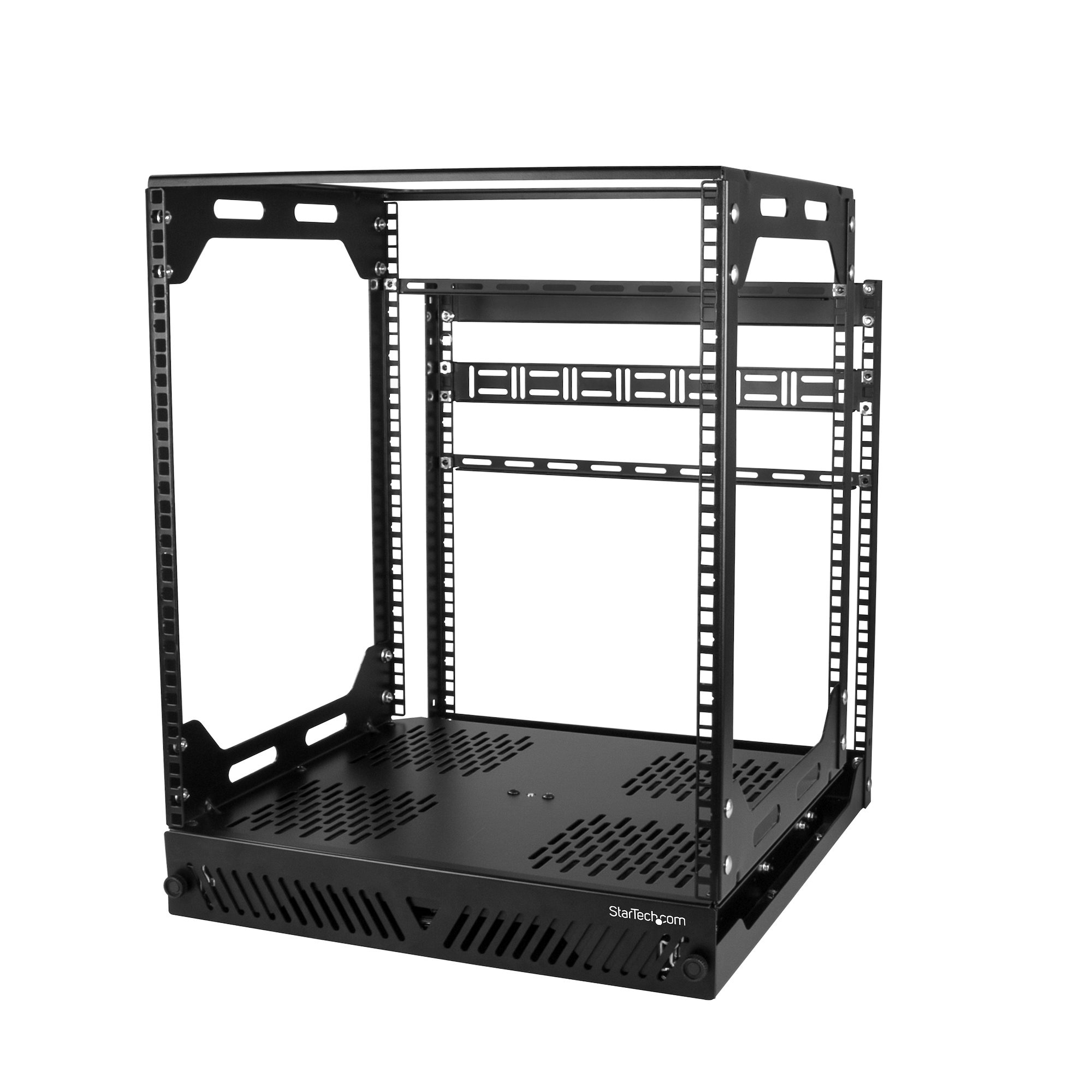

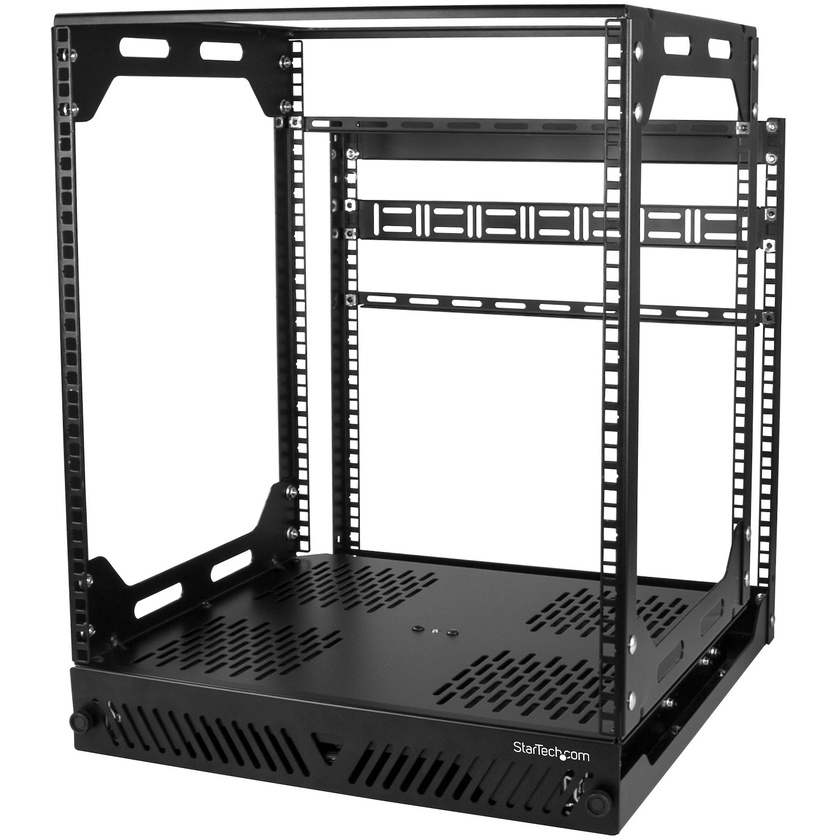

This StarTech 12U Sliding Rotating Open Frame Network Rack helps you save space while keeping your rack-mount equipment organized and accessible. The compact open-frame rack is easy to pull out and rotate, which makes it easy to install and access your equipment or perform maintenance when needed.

The rack supports a total load capacity of 125 lb. (56.7 kg).

Key Features:

  • UNIQUE SLIDE OUT & ROTATE DESIGN: 19" 4 post open frame network rack ideal for installation in built-in cabinet & easily slides out up to 18.7in. rotating up to 90 degrees for easy access to equipment
  • INTEGRATED CABLE MANAGEMENT: Keeps cables organized in this AV/Data/IT/Communications rack, and helps make pull-out access easy and tangle-free; cables can be routed down and under the rack if needed
  • TECH SPECS: Max. Mounting Depth 16.7 in. | Max. Extension Depth 40.5 in.| EIA/ECA-310-E Compliant | 125lb (56.7kg) Capacity | Cage Nuts & Screws incl.
  • Show more
  • EASY SHIPPING & ASSEMBLY: Pivoting Computer Equipment rack comes in a convenient flat-pack shipping form factor with an easy to assemble design that includes cage nuts & screws to mount your equipment

Key Features:

Save space in your office or server room

The rack helps you save valuable floor space. It’s designed for installation in small areas such as below a table or in a cabinet or cupboard. Its versatility makes this the perfect rack for storing your servers in a boardroom, small office/home office, restaurant or any place where space is at a premium.

Keep your equipment cool and accessible

For easy equipment installation and maintenance, the 12U server rack’s base is on sliding rails, which means it’s easier to access the back of your equipment. With its open-frame design, the rack not only maximizes accessibility but also offers unobstructed airflow to your equipment, providing passive cooling to keep your rack-mounted equipment running at optimal temperatures.

Save money on shipping

The rack comes in a flat-packed box, which reduces shipping volume and significantly lowers cost when compared to racks that ship fully assembled. Plus, because the rack is packaged efficiently, it’s easy to transport and store.

Specifications

Material Steel
Hardware
Wallmountable No
Mounting Rail Profile L-Shape
Special Features Built-in Cable Management
Easy Assembly
U-Markings
Mounting Hole Types Square (For Cage Nut)
Rack Type 4-Post
U Height 12U
Frame Type Open Frame
Industry Standards EIA/ECA-310-E
Packaging Information
Shipping (Package) Weight 58.7 lb [26.6 kg]
Flat Pack (Assembly Required) Yes
Package Length 24.6 in [62.5 cm]
Package Width 21.7 in [55.0 cm]
Package Height 8.7 in [22.0 cm]
Performance
Weight Capacity 125.3 lb [56.7 kg]
Physical Characteristics
Construction Material Steel
Color Black
Product Measurements
Product Length 22.4 in [56.8 cm]
Product Width 19.2 in [48.7 cm]
Product Height 24.2 in [61.5 cm]
Weight of Product 51.6 lb [23.4 kg]
Maximum Mounting Depth 16.7 in [42.5 cm]

In The Box

  • Sliding Tray
  • Top Bracket
  • 6 x Vertical Rails
  • Stabilizing Plate
  • Security Plate
  • 4 x Narrow Cable Managers
  • Cable Manager
  • 2 x Thumbscrews
  • 24 x Assembly Screws
  • 24 x Assembly Nuts
  • 48 x M5 Cage Nuts
  • 48 x M5 Screws
  • User Manual

Reviews

0.0 (no ratings yet)

Details

  • Product: StarTech 12U Sliding Rotating Open Frame Network Rack
  • Manufacturer: Startech
  • Model: PORACK12U
  • SKU: PORACK12U
  • RM Product #: 84291
