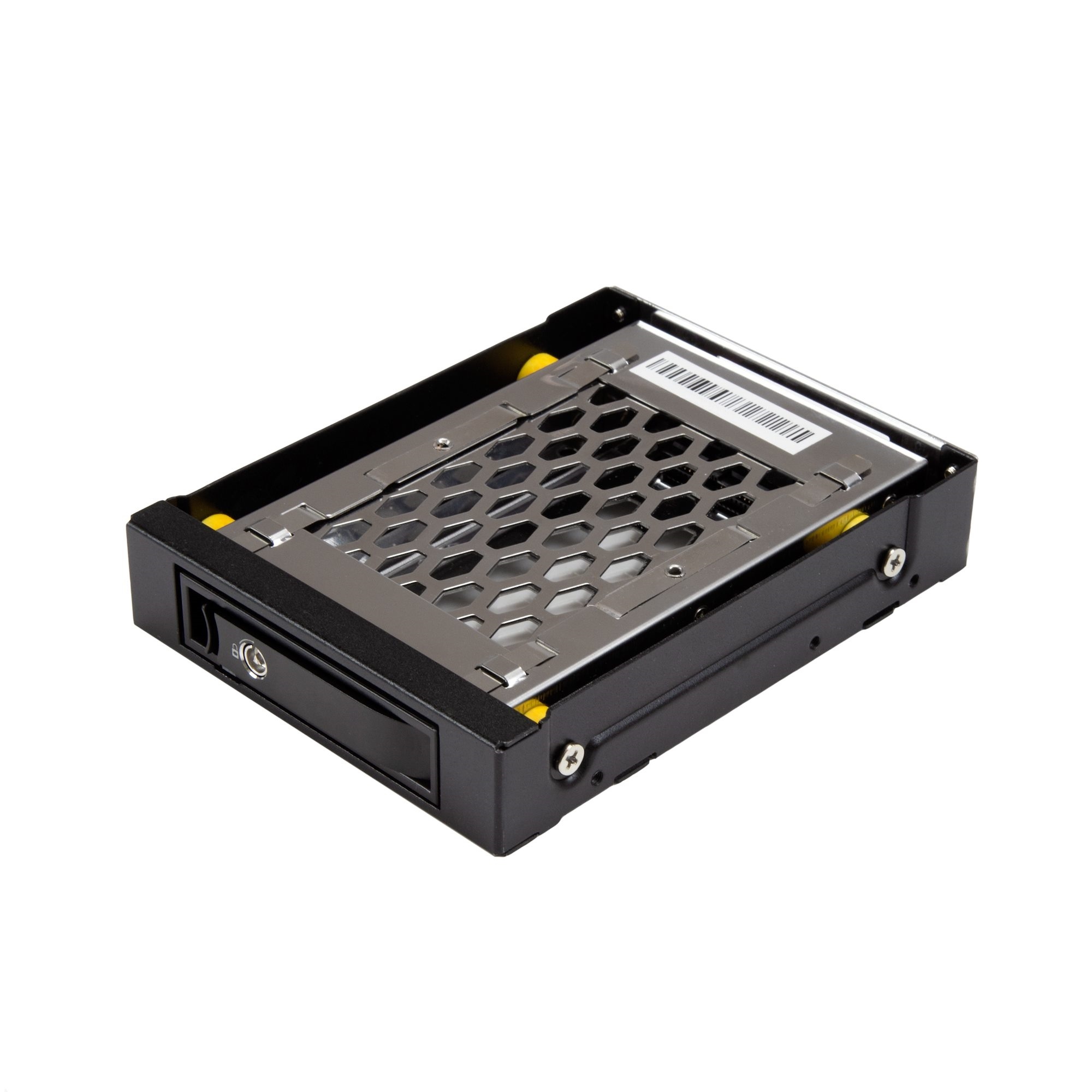

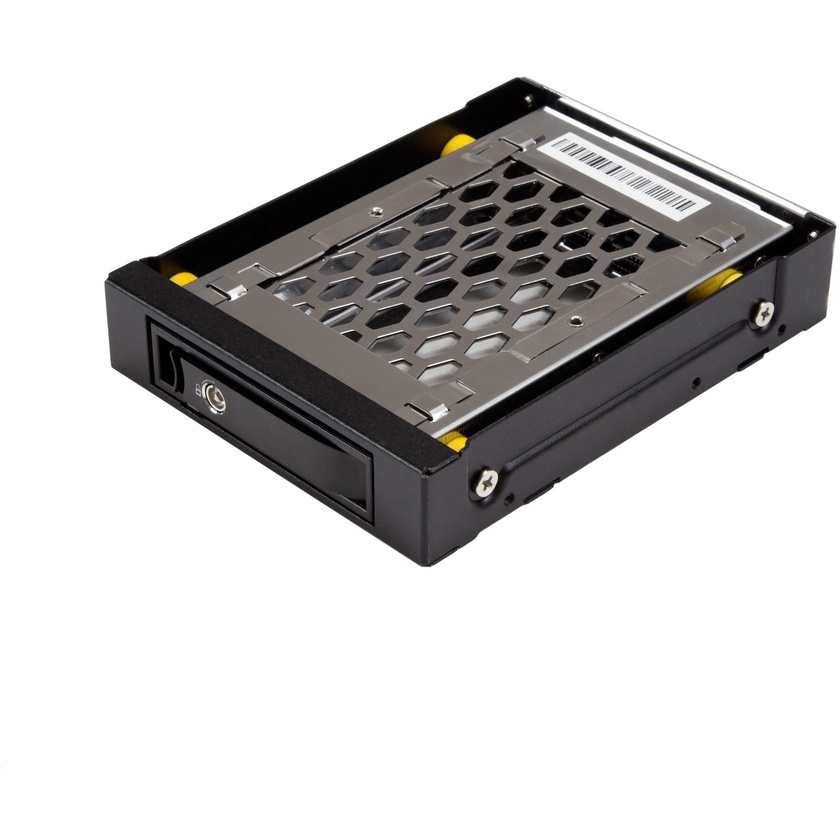

StarTech 2.5 SATA Drive Hot Swap Bay for 3.5in Bay

Product #84236 | SKU SATBP125VP | Startech
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Lockable, secure drive door
  • Supports one 2.5” SATA SSD/HDD with drive heights from 5-15 mm
  • Supports SATA I, II and III with file transfer speeds of up to 6 Gbps
  • Durable aluminum construction
  • Venting to optimize heat dissipation

Description

Increase the storage capabilities of your server or PC while protecting your data, with this StarTech 2.5 SATA Drive Hot Swap Bay for 3.5in Bay.

Key Features:

  • Hot swap drives between systems, using a 2.5” SATA drive in a 3.5” front bay
  • Four anti-vibration bumpers provide vibration protection to safeguard your data
  • Lockable, secure drive door
  • Supports one 2.5” SATA SSD/HDD with drive heights from 5-15 mm
  • Supports SATA I, II and III with file transfer speeds of up to 6 Gbps
  • Durable aluminum construction
  • Venting to optimize heat dissipation
  • NSS connector provides 50,000+ insertion rating for long-lasting performance
Hot swap drives easily

Turn the 3.5” front bay on your desktop computer or server into a hot-swap bay for 2.5" SATA SSD/HDD drives. Ideal for IT professionals, such as system administrators or computer operators, this mobile rack lets you quickly swap, replace, remove, or transport a drive between systems or locations. It saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection

The 2.5” SATA drive hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. It features four anti-vibration bumpers, to protect your drive against vibration damage. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive

Fast data transfer

To maximize the speed and performance of your drives, the mobile rack supports SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

Specifications

Connector
1 - Drive Connectors SFF-8482 (29 pin, Data & Power, Internal SAS)
1 - Host Connectors SATA Data & Power Combo (7+15 pin)
Environmental
Operating Temperature -20°C to 70°C (-4°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 0% to 95% (non-condensing) at 25°C
Hardware
Interface SATA
Front Door Key Lock Yes
Number of Drives 1
Drive Size 2.5in
Compatible Drive Types SATA
Drive Installation Removable
Number of 2.5 inch bays 1
Indicators
1 - LED Indicators Drive power and activity
Packaging Information
Package Length 6.7 in [16.9 cm]
Package Width 4.9 in [12.4 cm]
Package Height 2.0 in [50.0 mm]
Shipping (Package) Weight 15.1 oz [429.0 g]
Performance
Maximum Data Transfer Rate 6 Gbps
Type and Rate SATA III (6 Gbps)
Port Multiplier No
Hot Swap Capability Yes
Insertion Rating 50,000

In The Box

  • mobile rack
  • drive tray
  • 2 x keys
  • SATA data cable
  • 4 x drive-mounting screws
  • 4 x mobile-rack mounting screws
  • quick-start guide

Reviews

0.0 (no ratings yet)

Details

  • Product: StarTech 2.5 SATA Drive Hot Swap Bay for 3.5in Bay
  • Manufacturer: Startech
  • Model: SATBP125VP
  • SKU: SATBP125VP
  • RM Product #: 84236
