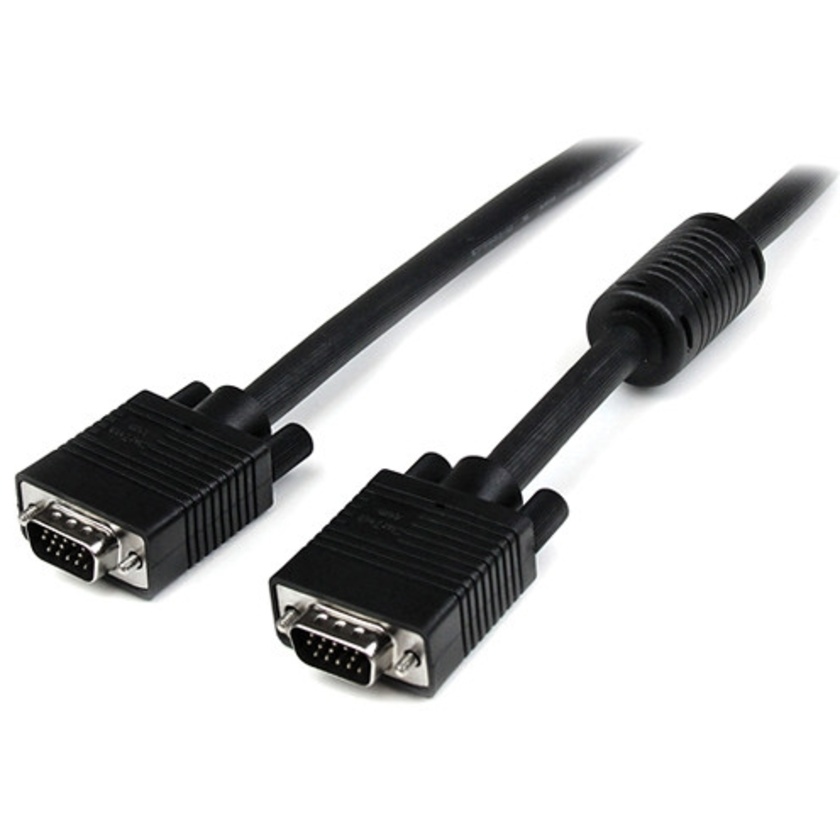

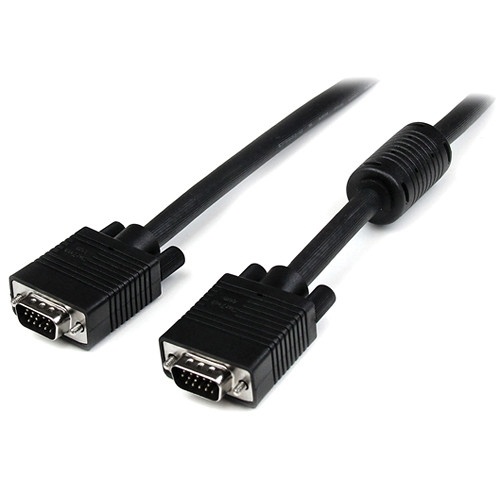

StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable (1.8m, Black)

Product #77759 | SKU MXT101MMHQ | Startech
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Triple Coaxial & Twisted-Pair Wire
  • 75Ω Impedance
  • VGA Connectors with Moulded PVC
  • Supports Resolution up to 1920 x 1200
  • 28 AWG Wire Gauge

Related Products


Description

The StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable (1.8m, Black) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. The durably constructed coaxial VGA video cable eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables. It also delivers superior EMI interference protection by using ferrite cores near the connector ends.

Key Features:

  • The VGA cable features triple coaxial and twisted-pair wire for crystal clear display
  • It's a durably constructed cable, with HD15 connectors
  • Impedance matched at 75Ω for full brightness and vibrant picture colour from your VGA monitor
  • The VGA connectors feature moulded PVC strain relief
  • You can now replace a worn-out or missing VGA monitor cable with this coax VGA cable
  • It supports high resolution up to 1920 x 1200
  • You can connect a high resolution display to a desktop PC or video switch at a distance of up to 1.8m

Specifications

General
Connector 1 1 x DE-15/DB-15 Male
Connector 2 1 x DE-15/DB-15 Male
Cable Length 1.8m
Conductor Material Nickel Plated
Jacket Type Polyvinyl Chloride (PVC)
Outer Diameter 0.4" / 10.16 mm
Shielding Aluminium-Mylar Braid, Foil
Weight 3.8 lb / 1.72 kg
Electrical
Maximum Resolution Support 1920 x 1200
Wire Gauge 28 AWG
Environmental
Certifications CMG, RoHS, UL2919, as per Manufacturer
Operating Temperature 32 to 140°F / 0 to 60°C
Storage Temperature -4 to 176°F / -20 to 80°C
Operating Humidity 0 to 80%

In The Box

  • StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable (1.8m, Black)
  • 2 x Nuts

Reviews

0.0 (no ratings yet)

Details

  • Product: StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable (1.8m, Black)
  • Manufacturer: Startech
  • Model: MXT101MMHQ
  • SKU: MXT101MMHQ
  • RM Product #: 77759
  • Cable Connector: VGA (15-pin; D-Sub DB15) Male
  • Cable Connector: VGA (15-pin; D-Sub DB15) Male
  • Length Meters: 15.2 m
  • Length Feet: 50 ft
