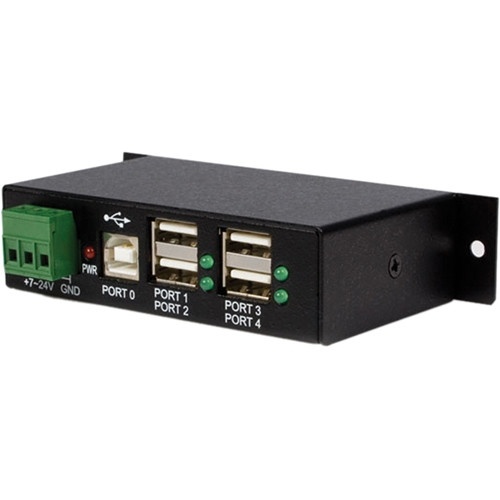

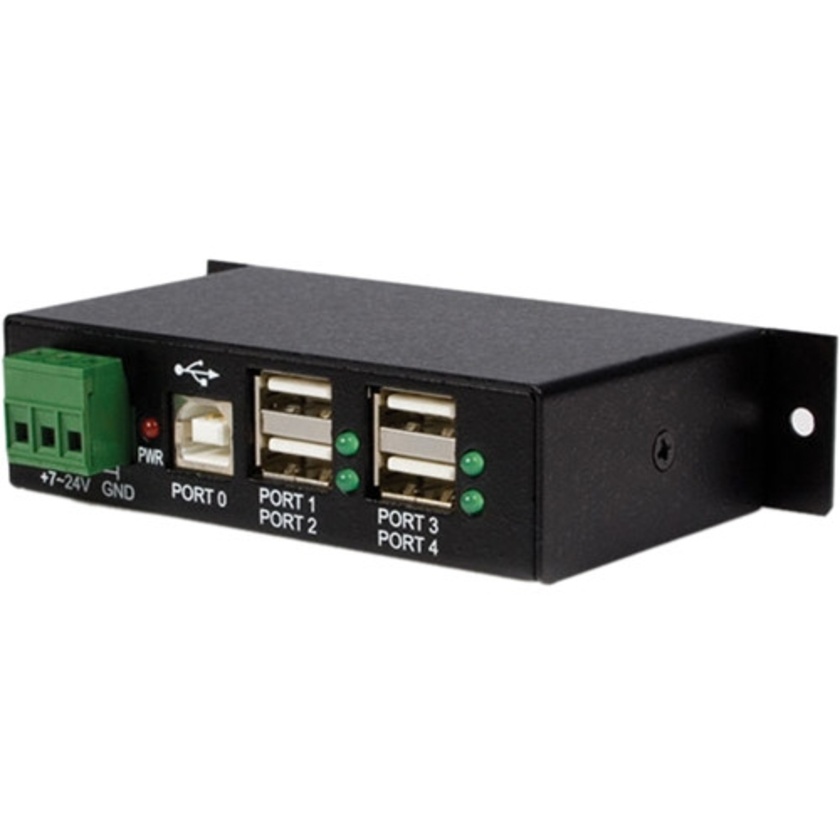

StarTech Mountable 4-Port Rugged Industrial USB Hub

Product #77895 | SKU ST4200USBM | Startech
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • High-Speed USB 2.0 Compliant
  • Supports Transfer Rate of up to 480 Mb/s
  • Metal Chassis
  • Supports Multiple Mounting Methods
  • 3 Wire Terminal Block Connector

Description

The black StarTech Mountable 4-Port Rugged Industrial USB Hub can be wall mounted or installed onto a DIN rail for convenient access to its four female USB ports. It thus provides you a work area, server room or industrial area with USB 2.0 connectivity.

The 4-port hub supports high-speed USB 2.0 data transfer rate of up to 480 Mb/s and is backwards compatible with USB 1.1 specifications. It can be powered through the host USB bus or self-powered using a 3-wire terminal block connector (7- 24 VDC).

Key Features:

  • The industrial USB hub is USB 2.0 compliant and supports transfer rate of up to 480 Mb/s
  • An all metal chassis and surface mounting or DIN rail mounting options makes it versatile for almost any environment
  • Optional external terminal block (DC power connector) can ensure full power to all four USB ports simultaneously
  • Locations where a USB hub needs to be securely mounted to a surface, such as a wall or under a desk
  • Environments subject to large temperature variances or where physical damage may occur, such as within a factory

Specifications

Hardware
Interface USB 2.0
Ports 4
Enclosure Type Steel
Connectors
External Ports 1 x terminal block (3-wire)
1 x USB-B (4-pin) female
4 x USB-A (4-pin) female
Performance
Maximum Data Transfer Rate 480 Mb/s
MTBF 193,317.8 hours
Software
OS Compatibility OS independent; no software or drivers required
Requirements
System and Cable Requirements Any computer with a USB 2.0 port
Indicator
LED Indicators 1 x power
Power
Input Voltage 7 ~ 24 VDC
Environmental
Operating Temperature 32 to 131°F (0 to 55°C)
Storage Temperature -4 to 185°F (-20 to 85°C)
Certifications COE, FCC and RoHS
Physical Characteristics
Dimensions (L x W x H) 4.5 x 2.3 x 1.0" (114.3 x 58.4 x 25.4 mm)
Weight 14.5 oz (410 g)

In The Box

  • StarTech Mountable 4-Port Rugged Industrial USB Hub
  • 6.5' (2m) USB Cable
  • DIN Mounting Rails

Reviews

0.0 (no ratings yet)

Details

  • Product: StarTech Mountable 4-Port Rugged Industrial USB Hub
  • Manufacturer: Startech
  • Model: ST4200USBM
  • SKU: ST4200USBM
  • RM Product #: 77895
