The TP-Link 2-Port Gigabit 24W, 48 VDC Passive PoE Adapter simultaneously supplies power and transmits data to a passive PoE device. TL-POE4824G offers a convenient wall-mounting brackets to be easily installed on a wall.

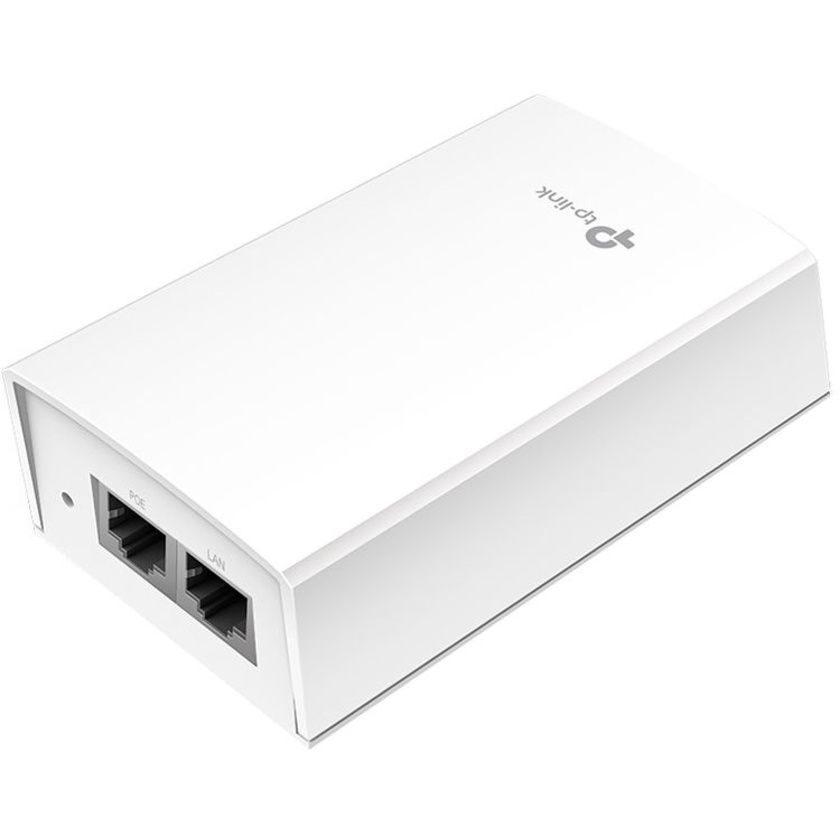

TP-Link 2-Port Gigabit 24W, 48 VDC Passive PoE Adapter
This product is no longer available
Features
- Adds Passive PoE to Network
- 1 x Gigabit Ethernet PoE Input
- 1 x Gigabit Ethernet PoE Output
- Supports up to 24W, 48 VDC Power
- Works with Select PoE Devices
- Up to 328.1' Range
Description
Specifications
| Type | Injector |
| General | |
| Inputs/Outputs | 1 x RJ45 Gigabit Ethernet PoE (Input) 1 x RJ45 Gigabit Ethernet PoE (Output) |
| Shielded I/O | Yes |
| Electrical | |
| PoE Power | 48 VDC, 24 W (Output) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
| Certifications | FCC, COE, RoHS *as per Manufacturer |
| Physical | |
| Maximum Operating Distance | 328.1' / 100 m |
| Environmental Protection | None |
| LED Indicators | Yes |
| Wall Mountable | Yes, with Included Hardware |
| Dimensions | 2.3 x 4.3 x 1.5" / 58.4 x 109.2 x 38.1 mm |
In The Box
- TP-Link 2-Port Gigabit 24W, 48 VDC Passive PoE Adapter
- Power Cord
- Wall Mounting Kit
Reviews
(no ratings yet)Details
- Product: TP-Link 2-Port Gigabit 24W, 48 VDC Passive PoE Adapter
- Manufacturer: TP-Link
- Model: TL-POE4824G
- SKU: TL-POE4824G
- RM Product #: 107381
