The TP-Link TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch provides compatibility with a variety of devices. With support for PoE devices like IP cameras, access points, and IP phones, as well as non-PoE wired devices like PCs, printers, and IPTV, this switch offers a versatile solution. It adheres to the 802.3af/at PoE+ standard, delivering up to 30W on each PoE port. The switch boasts a total 123W PoE power budget for its eight Gigabit PoE+ ports, making it suitable for various applications including surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

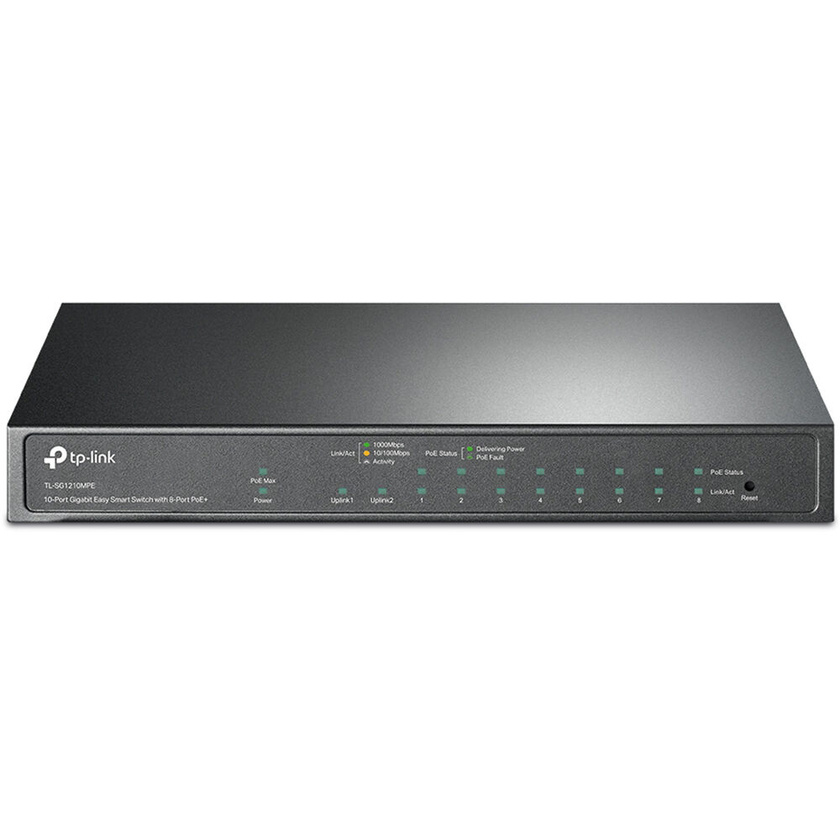

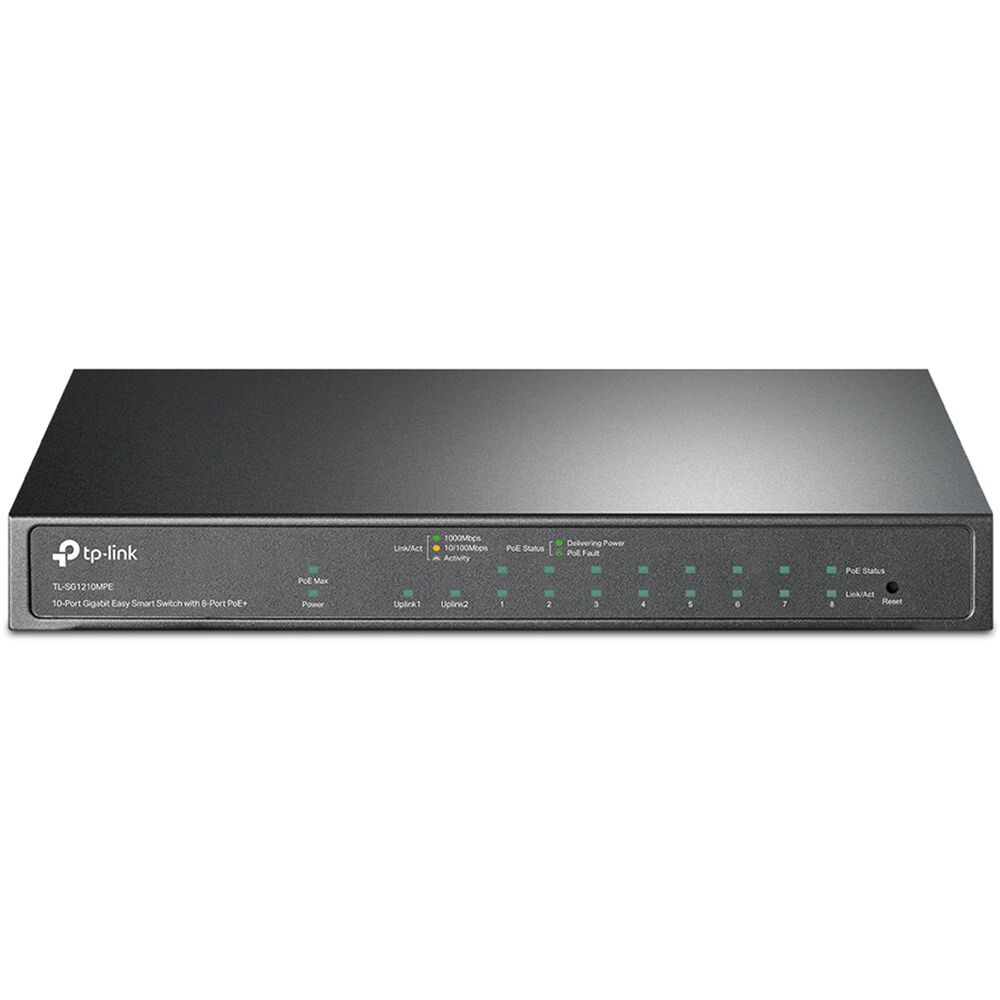

TP-Link TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch
This product is no longer available
Features
- 9 x Gigabit Ethernet Ports
- 8 x PoE+ Compliant Ports
- 1 x Gigabit RJ45 / SFP Combo Port
- 20 Gb/s Switching Capacity
- 14.88 Mpps Forwarding Rate
- Desktop Mountable Design
Description
Specifications
| Key Specs | |
| Inputs/Outputs | 8x RJ45 Gigabit Ethernet PoE+ 1x RJ45 Gigabit Ethernet 1x RJ45/SFP Combo Gigabit Ethernet |
| PoE Power Budget | 123 W |
| Interfaces | |
| Inputs/Outputs | 8x RJ45 Gigabit Ethernet PoE+ 1x RJ45 Gigabit Ethernet 1x RJ45/SFP Combo Gigabit Ethernet |
| Protocols | |
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping Link Aggregation Port Mirroring |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 16,000 Bytes |
| MAC Address Table Size | 4K |
| VLAN Groups | 32 |
| VLAN IDs | 4000 |
| Security | |
| Security Features | Storm Control |
| Standards | |
| Supported IEEE Standards | 802.3ab, 802.3af, 802.3at, 802.3i, 802.3p, 802.3q, 802.3u, 802.3x, 802.3z |
| Performance | |
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
| Electrical | |
| Power Draw | 141.54 W (Max) |
| DC Input Power | 53.5 VDC at 2.4 A |
| PoE Power Budget | 123 W |
| PoE per Port | 30 W |
| Power Supply Type | External |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 95% |
| General | |
| Cooling System | Passive |
| Material of Construction | Metal |
| Dimensions | 8.2 x 5 x 1" / 209 x 126 x 26 mm |
In The Box
- TP-Link TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch
- Power Adapter
- Rubber Feet
Reviews
(no ratings yet)Details
- Product: TP-Link TL-SG1210MPE 10-Port Gigabit PoE+ Compliant Managed Network Switch
- Manufacturer: TP-Link
- Model: TL-SG1210MPE
- SKU: TL-SG1210MPE
- RM Product #: 112451
