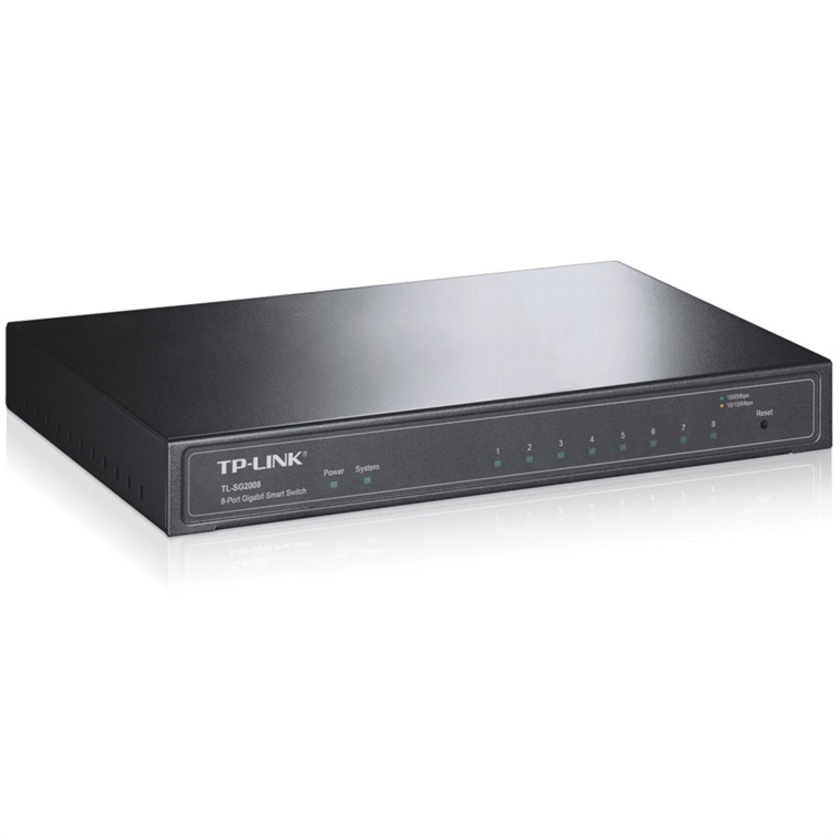

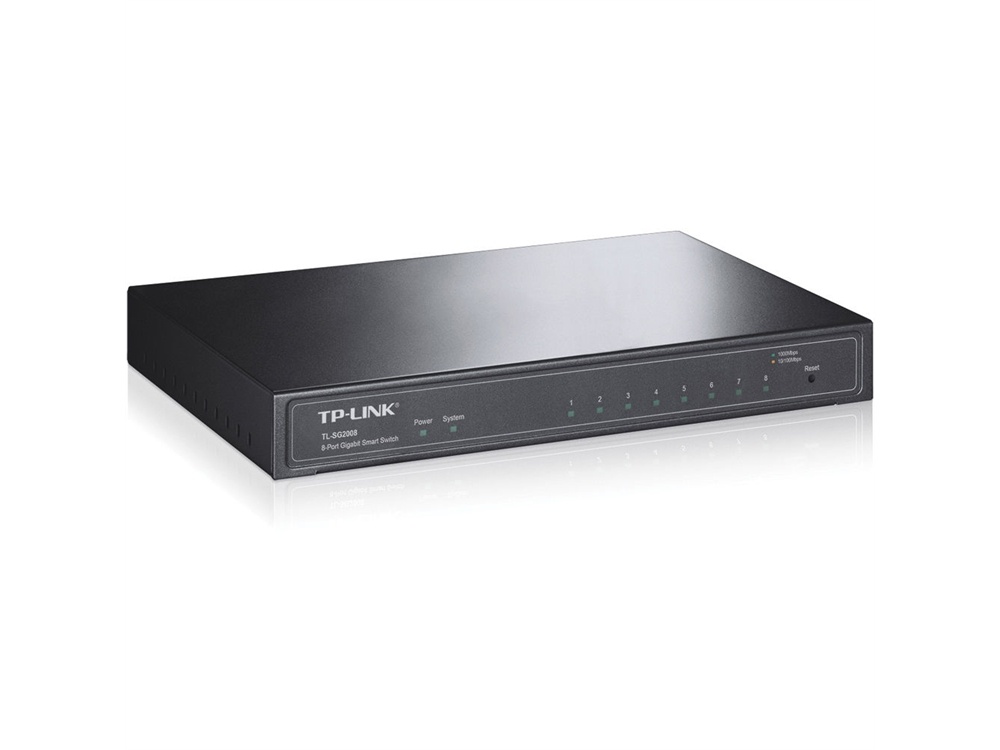

With a variety of Layer 2 network features, the TL-SG2008 8-Port Gigabit Smart Switch from TP-Link gives network administrators complete control over a variety of network functions. With loop back detection, cable diagnostics and IGMP snooping, this switch is capable of ensuring traffic is managed efficiently and effectively. The eight Gigabit Ethernet ports offer a fast, reliable wired connection while the advanced QoS (Quality of Service) feature set makes it simple to designate priority traffic to ensure bandwidth intensive tasks have the necessary network resources.
Features
Layer 2 Features
• Static Link Aggregation/ Link Aggregation Control Protocol (LACP) • Up to 512 VLANs simultaneously(out of 4K VLAN IDs) • STP/RSTP/MSTP • IGMP Snooping
Quality of Service
• 4 priority queues • Support IEEE 802.1P • DSCP QoS • Rate limit feature
Security Strategies
• Access Control List (L2~L4 ACL) • Port Security • Storm Control • SSL and SSH encryptions
Management
• Web-based GUI • Command Line Interface (Telnet) • SNMP v1/v2c/v3 • RMON (1, 2, 3, 9 group)
Specifications
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p |
Interface | 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
Fan Quantity | Fanless |
Power Consumption | Maximum: 6.42 W (220 V/50 Hz) |
Power Supply | 100~240 VAC, 50/60 Hz |
Bandwidth | 16 Gb/s |
MAC Address Table | 8k |
Packet Forwarding Rate | 11.9 Mpps |
Jumbo Frame | 9216 Bytes |
Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
L2 Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop-back detection 802.3x Flow Control |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
Security | SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control |
Management | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP and Web System Diagnose: VCT SYSLOG & Public MIBS |
Certifications | COE, FCC, RoHS |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -40 to 158°F / -40 to 70°C |
Operating Humidity | 10 to 90% non-condensing |
Storage Humidity | 5 to 90% non-condensing |
Dimensions | 8.2 x 4.9 x 1.0" / 209 x 126 x 26 mm |
Weight | Not specified by manufacturer |
