Product #20537
SKU TF-2BE0500TFR

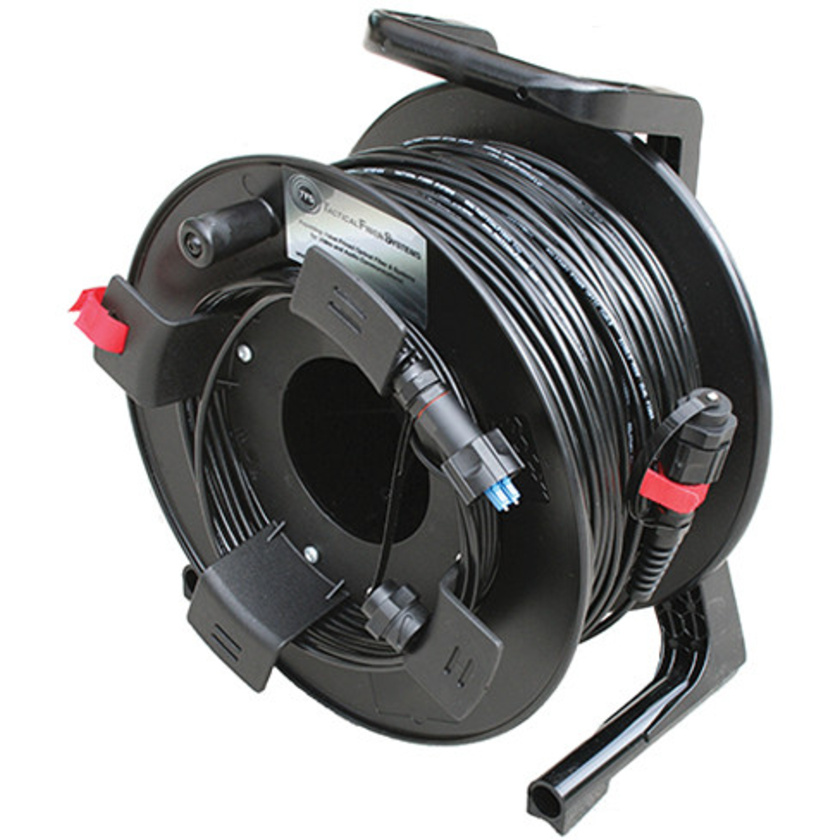

Tactical Fiber Systems Fibre Cable on Reel with BullsEye Connectors (500 ft)
Product Features
- DuraTAC - Stainless Steel Under Kevlar
- Stronger, Half as Thin, Half as Light
- Protects Against Wear/Tear and Rodents
- Anodised Aluminium BullsEye Connectors
- Waterproof Dust Covers
Customer Reviews
(no ratings yet)
Thanks for your rating!
Email me when stock arrives
Overview
This 2-fibre, single-mode Tactical Fibre Systems Cable & Reel, 152 m in length, features TFS's DuraTAC stainless steel armoured inner core and TFS BullsEye anodised aluminium connectors.
DuraTAC is TFS's solution to wear and tear that ultimately cuts through the Kevlar that surrounds the fibre cores in tactical cables. DuraTAC comprises a stainless steel armoured inner core underneath the Kevlar, providing protection against stepping, cutting, and rodents. Other than being stronger, DuraTAC cables are also about half as thin and half as light, so you get more cable on your reel.
TFS BullsEye connectors are equipped with waterproof dust covers and together with the DuraTAC cable offer good protection against contamination and damage.
Key Features
Fibre and Reel Features
- DuraTAC stainless steel armoured tactical fibre is up to 10 times stronger than ordinary fibre cables without compromising flexibility
- Highly flexible construction allows for multiple deployments
- High impact and crush resistance
- Durable in high-traffic areas
- Performance in wide temperature range
- Storage Drum extensions for breakout and easy access
- Adjustable Cam-lock drag brake
- Direct Crank Rewind
- Handle permanently attached to disc
Applications
- Remote video production and broadcasting
- Field deployment in abusive environments
- Temporary installation of critical communications lines where quick retrieval and reuse is necessary
- High-traffic areas
- Security and sensing applications
- Installations in harsh environments available
Specifications
| Length | 152 m |
| Core Diameter | 9.2 ±0.4 μm at 1310 nm 10.4 ±0.8 μm at 1550 nm |
| Cladding Diameter | 125 ±1 μm |
| Maximum Attenuation | 0.4 dB/km at 1310 nm 0.3 dB/km at 1550 nm |
| Outer Diameter Cable Sheathing | 4 mm |
| Allowable Bending Radius | 20D mm (dynamic) 10D mm (static) |
| Allowable Tensile | 400 N (long term) 700 N (short term) |
| Crush Resistance | 655 N/cm (long term) 825 N/cm (short term) |
| Inside Material | Kevlar reinforced Stainless steel armoured tubing |
| Material | SS304 |
| Stainless Steel Diameter | 3 mm |
| Operating Temperature | -56 to 85°C |
| Installation Temperature | -20 to 85°C |
Reviews
(no ratings yet)Give it a quick rating:
Thanks for your rating!
Write a review
- Product: Tactical Fiber Systems Fibre Cable on Reel with BullsEye Connectors (500 ft)
- Manufacturer: Tactical Fibre Systems
- Model: TF-2BE0500TFR
- SKU: TF-2BE0500TFR
- RM Product #: 20537
- Length Feet: 500 ft
- Length Meters: 152 m
- Cable Connector: TFS BullsEye
- Cable Connector: TFS BullsEye
Tactical Fiber Systems Fibre Cable on Reel with BullsEye Connectors (500 ft)
