Canon EOS R5 C Mirrorless Cinema Camera + Anton/Bauer Titon Base Kit

Product #111905 | SKU R5C+BASEKIT | Canon
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • Two Cameras in One Body: Photo + Cinema
  • 45MP Stills, Full-Frame 8K CMOS Sensor
  • Photo/Video Switch Changes Settings Menu
  • JPEG/C-RAW, 12-Bit Cinema RAW Light
  • Dual Pixel CMOS AF with Eye Detection

Description

Canon

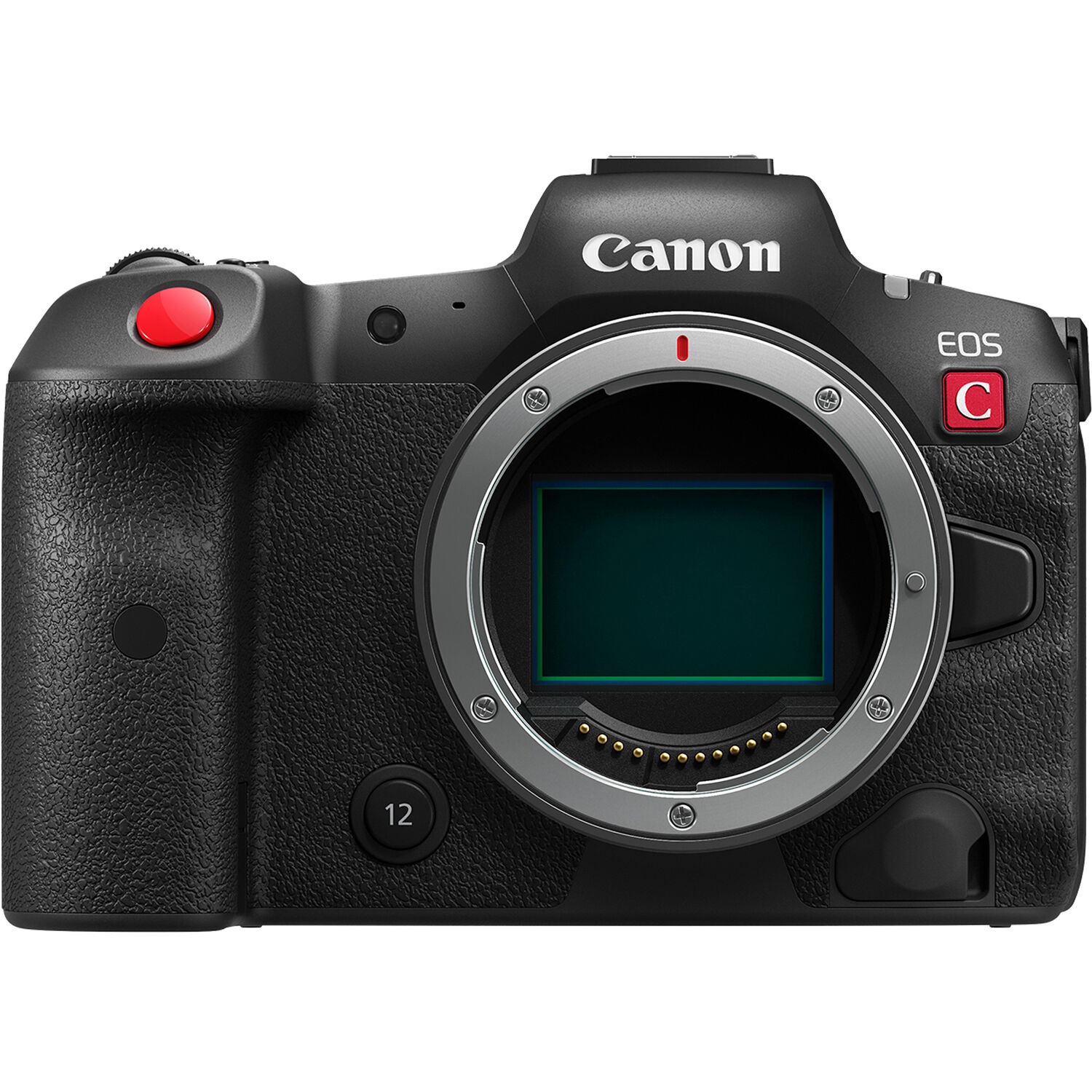

OS R5 C Mirrorless Cinema Camera + Anton/Bauer Titon Base Kit

The Canon EOS R5 C is a professional hybrid cinema camera, designed for solo operators who require a one-stop solution for their production needs. It combines the professional filmmaking features expected from a Cinema EOS camera with the powerful photographic capabilities of the EOS R System.

Mounted on a tripod, gimbal, or drone, the Canon EOS R5 C allows you to shoot whatever you want, however you want, and should be at the heart of your next production. Whether you're shooting weddings, music, virtual reality, or a cinematic travel documentary, the Canon EOS R5 C is ready for anything.

Note: 8K 60p recording requires connection to an external power source via either the combination of DR-E6C DC Coupler + CA-946 Power Adapter (RF and EF lenses via EF-EOSR Lens Adapter); or PD-E1 USB Power Adapter (RF lenses only). These accessories are available for purchase separately.

Key Features:

  • Two Cameras in One Body: Photo + Cinema
  • 45MP Stills, Full-Frame 8K CMOS Sensor
  • Photo/Video Switch Changes Settings Menu
  • JPEG/C-RAW, 12-Bit Cinema RAW Light
  • Dual Pixel CMOS AF with Eye Detection
  • CFexpress Type-B and SD UHS-II Slots
  • Dual-Slot Record, Unlimited Record Time
  • Timecode DIN Port, Multi-Function Shoe
  • 4-Channel Audio Record with XLR Adapter
  • 13 Reassignable Buttons
A True Hybrid System

Sharing its photo specifications with the EOS R5, the EOS R5 C incorporates additional professional video features, creating a high-performance workhorse capable of capturing high quality 45MP images, as well as shoot up to 8K 60p video.

8K Video Support

The EOS R5 C is the first Cinema EOS System camera to provide internal 8K 60p recording. This allows for highly flexible workflow, such as 4K cropping from 8K footage without any loss in quality. The R5 C can also record 8K in the versatile MP4 format, as well as allow for lighter proxy video recording in 8K for more efficient editing and previewing.

Enhanced Video Performance

Combining the photo performance of the EOS R5 as well as the video performance of a Cinema EOS camera, the EOS R5 C includes many additional video features to allow for a better user experience. A new timecode terminal, a wider selection of recording format options and an expanded video interface brings new life to the 5 series camera.

Dual Card Slots For Simultaneous RAW Recording

The R5 C boasts dual card slots, allowing simultaneous recording. Options in different file formats, resolutions, and colour sampling can be assigned according to workflow requirements.

Newly Developed Internal Cooling Fan

The R5 C has adopted a newly developed, heat dissipating design with a built-in cooling fan system that keeps internal temperature from rising, along with airflow separate from the main board. Dramatic improvement of the thermal design achieves long hours of extended recording, even in high-quality 8K 60p video.

Compatibility with Canon VR RF lens

High-resolution VR images and video can be shot by attaching the Canon RF 5.2mm F2.8 L Dual Fisheye, a stereoscopic RF mount fisheye lens designed for VR movie shooting, to the R5 C.

The Anton/Bauer Titon Base Kit for Canon LP-E6-Powered Cameras offers the dependable power of a slim and lightweight Titon lithium-ion battery. Ideal for fast-paced work, sports activities, and live streaming, this compact battery efficiently powers your 14.4V camera, light, and accessories without adding unnecessary weight.

Equipped with an LCD screen, this battery displays the remaining battery time precisely down to the minute. It features three P-Tap outputs, each with the ability to charge other devices, as well as a fast-charging 5V, 2A USB Type-A output. With a capacity of 68Wh, the Titon Base battery can continuously provide up to 8A of current. To charge it, simply use the Anton Bauer P-Tap charger connected to one of the P-Tap ports. Additionally, it includes a convenient integrated quick release plate with a 1/4"-20 mounting screw, enabling swift mounting onto your rig.

Specifications

Imaging
Lens Mount Canon RF
Lens Communication Yes, with Autofocus Support
Sensor Resolution Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Sensor Type 36 x 24 mm (Full-Frame) CMOS
Pixel Pitch 5.5 µm
Image Stabilisation Digital (Video Only)
Built-In ND Filter None
Internal Filter Holder No
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Shutter, Focal Plane Shutter
Shutter Speed Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 0.5 Seconds
Bulb/Time Mode Bulb Mode
ISO Sensitivity Photo
100 to 51,200 in Manual Mode (Extended: 50 to 102,400)
100 to 25,600 in Auto Mode (Extended: 200 to 51,200)
Metering Method Centre-Weighted Average, Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Manual, Programme, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range -3 to 20 EV
Continuous Shooting Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay
Internal Video Capture
Raw Recording Cinema RAW Light
8192 x 5464 at 23.976/24.00/25/29.97/50/59.94 fps [1030 to 2570 Mb/s]
5952 x 3140 at 23.976/24.00/29.97/30/50/59.94 fps [544 to 1360 Mb/s]
2976 x 1570 at 23.976/24.00/25/29.97/30/50/59.94 fps [138 to 344 Mb/s]
Recording Modes Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [2600 Mb/s]
AVC-Intra/AVC-LongG/XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/59.94p/100p/119.88p [160 to 810 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/100p/119.88p [160 to 810 Mb/s]
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [50 to 310 Mb/s]
HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
AVC-LongG/MP4 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98p/24.00p/25p/29.97p [400 to 540 Mb/s]
UHD 8K (7680 x 4320) at 23.98p/25p/29.97p [400 to 540 Mb/s]
DCI 4K (4096 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p/100p/119.88p [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
AVC-LongG/MP4 4:2:0 8-Bit
DCI 4K (4096 x 2160) at 23.98PsF/24.00p/25p/29.97p/50p/59.94p/119.88p [100 to 225 Mb/s]
UHD 4K (3840 x 2160) at 23.98p/24.00p/25p/29.97p/50p/59.94p [100 to 225 Mb/s]
DCI 2K (2048 x 1080) at 23.98p/24.00p/25p/29.97p/50p/59.94p [35 to 50 Mb/s]
Full HD (1920 x 1080) at 23.98p/24.00p/29.97p/50p/59.94p [35 to 50 Mb/s]
HD (1280 x 720) at 50p/59.94p [8 to 12 Mb/s]
Sensor Crop Modes Super35 / APS-C
5952 x 3184
4096 x 2160
3840 x 2160
Super16
2976 x 1570
Gamma Curve Canon Log 3, HDR-HLG, HDR-PQ, Rec2020, Rec709
Recording Limit Unlimited
Video System NTSC/PAL
External Video Capture
External Recording Modes 4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94p
UHD 4K (3840 x 2160) up to 59.94p
IP Streaming None
Still Image Capture
Image Sizes 3:2 Raw
8192 x 5464
5088 x 3392
3:2
8192 x 5464
5808 x 3872
4176 x 2784
2400 x 1600
4:3
7280 x 5464
5152 x 3872
3715 x 2784
2112 x 1600
16:9
8192 x 4608
5808 x 3264
4176 x 2344
2400 x 1344
1:1
5456 x 5456
3872 x 3872
2784 x 2784
1600 x 1600
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Image File Format JPEG, Raw, HEIF
Bit Depth 10-Bit
Interface
Media/Memory Card Slot Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x Micro-HDMI Output
Audio I/O 1 x 3.5 mm TRS Stereo Mic/Line Input
1 x 3.5 mm TRS Stereo Headphone Output
Power I/O 1 x USB Type-C (9 VDC at3 A) Input
Other I/O 1 x USB Type-C USB 3.2 / 3.1 Gen 2 (Shared with Power Adapter)
Wireless Bluetooth Control
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Wi-Fi Video Output, Control
Global Positioning (GPS, GLONASS, etc.) None
Monitor
Size 3.2"
Resolution 2,100,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD
Viewfinder
Type Built-In Electronic (OLED)
Size 0.5"
Resolution 5,790,000 Dot
Eye Point 23 mm
Coverage 100%
Magnification Approx. 0.76x
Dioptre Adjustment -4 to +2
Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
Autofocus Points Phase Detection: 1053
Autofocus Sensitivity -6 to +20 EV
Built-In Flash No
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%
General
Battery Type Canon LP-E6N
Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)
Accessory Mount 1 x Intelligent Hot Shoe
Dimensions (W x H x D) 142.2 x 101.6 x 111.8 mm
Weight 680 g (Body Only)
770 g (With Battery, Recording Media)
Anton/Bauer Titon Base Kit for Canon LP-E6-Powered Cameras
Chemistry Lithium-Ion
Battery Capacity 68 Wh
Output Voltage 14.4 VDC
Maximum Load 8 A (Peak)
Accessory I/O 3 x D-Tap / P-Tap Output Regulated
1 x USB-A Output 5 VDC Regulated
USB Output 5 V, 2 A
Dimensions (W x H x D) 4 x 1.1 x 5.6" / 10.1 x 2.9 x 14.2 cm
Weight 1.1 lb / 520 g
Key Specs
Charger Compatibility D-Tap/P-Tap
Charger Power Source AC Power (Plug Included)
Charger Power I/O 1x Interchangeable USA Type-A / Euro Type-F / UK Type-G Plug
 • 100 to 240 VAC, 50 / 60 Hz
1x Built-In Cable with D-Tap/P-Tap Male Output
 • 16.7 VDC at 1.5 A
Battery Charger
Charger Compatibility D-Tap/P-Tap
Charger Power Source AC Power (Plug Included)
Charger Power I/O 1x Interchangeable USA Type-A / Euro Type-F / UK Type-G Plug
 • 100 to 240 VAC, 50 / 60 Hz
1x Built-In Cable with D-Tap/P-Tap Male Output
 • 16.7 VDC at 1.5 A
Indicator LED
Connector 1 P-Tap
Connector 2 LP-E6 Dummy Battery
Input Voltage 14.4 V
Output Voltage Variable per Camera (Regulated)
Length 20" / 50.8 cm

In The Box

  • Canon EOS R5 C Mirrorless Cinema Camera
  • LP-E6NH Battery Pack
  • LC-E6 Battery Charger
  • SS-1200 Shoulder Strap
  • IFC-100U Interface Cable
  • Cable Protector
  • R-F-5 Camera Cover
  • Anton/Bauer Titon Base Kit for Canon LP-E6-Powered Cameras
  • Anton/Bauer 68Wh Titon Base Battery
  • Anton/Bauer P-Tap Charger
  • Anton/Bauer Regulated P-Tap to LP-E6 Dummy Battery Cable (20")

Reviews

0.0 (no ratings yet)

Details

  • Product: Canon EOS R5 C Mirrorless Cinema Camera + Anton/Bauer Titon Base Kit
  • Manufacturer: Canon
  • Model: R5C+BASEKIT
  • SKU: R5C+BASEKIT
  • RM Product #: 111905
  • Bodies/Kits: Body Only
  • Sensor Size: Full Frame
  • Resolution: 45
  • Slot Support: CFexpress Type B
