D-Box (Power Distribution) allows for user selectable power outputs including 2 pin LEMO compatible connector, 4 pin LEMO compatible connector, 4 pin Hirose, 3 pin Fischer, D-Tap, and USB. Allows for up to 5 simultaneous outputs with a maximum draw of 10A limited by an easily accessible fuse. Left side panel opens to service fuse and to disconnect and remove connector panels.

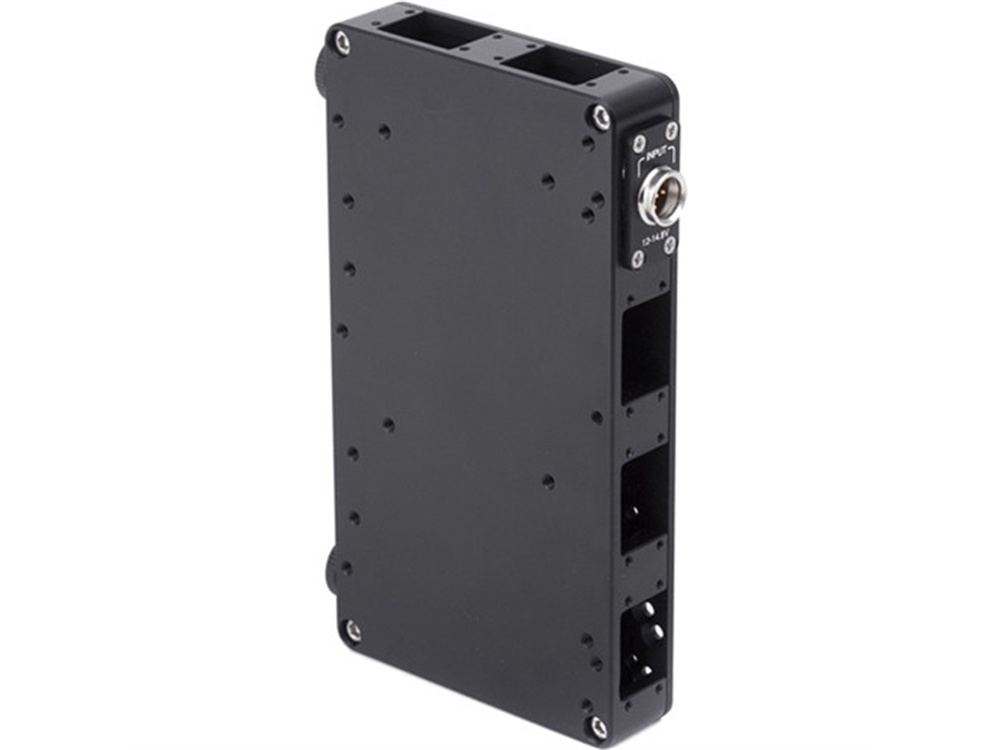

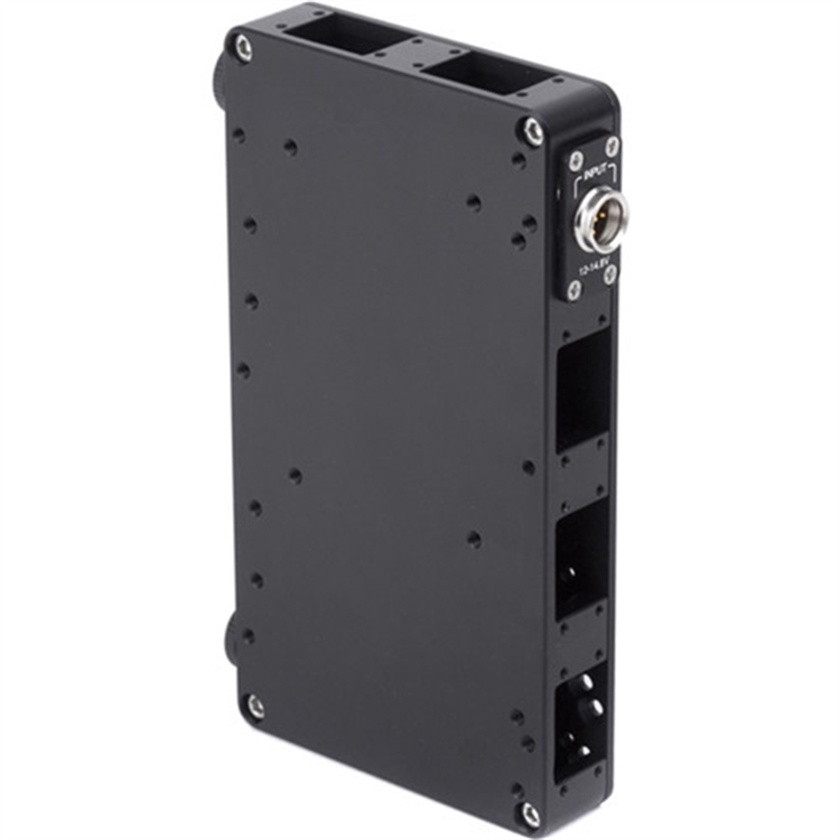

The D-Box (D-Tap, Base Unit) comes standard with one Mini 4 Pin XLR input and allows 5 selectable outputs. Attaches between a V-Mount or Gold Mount plate and wherever it was mounted before. Power is taken through an included D-Tap to Mini XLR pigtail cable.
Choose from any of the below (sold separately):
- 2 pin LEMO compatible connector
- 4 pin LEMO compatible connector
- 4 pin Hirose
- 3 pin Fischer
- D-Tap
- USB
- Blank
Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.
The bottom of the D-Box has (3) 1/4-20 holes which can attach directly to our Rod Clamp (15mm LW), Rod Clamp (15mm Studio), and Rod Clamp (19mm). For an adjustable mount system, use the Battery Slide or Recorder Slide paired with the same Rod Clamps listed above.
